Transformer 16VA 230V 2x15V 2x534mA
Varenummer:
103-226
Varekode: BVEI5414143
Vægt: 417 g
0 stk.
på lager
Specifikationer
| Produkt | transformator |
|---|---|
| Strøm, max. (sekundærvikling) | 2x534mA |
| Sekundær | 2x15V |
| Primær | 230V |
| AC Effekt, max. | 16 VA |
Gruppe:
D7568
HAHN Transformers

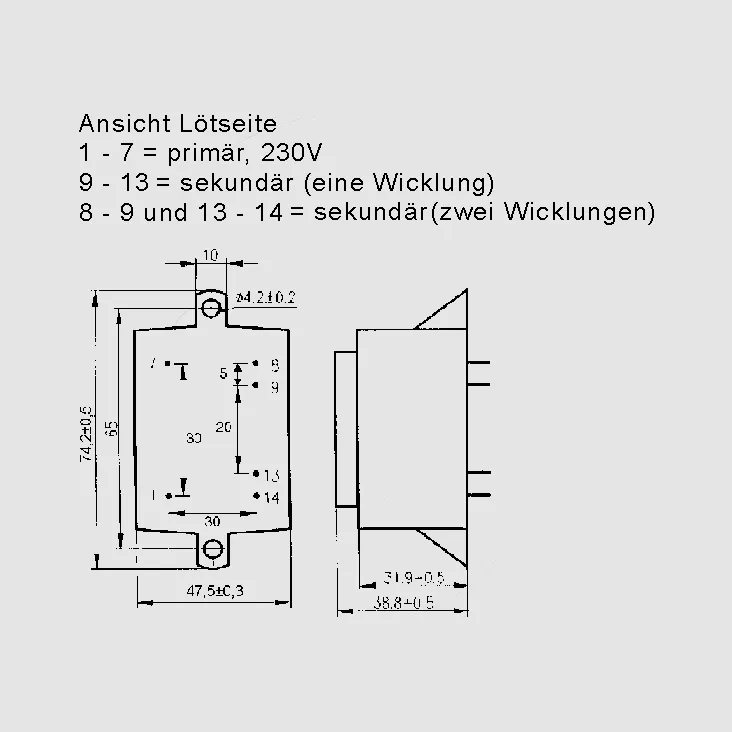

Core: EI54
Non Short-Circuit Proof
Output: 16VA
Input Voltage: 230V
HAHN Transformers
Core: EI54
Non Short-Circuit Proof
Output: 16VA
Input Voltage: 230V
| Features |
| • Winding of double coated copper wire for better insulation, vacuum casted, two chambers • Connections for PCB use |
 |
| Technical Specifications |
| |
| Temperature Resistance Class: | Ta 70/B |
| End Temperature in Standard Use: | 120°C |
| Permissible Overtemperature2): | 50K |
| Primary Voltage (50/60Hz): | 230V AC |
| Power, Max. (Ta 70/B)1): | 16VA |
| Test Voltage: | 4kV/50Hz |
| No-Load Voltage (According to VDE 0570): | 1,5 x UN sec |
| 1) Taking into Account the Indicated Temperature Resistance Class, 2) At 70°C Ambient Temperature | |
| |
| Approvals |
 0570,  10 |
|
| Additional Products |
| Orders of 100 pieces on request, delivery time approx. 5 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
HAHN GmbH & Co. KG |
| http://www.hahn-trafo.com |
|
