Transformer 2,6VA 230V 2x15V 2x87mA
Varenummer:
103-197
Varekode: BVEI3042048
Vægt: 102 g
0 stk.
på lager
Specifikationer
| Produkt | transformator |
|---|---|
| Strøm, max. (sekundærvikling) | 2x87mA |
| Sekundær | 2x15V |
| Primær | 230V |
| AC Effekt, max. | 2.6 VA |
Gruppe:
D7417
HAHN Transformers

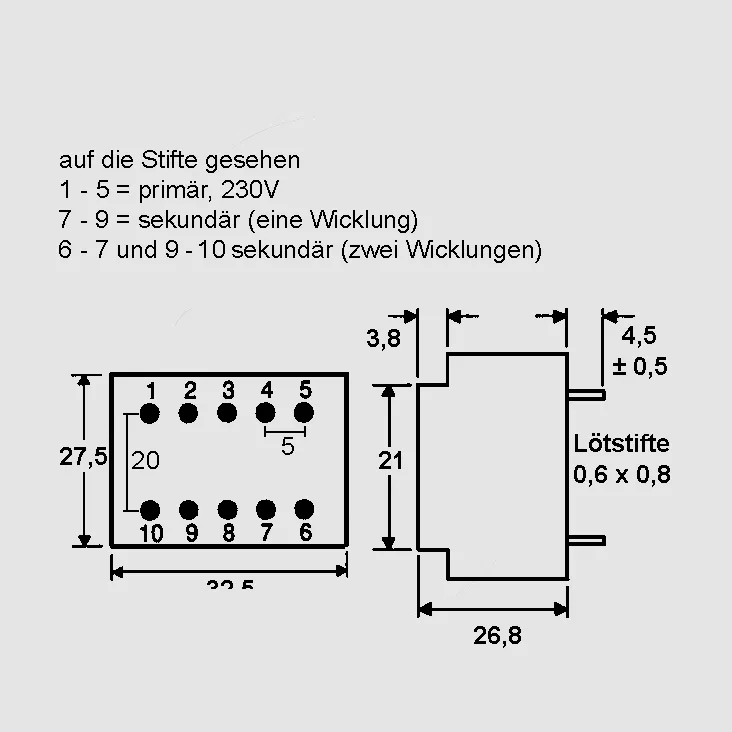

Core: EI30
Short-Circuit Proof
Output: 2,6VA
Input Voltage: 230V
HAHN Transformers
Core: EI30
Short-Circuit Proof
Output: 2,6VA
Input Voltage: 230V
| Features |
| • Winding of double coated copper wire for better insulation, vacuum casted, two chambers • Connections for PCB use |
 |
| Technical Specifications |
| |
| Temperature Resistance Class1): | Ta 40/F |
| End Temperature in Case of Short Circuit, Max2): | 190°C |
| End Temperature in Standard Use: | 140°C |
| Permissible Overtemperature3): | 100K |
| Primary Voltage (50/60Hz): | 230V AC |
| Performance, Max. (Ta 40/F)2): | 2,6VA |
| Test Voltage: | 4kV/50Hz |
| No-Load Voltage (According to VDE 0570): | 2 x UN sec |
| 1) The Maximum Permissible Continuous Ambient Temperature Applies in the Event of Short-Circuit, 2) Taking into Account the Indicated Temperature Resistance Class, 3)At 40°C Ambient Temperature | |
| |
| Approvals |
 0570,   10Part BVEI3042048 without approval |
|
| Additional Products |
| Orders of 100 pieces on request, delivery time approx. 5 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
HAHN GmbH & Co. KG |
| http://www.hahn-trafo.com |
|
