Transformer 1,5VA 230V 6V 250mA
Varenummer:
103-172
Varekode: BVEI3022020
Vægt: 76 g
2 stk.
på lager
Specifikationer
| Produkt | transformator |
|---|---|
| Sekundær | 6V |
| Strøm, max. (sekundærvikling) | 250mA |
| Primær | 230V |
| AC Effekt, max. | 1.5 VA |
HAHN Transformers

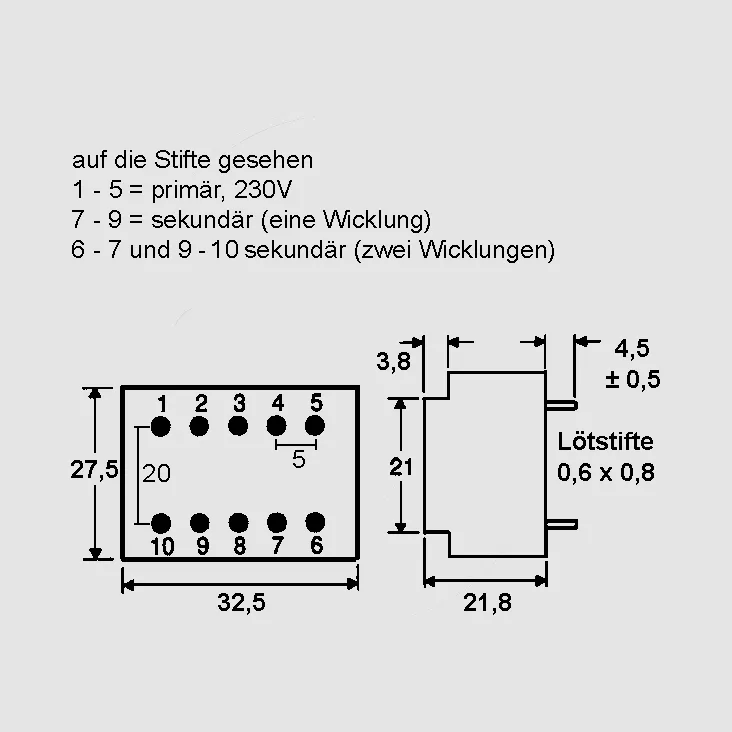

Core: EI30
Short-Circuit Proof
Output: 1,5VA
Input Voltage: 230V
| Features |
| • Winding of double coated copper wire for better insulation, vacuum casted, two chambers • Connections for PCB use |
 |
| Technical Specifications |
|
|
| Temperature Resistance Class1): | Ta 70/F |
| End Temperature in Case of Short Circuit, Max2): | 190°C |
| End Temperature in Standard Use: | 140°C |
| Permissible Overtemperature3): | 70K |
| Primary Voltage (50/60Hz): | 230V AC |
| Power, Max. (Ta 70/F)2): | 1,5VA |
| Test Voltage: | 4kV/50Hz |
| No-Load Voltage (According to VDE 0570): | 2 x UN sec |
| 1) The Maximum Permissible Continuous Ambient Temperature Applies in the Event of Short-Circuit, 2) Taking into Account the Indicated Temperature Resistance Class, 3) At 70°C Ambient Temperature | |
|
|
| Approvals |
 0570,   10 |
|
