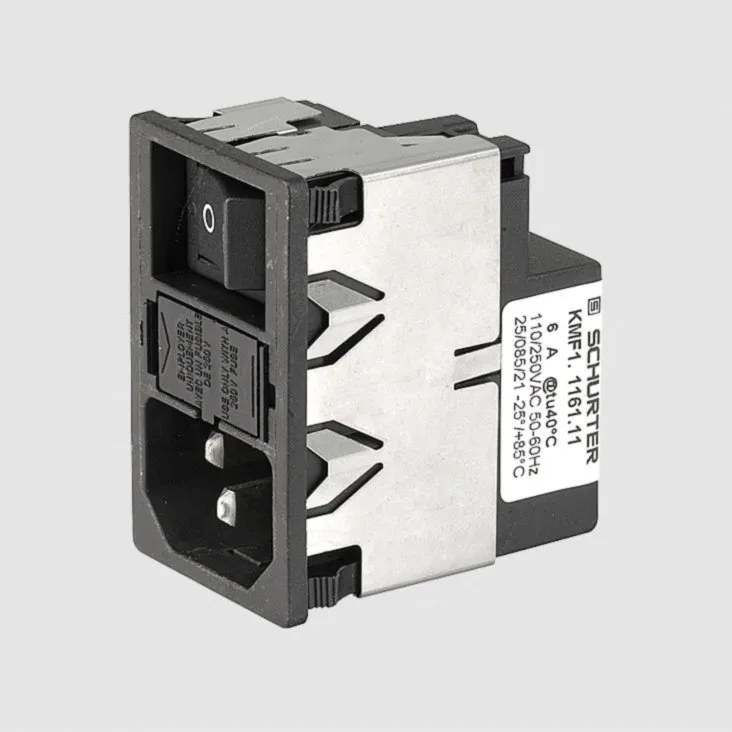

Line Filter IEC Plug Switch Fuse KMF 6A
Varenummer:
103-157
Varekode: KMF1-1161-11
Vægt: 72 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem mandag d. 2/11
Gruppe:
D3285

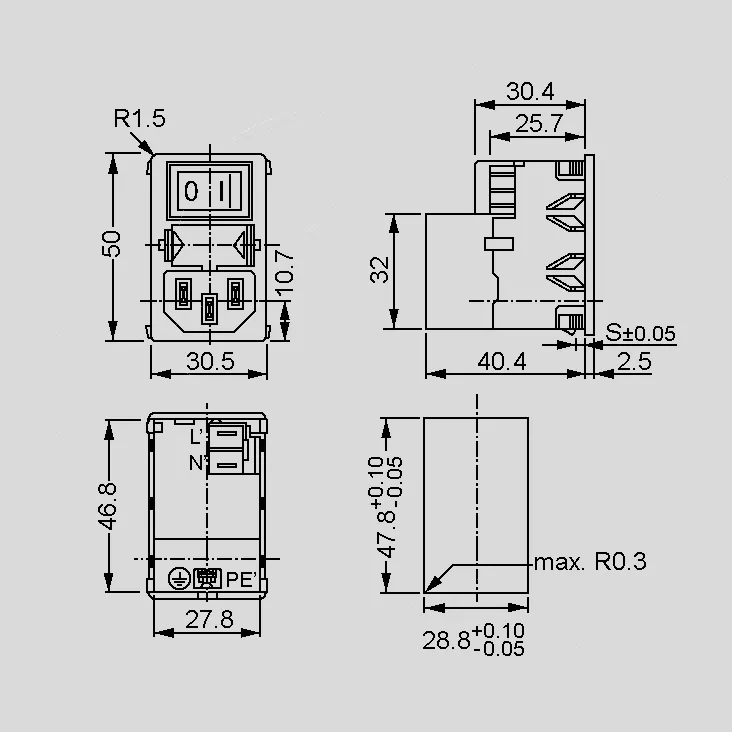

SCHURTER RFI Suppression Filters with IEC/CEE Plug, Fuse Holder and Switch
Series: KMF
In Metal Housing
SCHURTER RFI Suppression Filters with IEC/CEE Plug, Fuse Holder and Switch
Series: KMF
In Metal Housing
| Features |
| Filter built in a metal housing with integrated power line connector, fuse holder and 2-pole, non-illuminated line switch Fuse drawer for two fuses 5x20mm (must be ordered seperately) For PCB mounting and faston plug terminal 4,8x0,8mm added Snap-in mounting |
 |
| Technical Specifications |
| |
| Rated Voltage: | 125/250V, 50/60Hz |
| Dielectric Strength, 2s | |
| Line To Ground: | >2,3kVDC |
| Line To Line: | >1,7kVDC |
| Temperature Range: | -25...+85C |
| Climatic Category: | HPF (25/085/21) |
| Protection Class Front Side: | IP40 |
| Ratings Rocker Switches: | 16 (4)A/250V AC |
| Inrush Current | |
| Capacitive 3...4s: | 100A |
| Rated Current: | 5A |
| |
| Part Nr. | IR | L | CX | CY |
| [A] | [mH] | [nF] | [nF] | |
| KMF1-1111-11 | 1 | 2x11 | 47 | 2,2 |
| KMF1-1121-11 | 2 | 2x4 | 47 | 2,2 |
| KMF1-1141-11 | 4 | 2x1,6 | 47 | 2,2 |
| KMF1-1161-11 | 6 | 2x0,7 | 47 | 2,2 |
| KMF1-1191-11 | 8 | 2x0,4 | 47 | 2,2 |
| IR = Rated Current, at 40C, L = Inductance | ||||
| ||||
| Note |
| Fuse drawer FT4301-1401 must be ordered seperately, see product group F5563. |
|
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.schurter.de |
|
