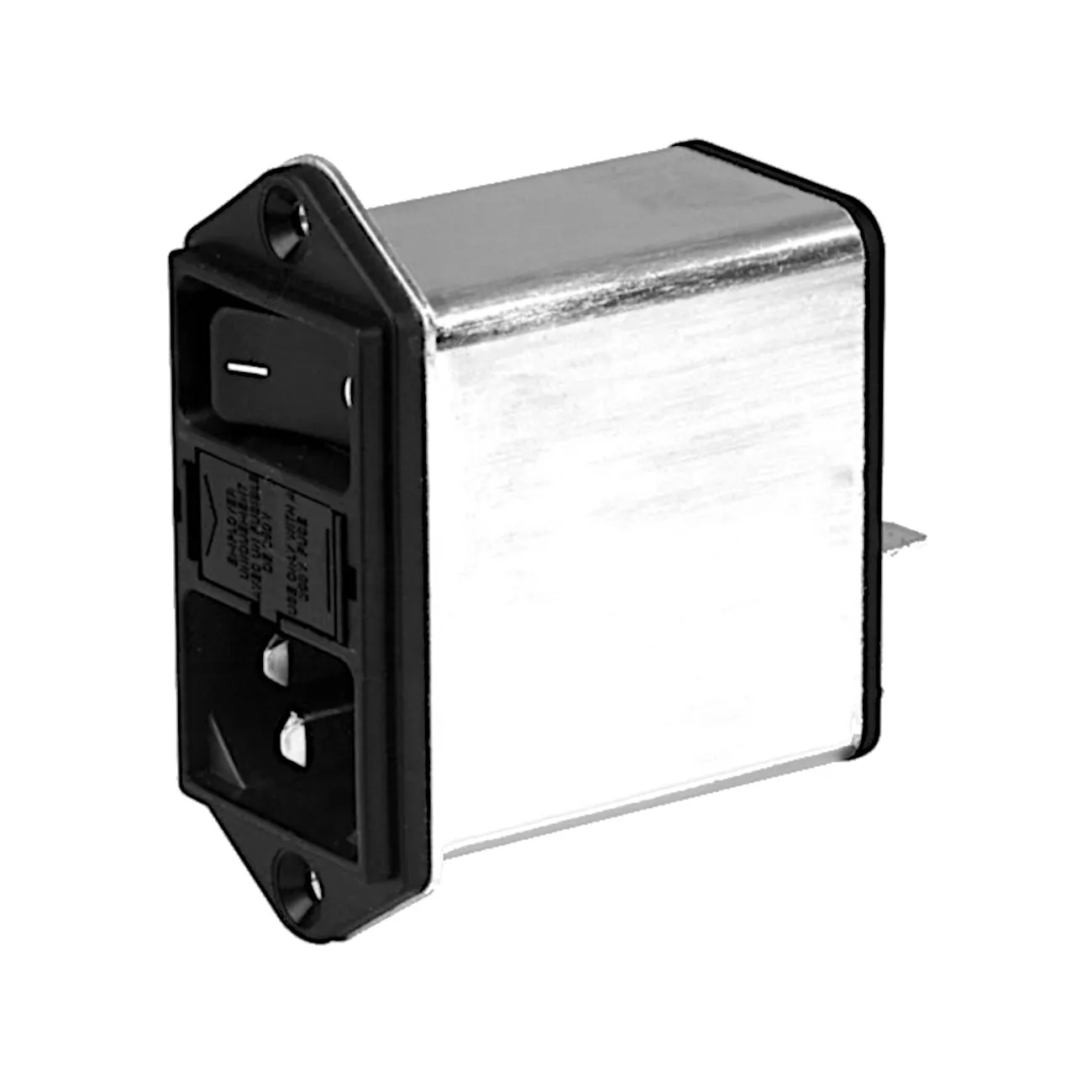

Filter IEC Plug Switch 2xFuse DD12 6A
Varenummer:
103-147
Varekode: DD12-6121-111
Vægt: 107 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem mandag d. 2/11
Gruppe:
D3281
SCHURTER RFI Suppression Filters with IEC/CEE Plug, Fuse Holder and Switch
Series: DD12
In Metal Housing
SCHURTER RFI Suppression Filters with IEC/CEE Plug, Fuse Holder and Switch
Series: DD12
In Metal Housing
| Features |
| Filter built in a metal housing with integrated power line connector and fuse holder Fuse holder for two fuses 5x20mm Faston plug terminal 6,3x0,8mm Screw-on from front side |
 |
| Technical Specifications |
| |
| Rated Voltage: | 250V, 50/60Hz |
| Dielectric Strength, 60s | |
| Line To Ground: | 2,7kV DC |
| Line To Line: | 1,7kV DC |
| Temperature Range: | -25...+85C |
| Climatic Category: | HPF (25/085/21) |
| |
| Part Nr. | IR | L | CX | CY | R |
| [A] | [mH] | [nF] | [nF] | [MW] | |
| DD12-4121-111 | 4 | 2x1,5 | 100 | 2,2 | 1 |
| DD12-6121-111 | 6 | 2x0,8 | 100 | 2,2 | 1 |
| DD12-8121-111 | 8 | 2x0,6 | 100 | 2,2 | 1 |
| IR = Rated Current, at 40C, L = Inductance | |||||
| |||||
| Note |
| Fuse drawer FT4301-1401 must be ordered seperately, see product group F5563. |
|
| Approvals |
  10 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.schurter.de |
|
