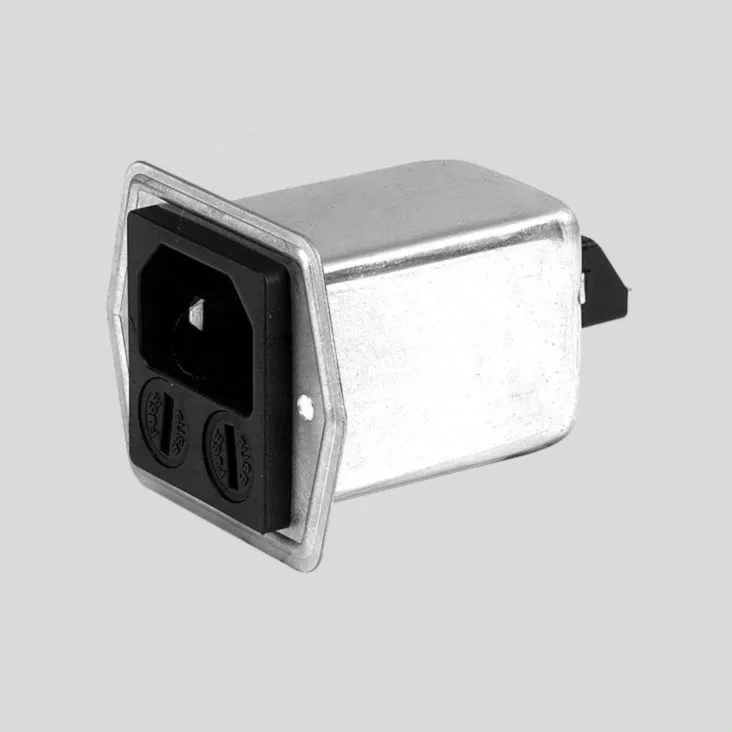

Line Filter IEC Plug Fuse 5707 IP65 1A
Varenummer:
103-136
Varekode: FIL5707-0101-312
Vægt: 97 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem mandag d. 2/11
Gruppe:
D3244
SCHURTER RFI Suppression Filters with IEC/CEE Plug
Series: 5707
In Metal Housing, IP65
SCHURTER RFI Suppression Filters with IEC/CEE Plug
Series: 5707
In Metal Housing, IP65
| Features |
| • Filter built in a metal housing with integrated power line connector and 2-pole fuse holder • Fuse holder for 5x20mm fuse • Faston plug terminal 6,3x0,8mm • Screw or riveted bold mounting from front or rear side |
 |
| Technical Specifications |
| |
| Rated Voltage: | 250V, 50Hz |
| Dielectric Strength, 2s | |
| Line To Ground: | >2,3kVDC |
| Line To Line: | >1,7kVDC |
| Temperature Range: | -25...+85°C |
| Climatic Category: | HPF (25/085/21) |
| Protection Class: | IP65 |
| |
| Part Nr. | IR | L | CX | CY | IL | R |
| FIL5707-_ | [A] | [mH] | [nF] | [nF] | [mA] | [MW] |
| 0101-312 | 1 | 2x12 | 100 | 2,2 | 0,5 | 1 |
| 0201-312 | 2 | 2x5,2 | 100 | 2,2 | 0,5 | 1 |
| 0401-312 | 4 | 2x2 | 100 | 2,2 | 0,5 | 1 |
| 0601-312 | 6 | 2x0,8 | 100 | 2,2 | 0,5 | 1 |
| 0801-312 | 8 | 2x0,4 | 100 | 2,2 | 0,5 | 1 |
| IR = Rated Current, at 40°C, L = Inductance, IL = Leakage Current, Max. at 220V, 50Hz | ||||||
| ||||||
| Approvals |
  10 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.schurter.de |
|
Produktfiler
