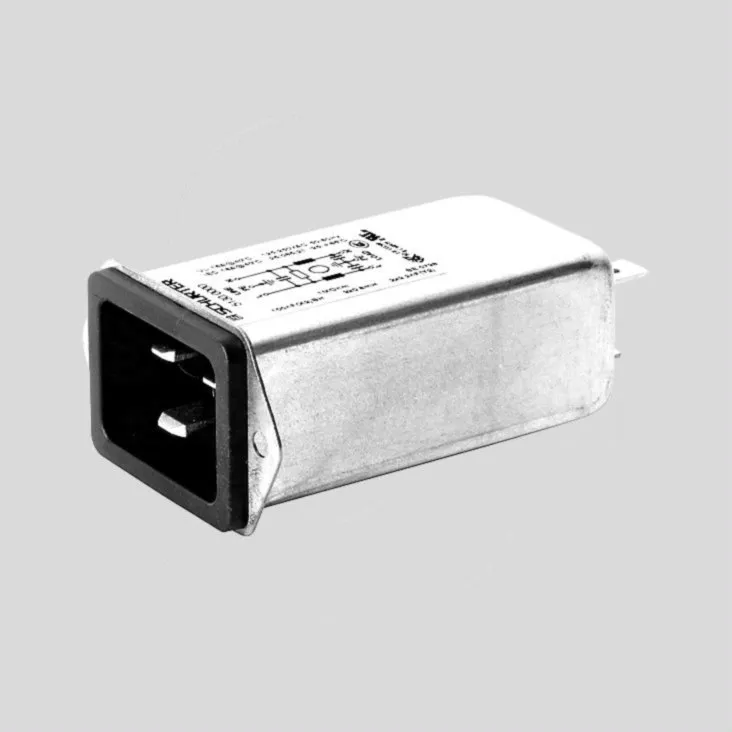

Line Filter IEC Plug 5130 20A
Varenummer:
103-133
Varekode: FIL5130-0001
Vægt: 95 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Gruppe:
D3223
SCHURTER RFI Suppression Filters with IEC/CEE Plug
Series: 5130
In Metal Housing
SCHURTER RFI Suppression Filters with IEC/CEE Plug
Series: 5130
In Metal Housing
| Features |
| • Filter built in a metal housing with integrated power line connector • Faston plug terminal 6,8x0,8mm • FIL5130-00_: Screw mounting from front or rear side • FIL5130-20_: Snap-in mounting from front or rear side |
 |
| Technical Specifications |
| |
| Rated Voltage: | 250V, 50/60Hz |
| Dielectric Strength, 2s | |
| Line To Ground: | 2,7kV DC |
| Line To Line: | 1,7kV DC |
| Temperature Range: | -25...+85°C |
| Climatic Category: | HPF (25/085/21) |
| Protection Class Front Side: | IP40 |
| |
| Part Nr. | IR | L | CX | CY | IL | R |
| FIL_ | [A] | [mH] | [nF] | [nF] | [mA] | [MW] |
| 5130-0000 | 16 | 2x0,6 | 100 | 2,2 | 0,5 | 1 |
| 5130-0001 | 20 | 2x0,3 | 100 | 2,2 | 0,5 | 1 |
| 5130-2000 | 16 | 2x0,6 | 100 | 2,2 | 0,5 | 1 |
| 5130-2001 | 20 | 2x0,3 | 100 | 2,2 | 0,5 | 1 |
| IR = Rated Current, at 40°C, L = Inductance, IL = Leakage Current, Max. at 250V, 60Hz | ||||||
| ||||||
| Approvals |
  10 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.schurter.de |
|
Inkl. moms
Kr. 260,63
- v/10 – Kr. 195,47
- v/25 – Kr. 162,89
- v/100 – Kr. 130,31
- v/1000 – Kr. 97,73
Produktfiler
