  5. SMD Choke 2x590uH 5,6A

SMD Choke 2x590uH 5,6A

Varenummer: 103-040
Varekode: CMPS590-5,6
Vægt: 6 g
0 stk. på lager
Vis lignende produkter i kategorien "Støjspoler"
Specifikationer
Strøm, max. 5.6  A
Induktans 590  µH
Application
• Designed for DC/DC Converters
Features
• Two separated windings for minimum capacitance
• Terminals through 4 tin soldered-in pins
• Operating temperature -40 to 125°C
• Meets lead free reflow level J-STD-020C
Technical Specifications
Part Nr.
 IN
 L
 LL
 RDC
 Impedance
CMPS_
 [A]
 [mH]
 [μH]
 [mW]
 Curve
1170-1,22 1,22
 1,170
 8,296
 200
 A
880-1,63 1,63
 0,884
 5,807
 110
 B
1470-2,8 2,80
 1,470
 9,630
 80
 C
1320-3,3 3,30
 1,320
 8,130
 60
 D
220-3,3 3,30
 0,225
 8,175
 60
 E
770-4,7 4,70
 0,768
 4,559
 40
 F
590-5,6 5,60
 0,590
 3,891
 20
 J
530-7,2 7,20
 0,530
 4,536
 15
 H
810-9,7 9,70
 0,809
 7,408
 14
 F
630-11,6 11,6
 0,630
 5,482
 10
 J
470-14,0 14,0
 0,473
 4,531
 8
 G
LN = Rated Current, L = Inductance, LL = Leakage Inductance, RDC = DC Resistance

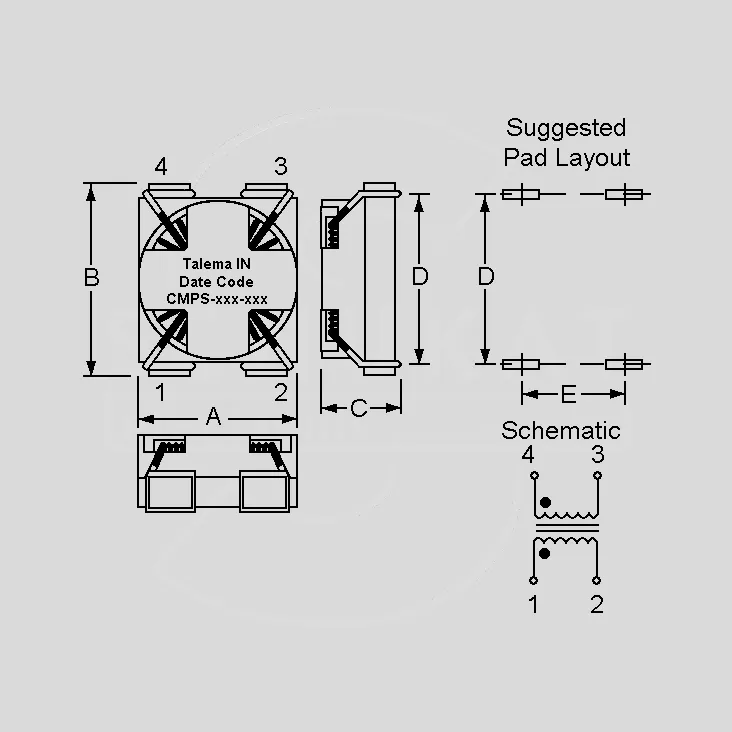

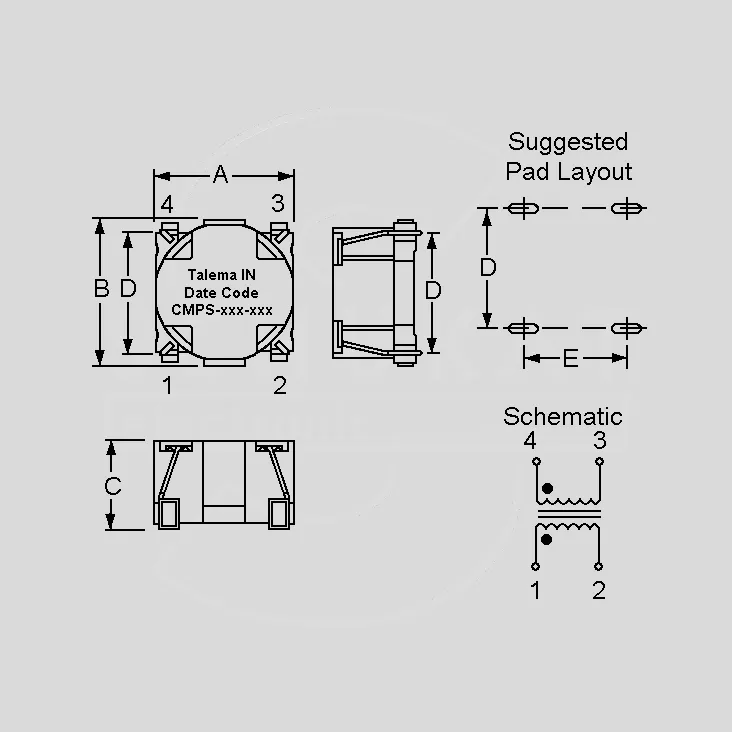

Dimensions
Part Nr.
 Package
 A
 B
 C
 D
 E
 Pad
CMPS_
 Size
 [mm]
 [mm]
 [mm]
 [mm]
 [mm]
 Dim.
1170-1,22 SC2
 12,00
 12,00
 5,40
 10,40
 8,38
 4,45x1,52
880-1,63 SC2
 12,00
 12,00
 5,40
 10,40
 8,38
 4,45x1,52
1470-2,8 SC5
 16,82
 19,31
 9,91
 16,76
 11,30
 4,45x1,52
1320-3,3 SC5
 16,82
 19,31
 9,91
 16,76
 11,30
 4,45x1,52
220-3,3 SC5
 16,82
 19,31
 9,91
 16,76
 11,30
 4,45x1,52
770-4,7 SC5
 16,82
 19,31
 9,91
 16,76
 11,30
 4,45x1,52
590-5,6 SC5
 16,82
 19,31
 9,91
 16,76
 11,30
 4,45x1,52
530-7,2 SHC6
 25,40
 28,05
 10,00
 25,65
 15,75
 7,62x2,03
810-9,7 SHC7
 25,40
 30,99
 12,70
 27,94
 15,24
 10,16x3,94
630-11,6 SHC7
 25,40
 30,99
 12,70
 27,94
 15,24
 10,16x3,94
470-14,0 SHC7
 25,40
 30,99
 12,70
 27,94
 15,24
 10,16x3,94
