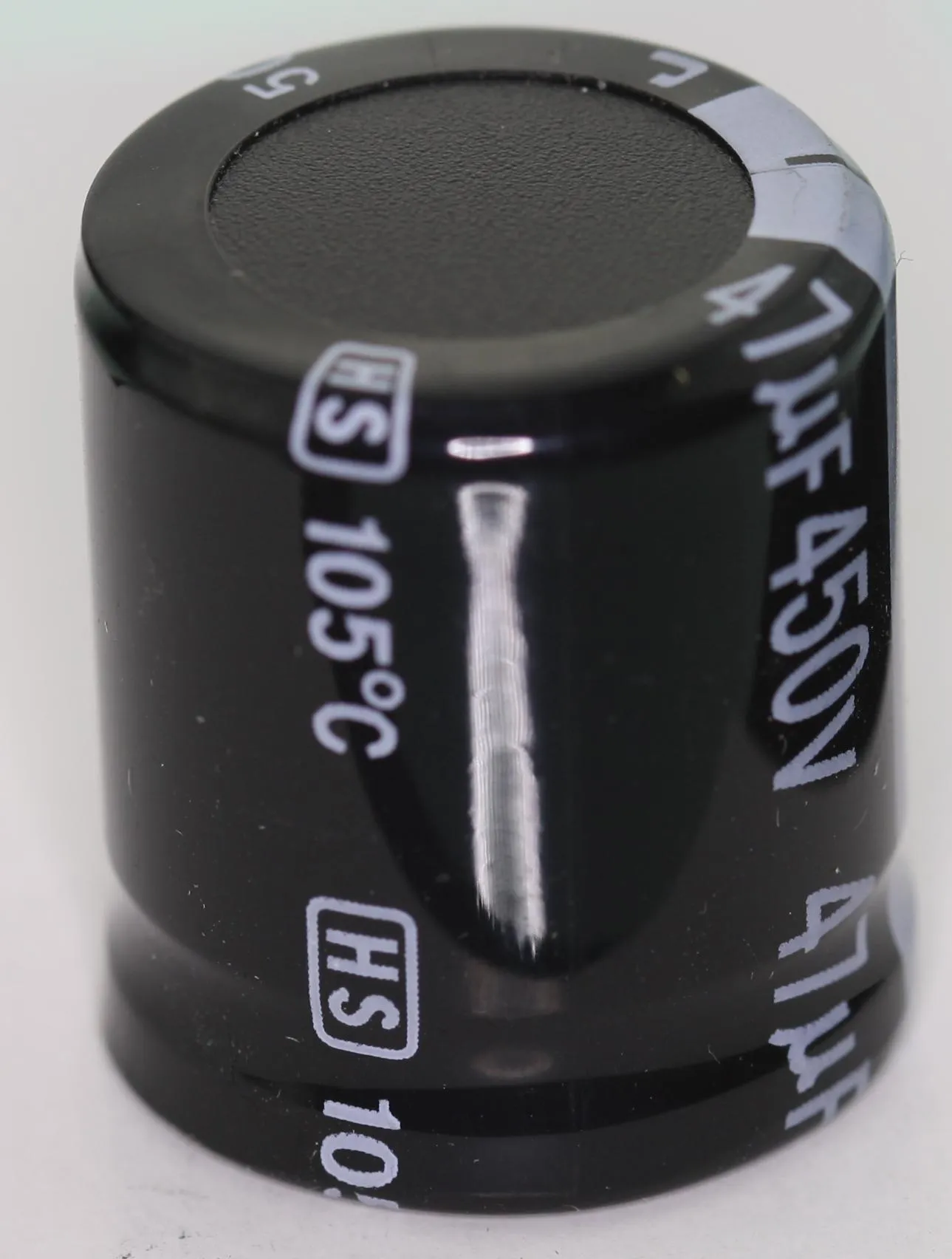

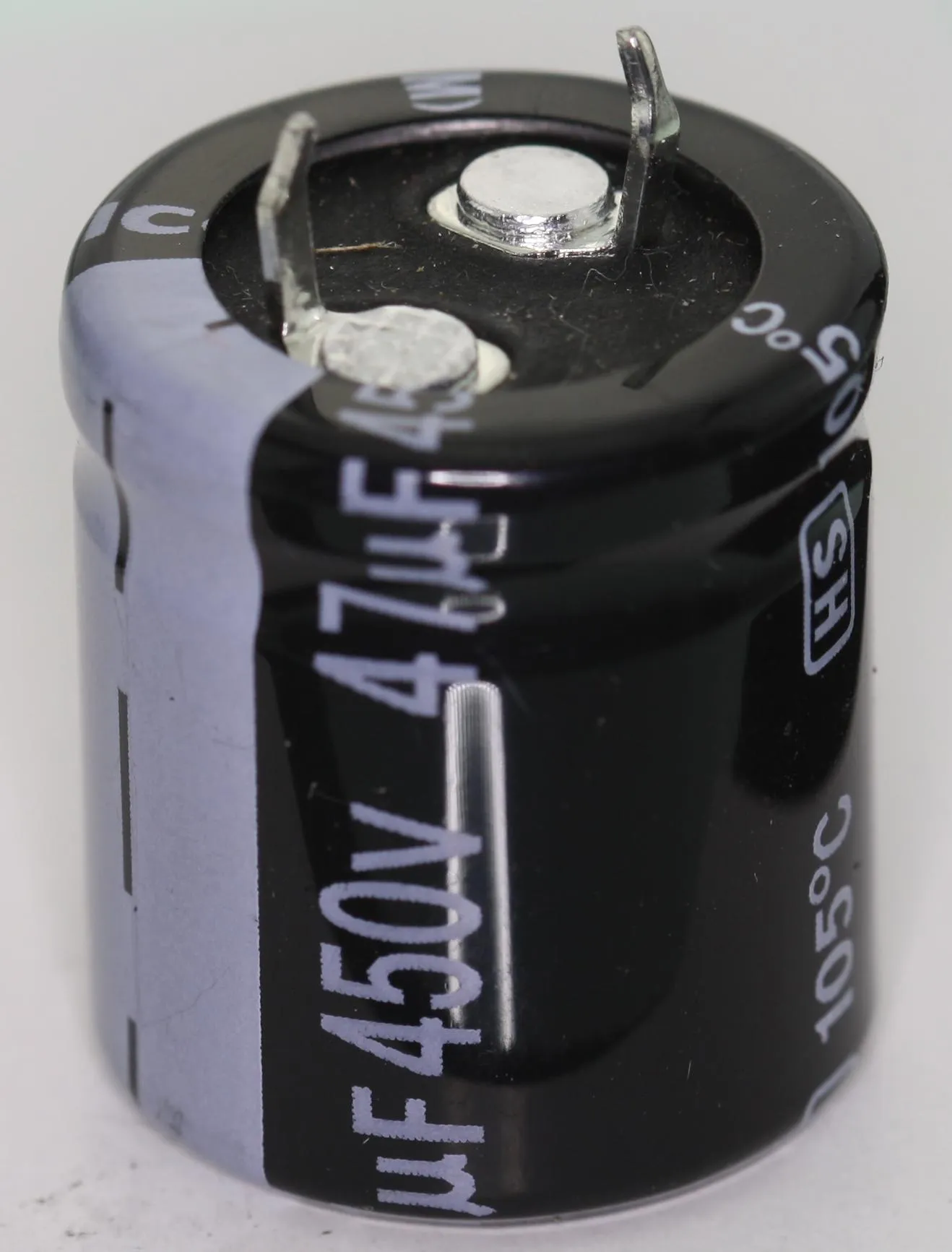

El-Capacitor 47µF/450V-P10-22x25mm

Name: El-Capacitor 47µF/450V-P10-22x25mm
SKU: 102950
Price: 28.44 DKK
Availability: InStock

Varenummer: 102-950

Varekode: CSHT0047/450-P10

Vægt: 13 g

8 stk. på lager

Bestil nu for afsendelse i morgen

Yderligere 350 stk. kan skaffes lørdag d. 17/10

Vis lignende produkter i kategorien "400V"

Specifikationer

Kondensator-type	radial
Produkt	kondensator
Spænding, max.	450 V
Tolerance	±20 %
Temperatur	-40 – 105 °C
Benafstand	1 cm
Højde	2.5 cm
Diameter	2.2 cm
Kapacitans	47 µF

Gruppe: C6471
JAMICON Electrolytic Capacitors
Series: HSW
Snap-In
Style: Bulk
Rated Voltage: 25...450V DC
Tolerance: 20%
Temperature Range: -40...+105°C

HSW0047/450

HSW470M2WN25M

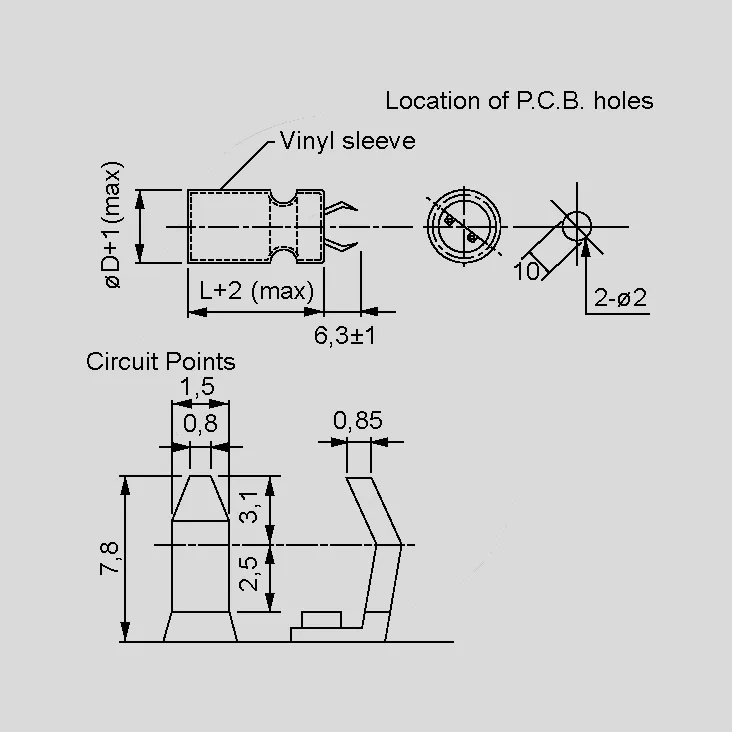

Technical Specifications


Operating Temperature Range:	-40...+105°C	Leakage Current (Peak Value after 5min.):	I_L£0,02xCxU_N or 3mA

	Part Nr.	C	U_N	tand	I_R	Z	D	L	[µF]	[V=]	[A]	[V/A]	[mm]	[mm]	HSW0047/450	47	450	0,15	0,39	6	22	25	HSW0100/400	100	400	0,15	0,61	6	22	30	HSW0220/400	220	400	0,15	1,16	6	30	35	HSW0470/400	470	400	0,15	2,07	6	35	45	HSW1000/63	1000	63	0,30	0,91	3	22	25	HSW2200/50	2200	50	0,35	1,31	4	22	30	HSW4700/35	4700	35	0,40	1,65	6	22	35	HSW4700/50	4700	50	0,35	1,74	4	25	35	HSW4700/63	4700	63	0,30	1,84	3	30	35	HSW6800/35	6800	35	0,35	1,94	6	25	40	HSW10000/35	10000	35	0,40	2,03	6	30	35	HSW10000/50	10000	50	0,35	2,39	4	30	45	HSW15000/35	15000	35	0,40	2,92	6	35	40	HSW22000/25	22000	25	0,25	3,55	6	35	40
C = Capacitance, U_N = DC Voltage Rating, tan d = Dissipation Factor (120Hz, 25°C), I_R = Ripple Current (120Hz, 85°C), Z = Impedance Ratio (120Hz, -25...+25°C)

Terms of Delivery

Minimum order quantity: 1 PKU = 5 pieces

Manufacturer

http://www.jamicon.com.tw

Inkl. moms

Kr. 28,44

v/10 – Kr. 21,31
v/25 – Kr. 19,84
v/100 – Kr. 17,16
v/1000 – Kr. 11,44

Produktfiler

Datasheet

El-Capacitor 47µF/450V-P10-22x25mm

102-950

/ CSHT0047/450-P10

8 stk. på lager

Bestil nu for afsendelse i morgen

Ved bestilling nu, får vi dem hjem lørdag d. 17/10

Specifikationer

Kondensator-type radial
Produkt kondensator
Spænding, max. 450 V
Tolerance ±20 %
Temperatur -40 – 105 °C
Benafstand 1 cm
Højde 2.5 cm
Diameter 2.2 cm
Kapacitans 47 µF

Gruppe: C6471
JAMICON Electrolytic Capacitors
Series: HSW
Snap-In
Style: Bulk
Rated Voltage: 25...450V DC
Tolerance: 20%
Temperature Range: -40...+105°C

HSW0047/450

HSW470M2WN25M

Technical Specifications


Operating Temperature Range:	-40...+105°C	Leakage Current (Peak Value after 5min.):	I_L£0,02xCxU_N or 3mA

	Part Nr.	C	U_N	tand	I_R	Z	D	L	[µF]	[V=]	[A]	[V/A]	[mm]	[mm]	HSW0047/450	47	450	0,15	0,39	6	22	25	HSW0100/400	100	400	0,15	0,61	6	22	30	HSW0220/400	220	400	0,15	1,16	6	30	35	HSW0470/400	470	400	0,15	2,07	6	35	45	HSW1000/63	1000	63	0,30	0,91	3	22	25	HSW2200/50	2200	50	0,35	1,31	4	22	30	HSW4700/35	4700	35	0,40	1,65	6	22	35	HSW4700/50	4700	50	0,35	1,74	4	25	35	HSW4700/63	4700	63	0,30	1,84	3	30	35	HSW6800/35	6800	35	0,35	1,94	6	25	40	HSW10000/35	10000	35	0,40	2,03	6	30	35	HSW10000/50	10000	50	0,35	2,39	4	30	45	HSW15000/35	15000	35	0,40	2,92	6	35	40	HSW22000/25	22000	25	0,25	3,55	6	35	40
C = Capacitance, U_N = DC Voltage Rating, tan d = Dissipation Factor (120Hz, 25°C), I_R = Ripple Current (120Hz, 85°C), Z = Impedance Ratio (120Hz, -25...+25°C)

Terms of Delivery

Minimum order quantity: 1 PKU = 5 pieces

Manufacturer

http://www.jamicon.com.tw
