El-Capacitor 2200µF/25V 16x25 P7,5
Varenummer:
102-938
Varekode: CSHT2200/25-P7,5
Vægt: 8 g
6 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 3125 stk. kan skaffes onsdag d. 2/12
Vis lignende produkter i kategorien "25V"
Specifikationer
| Kondensator-type |
radial
|
| Produkt |
kondensator
|
| Spænding, max. |
25
V
|
| Tolerance |
±20
%
|
| Temperatur |
-55 – 105
°C
|
| Højde |
2.5
cm
|
| Diameter |
1.6
cm
|
| Benafstand |
7.5
mm
|
| Kapacitans |
2 200
µF
|
Gruppe: C6395
JAMICON Electrolytic Capacitors
Series: TL
Radial, Low Impendance, Low ESR
Style: Taped, Bulk
Rated Voltage: 25V DC
Tolerance: 20%
Temperature Range: -55...+105°C
• Aluminium encased, insulated • Radial leads • High temperature (up to 105°C) • High reliability |
 |
 |
| |
|
Voltage Rating: |
25V DC |
Rated Voltage: |
32V |
Impedance Ratio: |
3W |
Surge Voltage, tan d (120Hz, 25°C): |
0,14 |
Capacitance Tolerance: |
±20% |
Temperature Range: |
-55...+105°C |
Leakage Current: |
IL£0,01xCxUN oder 3µA |
 |
| |
|
|
|
|
|
|
|
Part Nr. |
C |
RESR |
IR |
D |
L |
P |
d |
|
[µF] |
[W] |
[mA] |
[mm] |
[mm] |
[mm] |
[mm] |
TLP0047/25 |
47 |
0,539 |
0,19 |
5 |
11 |
2 |
0,5 |
TLP0047/25-5 |
47 |
0,539 |
0,19 |
5 |
11 |
5 |
0,5 |
TLP0100/25 |
100 |
0,349 |
0,31 |
6,3 |
11 |
2,5 |
0,5 |
TLP0220/25 |
220 |
0,180 |
0,54 |
8 |
11,5 |
3,5 |
0,6 |
TLP0330/25 |
330 |
0,108 |
0,70 |
10 |
12,5 |
5 |
0,6 |
TLP0470/25 |
470 |
0,088 |
0,92 |
10 |
16 |
5 |
0,6 |
TLP0680/25 |
680 |
0,070 |
1,22 |
10 |
20 |
5 |
0,6 |
TLR1000/25 |
1000 |
0,057 |
1,58 |
12,5 |
20 |
5 |
0,6 |
TLR2200/25 |
2200 |
0,032 |
2,39 |
16 |
25 |
7,5 |
0,8 |

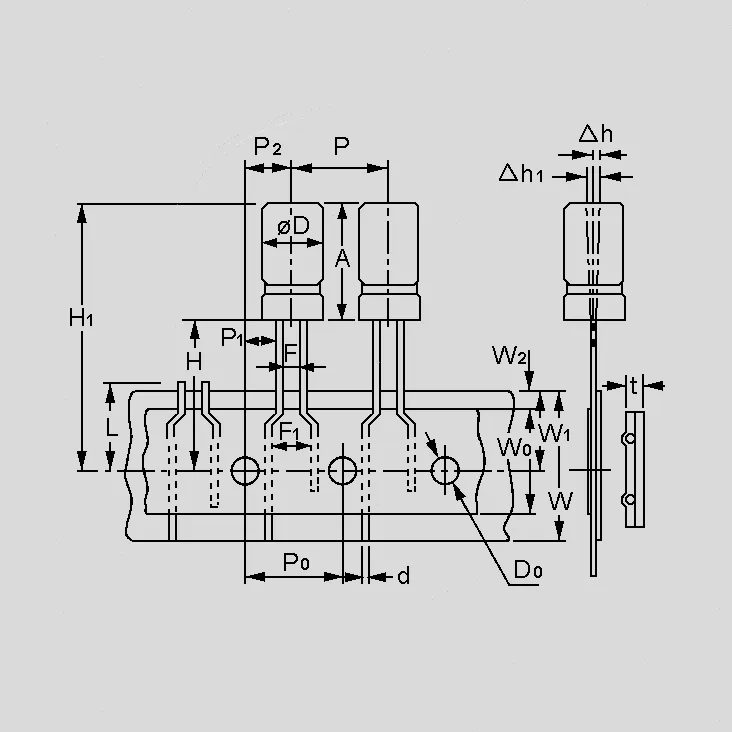

| C = Rated Capacitance, RESR = Max. Impedance (20°C, 120 KHz), IR = Ripple Current (105°C, 100kHz), P = Pitch |
 |
 |
| |
|
P: |
12,7±1,0mm |
P0: |
12,7±0,2mm |
P1: |
3,85±0,7mm |
P2: |
6,35±1,0mm |
W: |
18,0±0,5mm |
W0, Min.: |
12,5mm |
W1: |
9,0±0,5mm |
W2, Max.: |
1,5mm |
H: |
18,5±0,75mm |
D0: |
4,0±0,3mm |
L, Max.: |
11,0mm |
t: |
0,6mm |
Dh: |
0±2,0mm |
Dh1: |
0±1,0mm |
F (Pitch): |
See Part Description |
 |
| |
|
|
|
|
|

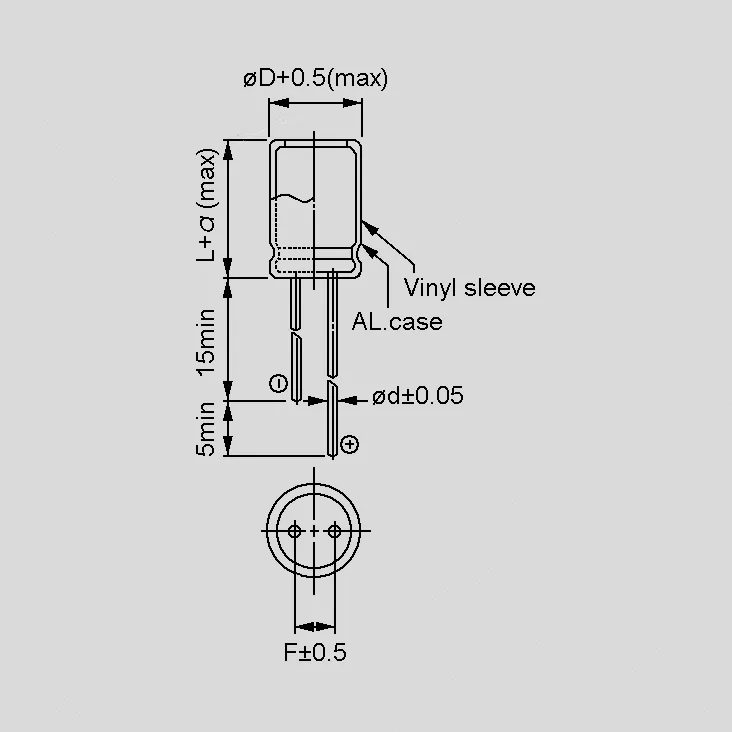

DxL |
d±0,05 |
Amax. |
H±0,5 |
H0±0,5] |
H1±0,5 |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
5x11 |
0,5 |
12,5 |
18,5 |
16,0 |
32,5 |
6,3x11 |
0,5 |
12,5 |
18,5 |
16,0 |
32,5 |
8x11,5 |
0,6 |
13,0 |
18,5 |
16,0 |
32,5 |
10x12,5 |
0,6 |
14,5 |
18,5 |
18,5 |
33,0 |
10x16 |
0,6 |
17,5 |
18,5 |
18,5 |
36,0 |
10x20 |
0,6 |
19,5 |
18,5 |
18,5 |
41,0 |
 |
| Terms of Delivery |
Minimum order quantity: 1 PKU = 25 pieces Form of delivery: Taped and Bulk |
 |
