• Dielectric: polyethylene-terephthalate (PET) film
• Vacuum-deposited capacitor electrodes
• Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL 94 V-0
• Terminations: tinned wire
• High volume/capacitance ratio and reduced base
• Pitch 7,5...27,5mm
• Self-healing
|
 |
For general DC-applications e.g. By-pass, Blocking, Coupling and decoupling, Timing.
|
|
|
|
|
Rated Voltages (UN):
|
see Table
|
Test Voltage (2s):
|
1,6xUN
|
Capacitance tolerances:
|
±10%
|
Operating temperature range:
|
-55...+100°C
|
Climatic test category IEC
|
55/100/56
|
Insulation resistance
|
C£330nF:
|
³30000MW
|
C>330nF:
|
³10000s
|
Relliability (failure rate) (40°C, 0,5 x UN):
|
2,0 fit1)
|
1) 1fit = 1x10 -9 Failure Components/Hour
|
|
|
|
|
|
|
|
|
|
Part Nr.
|
CN
|
UN
|
Ueff
|
B
|
H
|
L
|
RM
|
MKS4_
|
[nF/μF]
|
[V DC]
|
[V AC]
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
| N010K630-7 |
10
|
630
|
400
|
3,0
|
8,5
|
10
|
7,5
|
| N015K630-7 |
15
|
630
|
400
|
4,0
|
9,0
|
10,0
|
7,5
|
| N022K630-7 |
22
|
630
|
400
|
4,5
|
9,5
|
10,3
|
7,5
|
| N047K630-7 |
47
|
630
|
400
|
5,7
|
12,5
|
10,3
|
7,5
|
| N100K400-10 |
100
|
400
|
200
|
5,0
|
11,0
|
13,0
|
10,0
|
| N100K630-15 |
100
|
630
|
400
|
6,0
|
12,5
|
18,0
|
15,0
|
| N220K400-15 |
220
|
400
|
200
|
6,0
|
12,5
|
18,0
|
15,0
|
| N220K630-15 |
220
|
630
|
400
|
8,0
|
15,0
|
18,0
|
15,0
|
| N330K400-15 |
330
|
400
|
200
|
8,0
|
15,0
|
18,0
|
15,0
|
| N470K400-22 |
470
|
400
|
200
|
6,0
|
15,0
|
26,5
|
22,5
|
| N470K630-22 |
470
|
630
|
400
|
10,5
|
19,0
|
26,5
|
22,5
|
| N680K400-22 |
680
|
400
|
200
|
7,0
|
16,5
|
26,5
|
22,5
|
| U1,0K400-22 |
1,0
|
400
|
200
|
10,5
|
19,0
|
26,5
|
22,5
|
| U1,0K630-27 |
1,0
|
630
|
400
|
11,0
|
21,0
|
31,5
|
27,5
|
| U1,5K400-27 |
1,5
|
400
|
200
|
11,0
|
21,0
|
31,5
|
27,5
|
| U2,2K400-27 |
2,2
|
400
|
200
|
11,0
|
21,0
|
31,5
|
27,5
|
CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage
|
|
|
|
|
CN
|
F400V
|
F630V
|
| |
[V/μs]
|
[V/μs]
|
| 10n...22nF: |
38/380
|
40/400
|
| 33n...68nF: |
25/250
|
32/320
|
| 100n...220nF: |
15/150
|
17/170
|
| 330n...680nF |
10/100
|
13/130
|
| 1,0μ...2,2μF |
9/90
|
13/130
|
F400V = Pulse Rise Time for 400V, F630V = Pulse Rise Time for 630V
|
|
Dissipation Factor Tand (20°C)
|
|
|
|
|
| |
|
Measured at
|
|
| |
1kHz
|
10kHz
|
100kHz
|
| C |
£8x10-3
|
£15x10-3
|
£30x10-3
|
| 100nF |
£8x10-3
|
£15x10-3
|
-
|
| C |
£10x10-3
|
-
|
-
|
|
| Labelling |

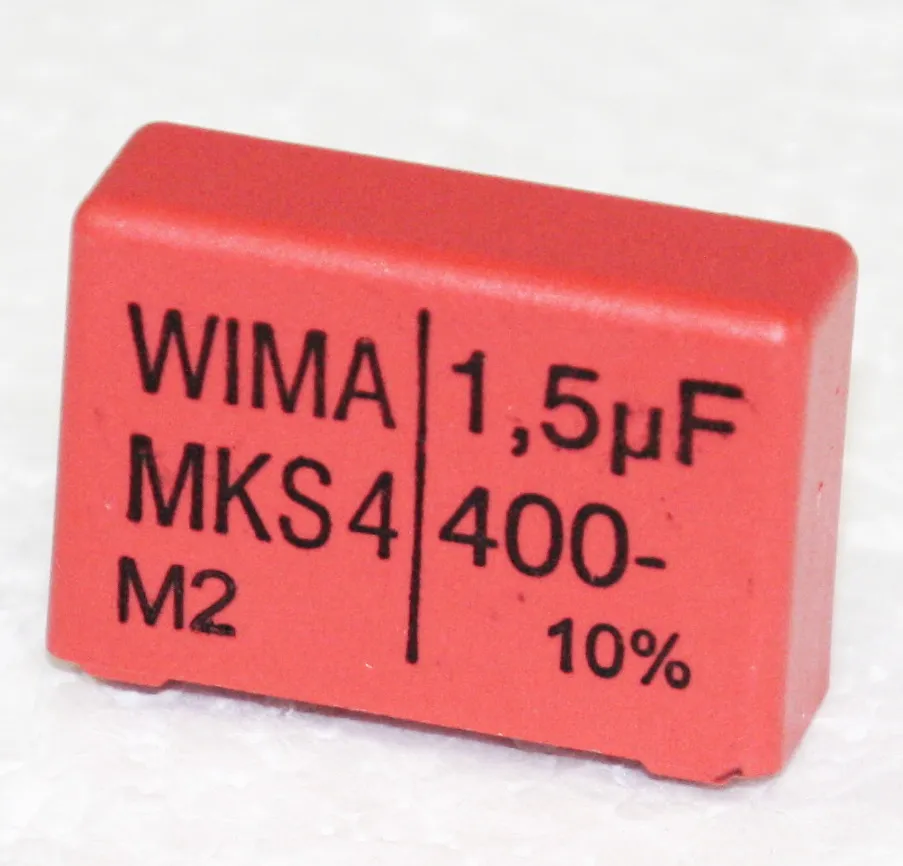

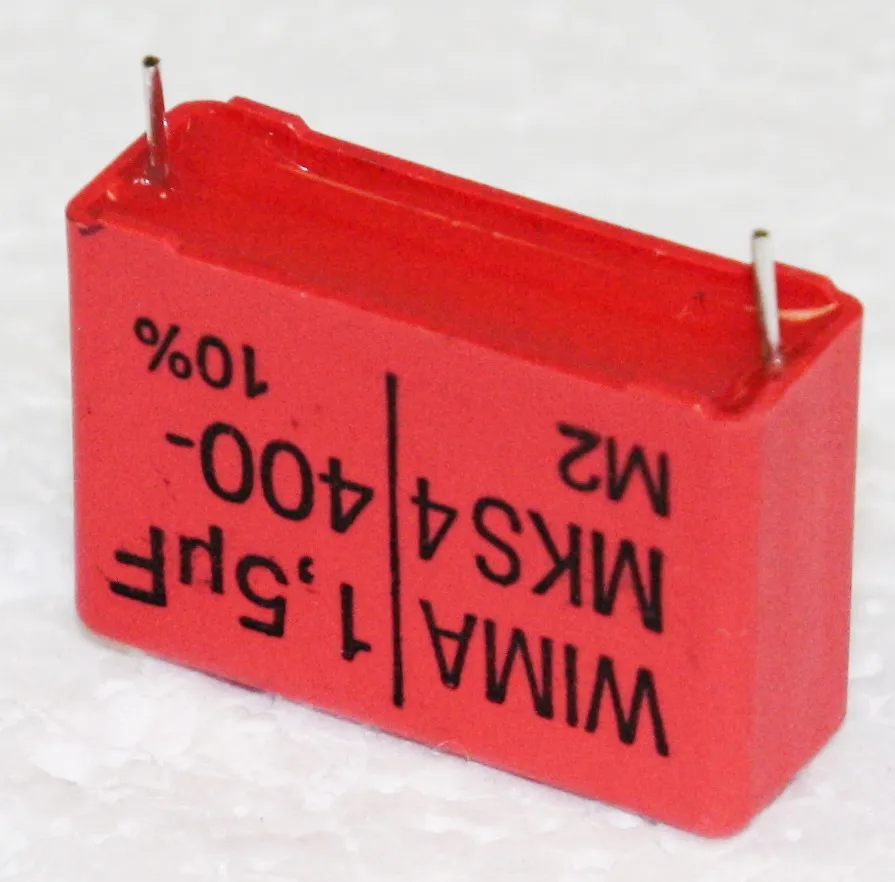

Marking: colour red, marking black
Epoxy resin seal: colour red
|
|
|
