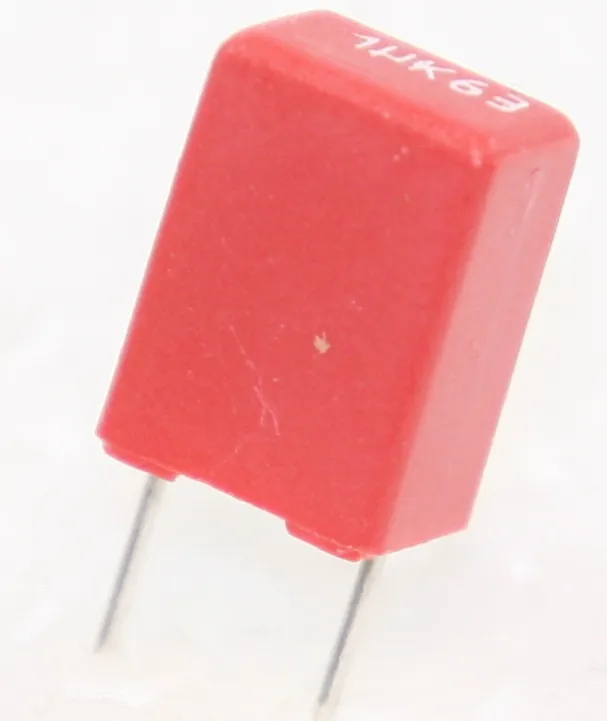

MKT Capacitor 1,0uF 63V 10% P5
Varenummer:
102-670
Varekode: MKS2U1,0K63-5
Vægt: 0 g
106 stk.
på lager
|
Manufacturer
|
WIMA |
|
Type of capacitor
|
polyester | |
|
Capacitor application
|
blocking, DC applications, decoupling, filtering, timing circuits | |
|
Capacitance
|
1µF | |
|
Max. operating voltage
|
40V AC, 63V DC | |
|
Terminal pitch
|
5mm | |
|
Tolerance
|
±10% | |
|
Body dimensions BXHXL:
|
5x10x7.2mm | |
|
Climate class
|
55/100/21 | |
|
Leads dimensions
|
L 6mm | |
|
Operating temperature
|
-55...100°C | |
|
Capacitors series
|
MKT | |
|
Pulse resistance
|
12V/μs | |
|
Mounting
|
THT | |
|
Flammability rating
ECE R-118:
This regulation applies to fire testing of materials used in the interiors of motor vehicles, such as upholstery, floor coverings, etc. UL94: This standard is used to assess the flammability of plastic materials used in various industries, including the electronics, automotive and construction sectors. |
UL94V-0 | |
|
Kind of material
|
flame retardant |
