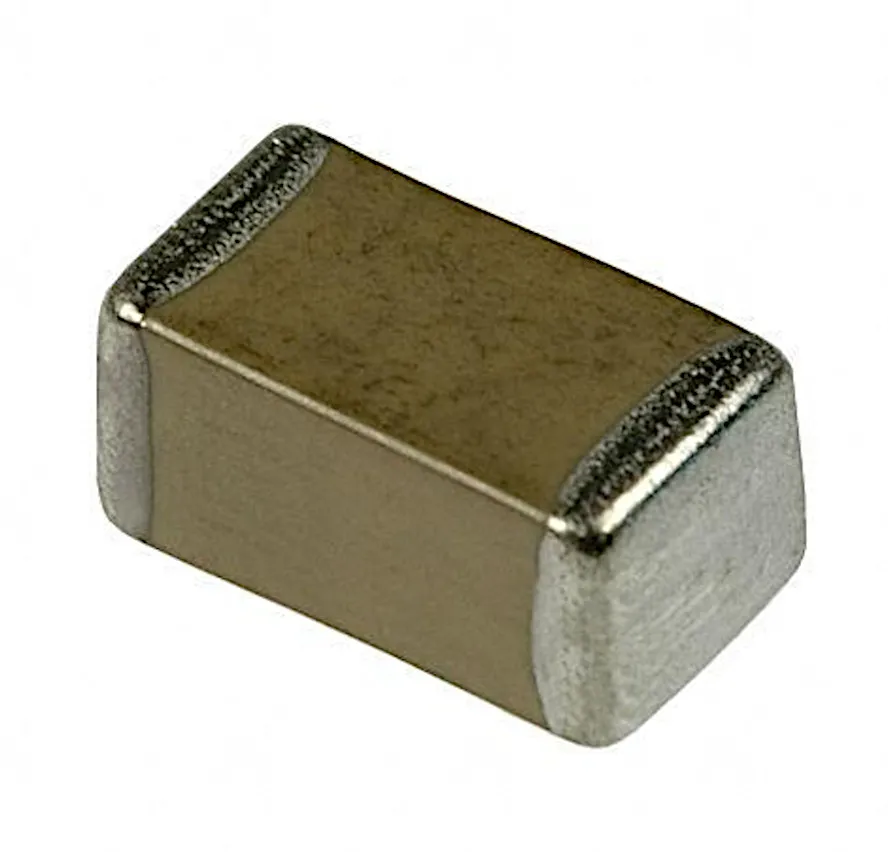

SMD MLC Capacitor 100nF 25V 10% X7R 0603
Varenummer:
102-637
Varekode: CVNF100K0603-25
Vægt: 0 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem fredag d. 23/10
Specifikationer
| Materiale | X7R |
|---|---|
| Produkt | kondensator |
| Kondensator-type | keramisk |
| Spænding, max. | 25 V |
| Tolerance | ±10 % |
| Kapacitans | 100 nF |
| Komponenthus | 0603 |
Gruppe:
C5436
DARFON SMD Multilayer Ceramic Capacitors
Series: C1608
Type of Ceramic: X7R
Housing: 0603
DARFON SMD Multilayer Ceramic Capacitors
Series: C1608
Type of Ceramic: X7R
Housing: 0603
| Technical Specifications |
 | |
| Rated Voltage (UN) | |
| 680pF...47nF, 100nF: | 50V DC |
| 100nF: | 25V DC |
| 68nF, 100nF: | 16V DC |
| 220nF, 330nF: | 10V DC |
| Test Voltage: | 2,5xUN |
| Capacitance Tolerance: | 10% |
| |
| Chip Dimensions |
| Housing | L | I | e | bmMin. |
| [mm] | [mm] | [mm] | [mm] | |
| 0603 | 1,6±0,1 | 0,8±0,1 | 0,8±0,1 | 0,5 |
| ||||
| Additional Products |
| Other articles from row E12 (3 reels min.) available on request, delivery time approx. 4 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 500 pieces Form of delivery: orders of less than 4000 pieces: 500 pieces on segment tape without leader tape and reel; orders of 4000 pieces: 4000 pieces on super-8 reel. |
|
| Manufacturer |
| Darfon http://www.darfon.com |
|
