SMD MLC Capacitor 1,0nF 50V 10% X7R 0402
Varenummer:
102-632
Varekode: CVNF1,0K0402
Vægt: 0 g
0 stk.
på lager
Specifikationer
| Materiale | X7R |
|---|---|
| Produkt | kondensator |
| Kondensator-type | keramisk |
| Spænding, max. | 50 V |
| Tolerance | ±10 % |
| Kapacitans | 1 nF |
| Komponenthus | 0402 |
| Technical Specifications |
 | |
| Rated Voltage (UN): | 50V DC |
| 10nF: | 25V DC |
| 24nF, 47nF: | 16V |
| 100nF: | 10V |
| Capacitance Tolerance: | ±10% |
| |

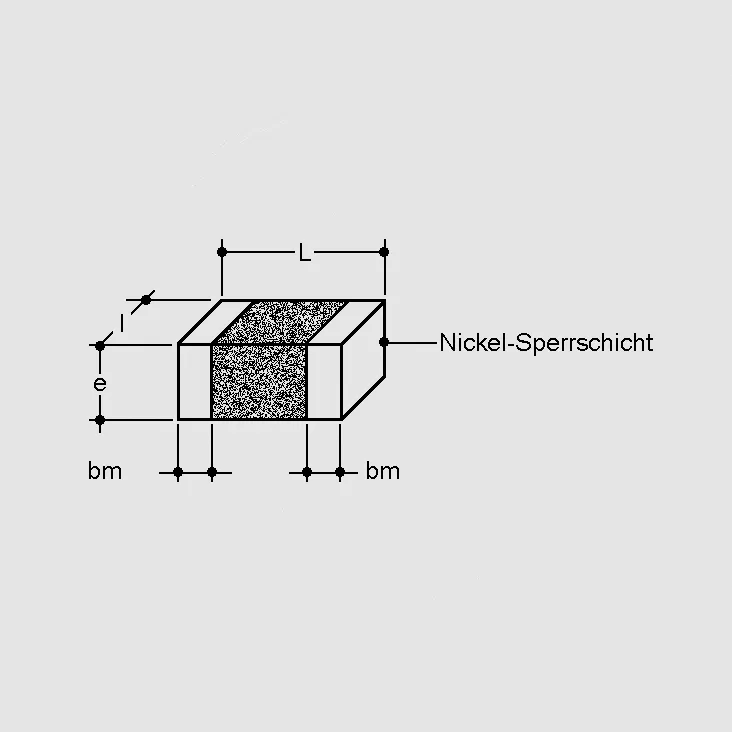

| Chip Dimensions |
| Housing | L | I | e | bmMax. |
| [mm] | [mm] | [mm] | [mm] | |
| 0402 | 1,0±0,05 | 0,5±0,05 | 0,55 | 0,3 |
| ||||
| Note |
| • More technical specifications see introduction text "C5410 to C5475" before product group C5410. |
|
| Additional Products |
| Other articles from row E12 (5 reels min.) available on request, delivery time approx. 4 weeks. |
|
| Terms of Delivery |

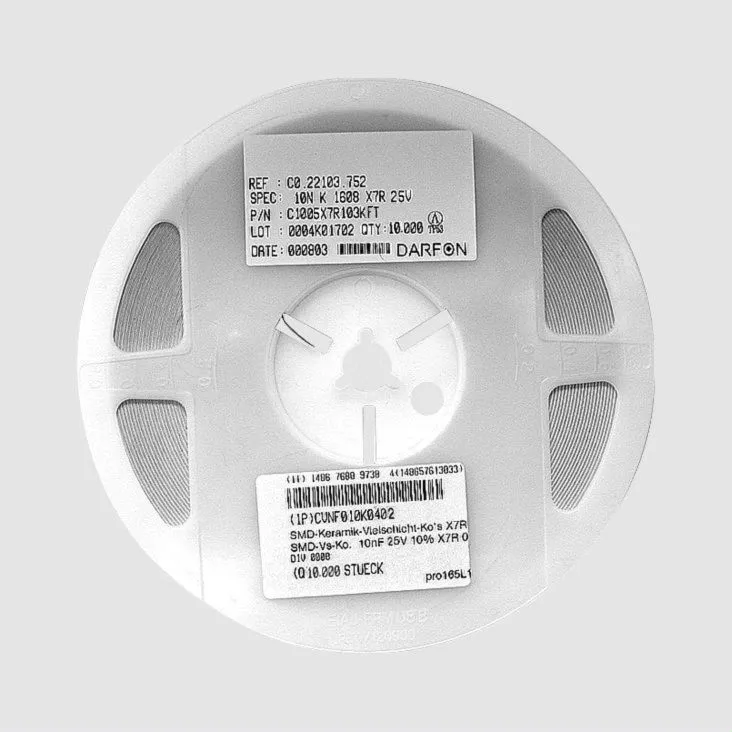

| Minimum order quantity: 1 PKU = 500 pieces Form of delivery: orders of less than 10.000 pieces: 500 pieces on segment tape without leader tape and reel; orders of 10.000 pieces: 10.000 pieces on super-8 reel. |
|
| Manufacturer |
| Darfon http://www.darfon.com |
|
