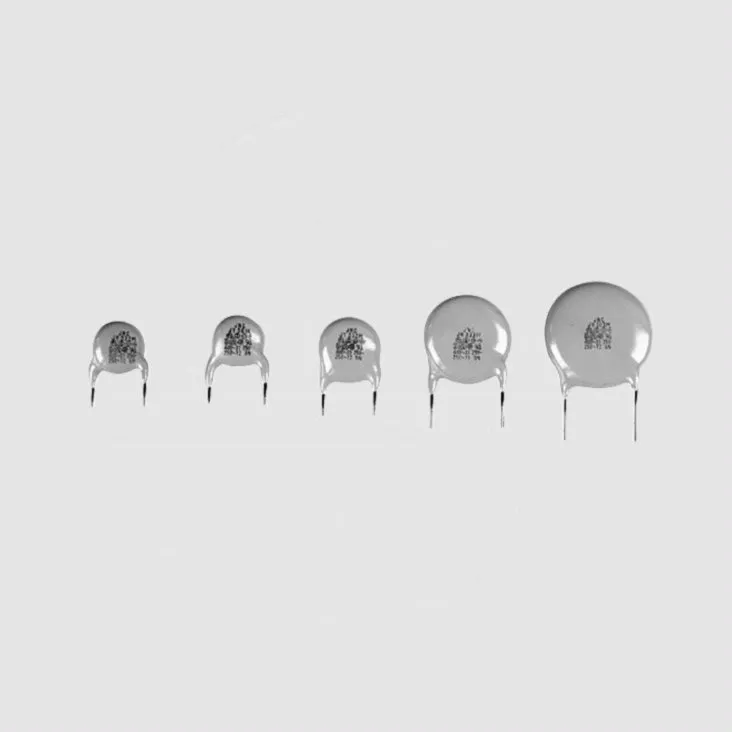

• Minimum reinforced insulation 0,4mm
• Coated with flame-retardant epoxy resin conforming to UL94-0
• High operating temperature up to 125°C (UL/CSA: 85°C)
|
 |
|
|
|
Rated Voltage (50/60Hz)
|
X1:
|
440V AC (UL/CSA 250V AC)
|
Y2:
|
250V AC
|

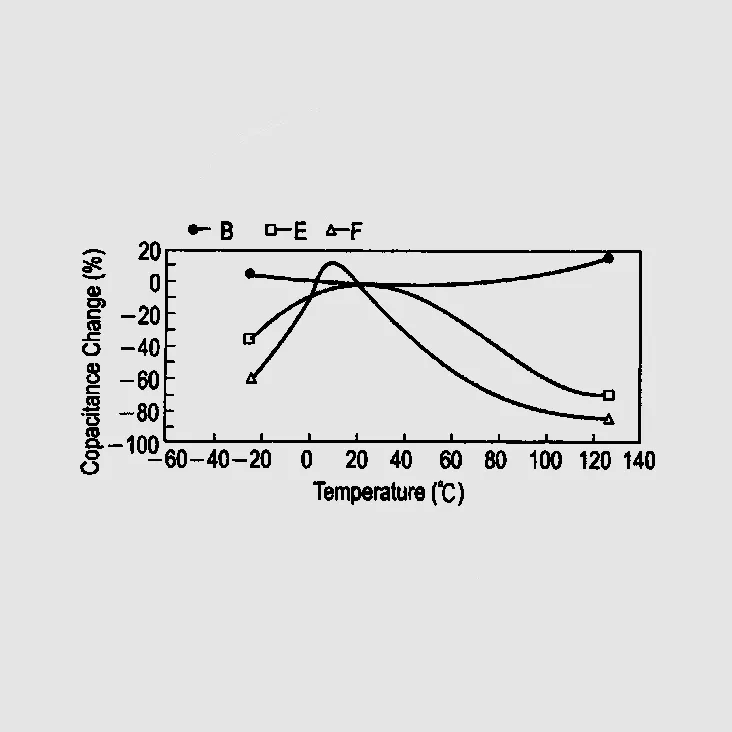

Temperature Range
|
Y5P, Y5V:
|
-25...+85°C
|
Y5U:
|
-25...+125°C
|
Test Voltage (1Min.):
|
2600V AC
|
Insulation Resistance:
|
10000MW
|
Dissipation Factor Tan d (1kHz, 1rms, 25°C):
|
£2,5%
|

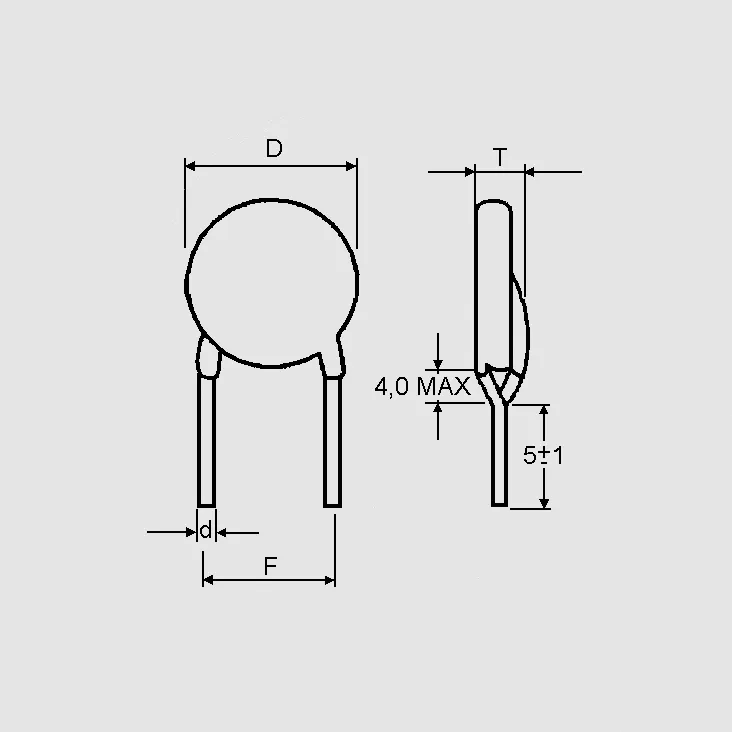

Pitch (F):
|
7,5mm
|
Body Thickness (T):
|
8mm
|
Lead Wire Diameter (d):
|
0,65±0,05mm
|
|
|
|
|
|
|
|
|
Part Nr.
|
CN
|
Temp.
|
Mat.
|
Tol.
|
Dmax.
|
P
|
| |
[pF]
|
Char.
|
|
[%]
|
[mm]
|
[mm]
|
| JY08PF150F |
150
|
B
|
Y5P
|
±10
|
8,0
|
7,5
|
| JY08PF470F |
470
|
B
|
Y5P
|
±10
|
8,0
|
7,5
|
| JY10NF001F |
1000
|
B
|
Y5P
|
±10
|
10,0
|
7,5
|
| JY08NF001,5F |
1500
|
F
|
Y5V
|
-30/+80
|
9,0
|
7,5
|
| JY09NF002,2F |
2200
|
F
|
Y5V
|
-30/+80
|
10,0
|
7,5
|
| JY10NF003,3F |
3300
|
F
|
Y5V
|
-30/+80
|
12,0
|
7,5
|
| JY12NF004,7F |
4700
|
F
|
Y5V
|
-30/+80
|
14,0
|
7,5
|
CN = Rated Capacitance, Temp. Char. = Temperature Characteristics, Mat. = Ceramic Material, Tol. = Capacitance Tolerance
|
|
| Norms |
EN132400:1994, IEC384-12 2nd Ed(1993), IEC60384-14 2nd Ed., UL1414, C22.2 No.1
|
|
|
10, CB
