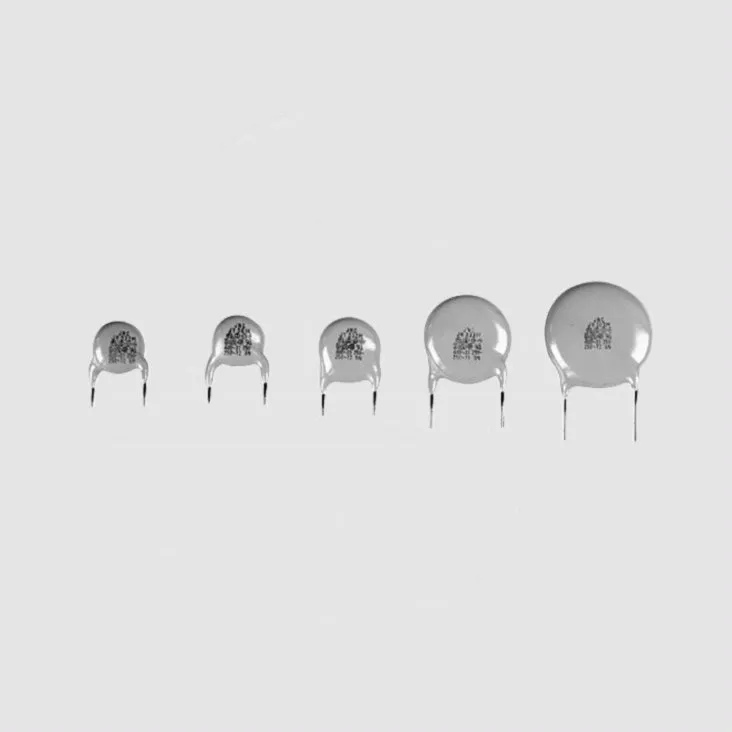

Cer Capacitor 2,2nF X1/Y2 P7,5

Varenummer: 102-621
Varekode: JY09NF002,2F
Vægt: 0 g
10 stk. på lager
Bestil nu for afsendelse mandag d. 19/10
Yderligere 3300 stk. kan skaffes fredag d. 30/10
Vis lignende produkter i kategorien "THT"
Specifikationer
Materiale Y5V
Produkt Kondensator
Kondensator-type Keramisk
Tolerance -30 / +80  %
Spænding, max. 250  V
Benafstand 7.62  mm
Kapacitans 2.2  nF
Features
• Minimum reinforced insulation 0,4mm
• Coated with flame-retardant epoxy resin conforming to UL94-0
• High operating temperature up to 125°C (UL/CSA: 85°C)
Technical Specifications
Rated Voltage (50/60Hz)
X1:
 440V AC (UL/CSA 250V AC)
Y2:
 250V AC
Temperature Range
Y5P, Y5V:
 -25...+85°C
Y5U:
 -25...+125°C
Test Voltage (1Min.):
 2600V AC
Insulation Resistance:
 10000MW
Dissipation Factor Tan d (1kHz, 1rms, 25°C):
 £2,5%

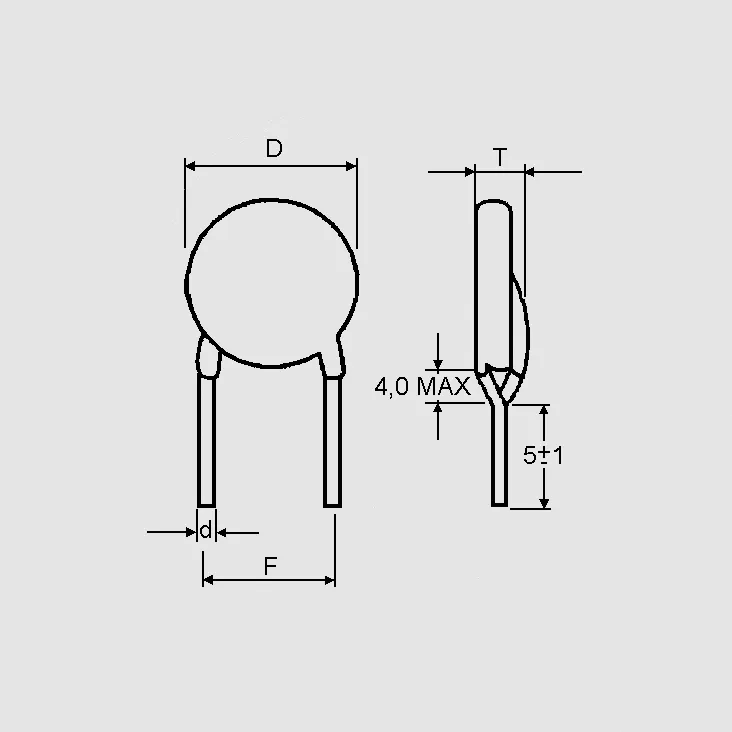

Pitch (F):
 7,5mm
Body Thickness (T):
 8mm
Lead Wire Diameter (d):
 0,65±0,05mm
Part Nr.
 CN

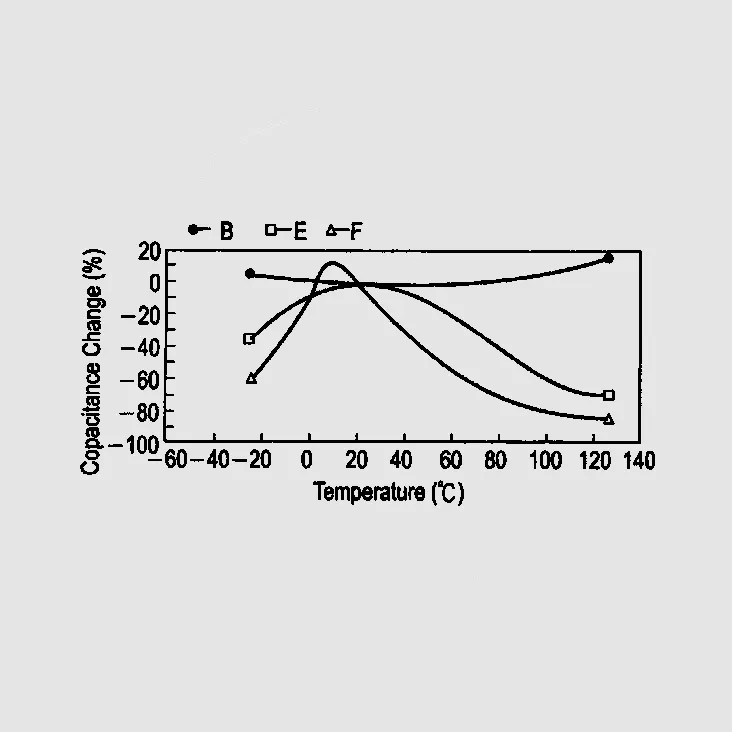

 Temp.
 Mat.
 Tol.
 Dmax.
 P
  [pF]
 Char.
   [%]
 [mm]
 [mm]
JY08PF150F 150
 B
 Y5P
 ±10
 8,0
 7,5
JY08PF470F 470
 B
 Y5P
 ±10
 8,0
 7,5
JY10NF001F 1000
 B
 Y5P
 ±10
 10,0
 7,5
JY08NF001,5F 1500
 F
 Y5V
 -30/+80
 9,0
 7,5
JY09NF002,2F 2200
 F
 Y5V
 -30/+80
 10,0
 7,5
JY10NF003,3F 3300
 F
 Y5V
 -30/+80
 12,0
 7,5
JY12NF004,7F 4700
 F
 Y5V
 -30/+80
 14,0
 7,5
CN = Rated Capacitance, Temp. Char. = Temperature Characteristics, Mat. = Ceramic Material, Tol. = Capacitance Tolerance
Norms
EN132400:1994, IEC384-12 2nd Ed(1993), IEC60384-14 2nd Ed., UL1414, C22.2 No.1
Approvals
10, CB
Manufacturer
Jya-Nay
http://www.jyanay.com.tw
Inkl. moms
v/100 Kr. 2,00
  • v/1000 – Kr. 1,25
