Cer Capacitor 2,2nF X1/Y1 P12,5
Varenummer:
102-617
Varekode: JN12NF002,2F
Vægt: 1 g
730 stk.
på lager
Bestil nu for afsendelse mandag d. 19/10
Yderligere 11000 stk. kan skaffes fredag d. 30/10
Vis lignende produkter i kategorien "THT"
Specifikationer
| Materiale |
Y5U
|
| Produkt |
Kondensator
|
| Kondensator-type |
Keramisk
|
| Spænding, max. |
250
V
|
| Tolerance |
-55 / +20
%
|
| Benafstand |
1.25
cm
|
| Kapacitans |
2.2
nF
|
• Minimum reinforced insulation 0,4mm
• Coated with flame-retardant epoxy resin conforming to UL94-0
• High operating temperature up to 125°C (UL/CSA: 85°C)
|
 |
|
|
|
Rated Voltage (50/60Hz)
|
X1:
|
440V AC (UL/CSA 250V AC)
|
Y1:
|
250V AC
|
Temperature Range:
|
-25...+125°C
|
Test Voltage (1Min.):
|
4000V AC
|
Insulation Resistance:
|
10000MW
|
Dissipation Factor Tan d (1kHz, 1rms, 25°C):
|
£2,5%
|

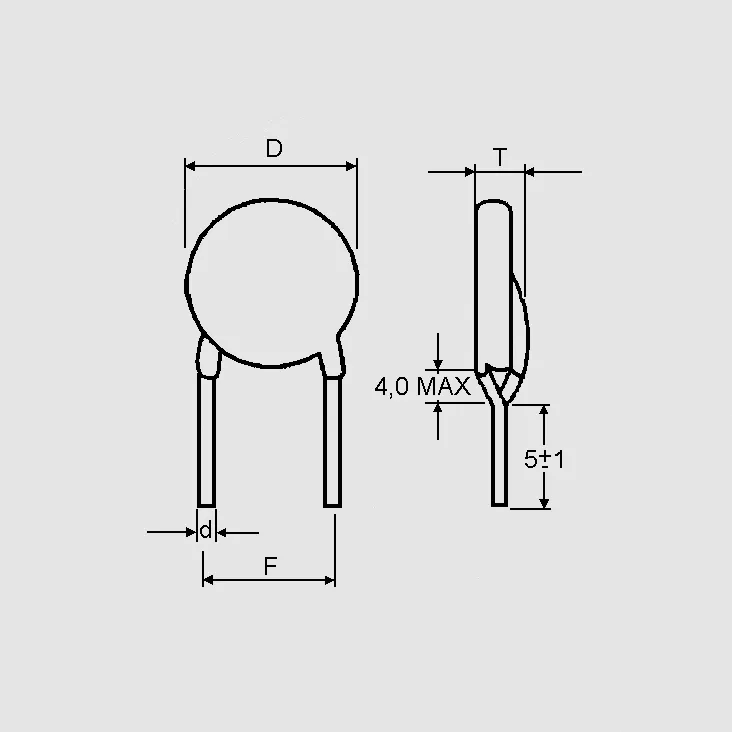

Pitch (F):
|
12,5mm
|
Body Thickness (T):
|
8mm
|
Lead-Wire Diameter (d):
|
0,65±0,05mm
|
|
|
|
|
|
|
|
|
Part Nr.
|
CN
|
Temp.
|
Material
|
Tol.
|
DMax.
|
P
|
| |
[pF]
|
Char.
|
|
[%]
|
[mm]
|
[mm]
|
| JN09PF220F |
220
|
B
|
Y5P
|
±10
|
9,0
|
12,5
|
| JN09PF330F |
330
|
B
|
Y5P
|
±10
|
9,0
|
12,5
|
| JN10PF470F |
470
|
B
|
Y5P
|
±10
|
9,0
|
12,5
|
| JN09NF001F |
1000
|
E
|
Y5U
|
+20/-55
|
9,0
|
12,5
|
| JN12NF002,2F |
2200
|
E
|
Y5U
|
+20/-55
|
12,0
|
12,5
|

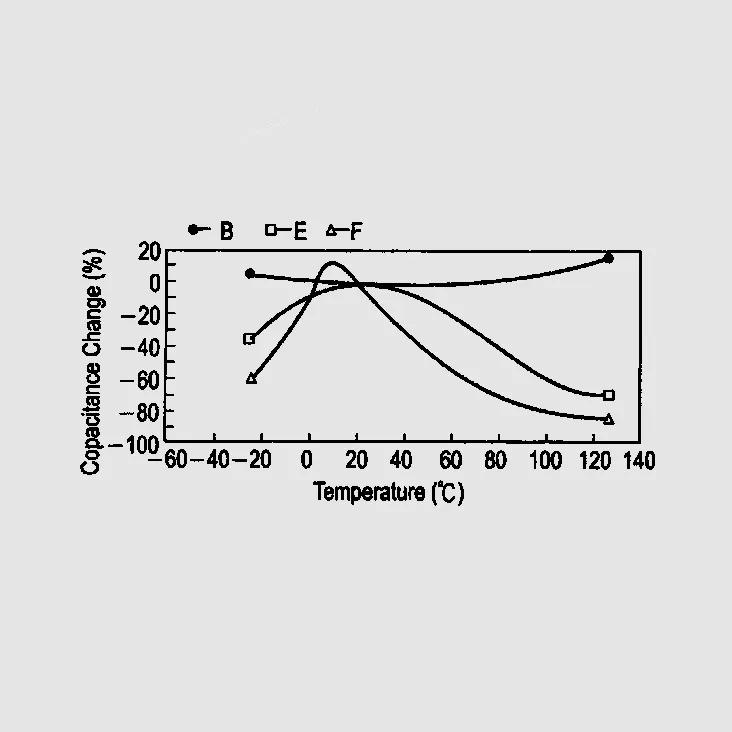

CN = Rated Capacitance, Temp. Char. = Temperature Characteristics, Mat. = Ceramic Material, Tol. = Capacitance Tolerance
|
|
| Norms |
EN132400:1994, IEC384-12 2nd Ed(1993), IEC60384-14 2nd Ed., UL1414, C22.2 No.1
|
|
|
10, CB
