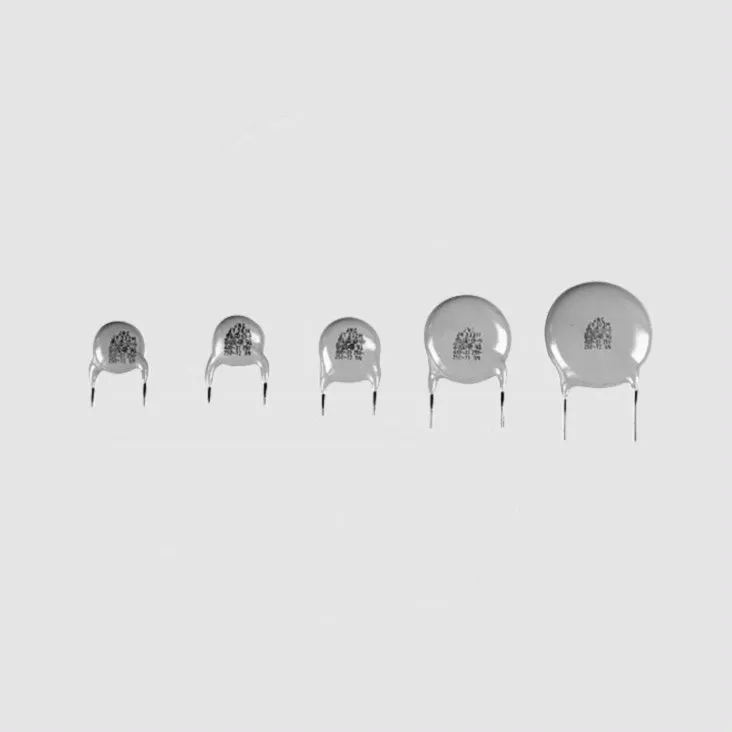

Cer Capacitor 470pF X1/Y1 P12,5
Varenummer:
102-615
Varekode: JN09PF470F
Vægt: 0 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem lørdag d. 31/10
Specifikationer
| Materiale | Y5P |
|---|---|
| Produkt | Kondensator |
| Kondensator-type | Keramisk |
| Spænding, max. | 250 V |
| Tolerance | ±10 % |
| Benafstand | 1.25 cm |
| Kapacitans | 470 pF |
Gruppe:
C5311
JYA-NAY Ceramic Suppression Capacitors
Series: JN
Style: Bulk
Class: X1, Y1
Pitch: 12,5mm
JYA-NAY Ceramic Suppression Capacitors
Series: JN
Style: Bulk
Class: X1, Y1
Pitch: 12,5mm
| Features |
| Minimum reinforced insulation 0,4mm Coated with flame-retardant epoxy resin conforming to UL94-0 High operating temperature up to 125C (UL/CSA: 85C) |
 |
| Technical Specifications |
| |
| Rated Voltage (50/60Hz) | |
| X1: | 440V AC (UL/CSA 250V AC) |
| Y1: | 250V AC |
| Temperature Range: | -25...+125C |
| Test Voltage (1Min.): | 4000V AC |
| Insulation Resistance: | 10000MW |
| Dissipation Factor Tan d (1kHz, 1rms, 25C): | £2,5% |

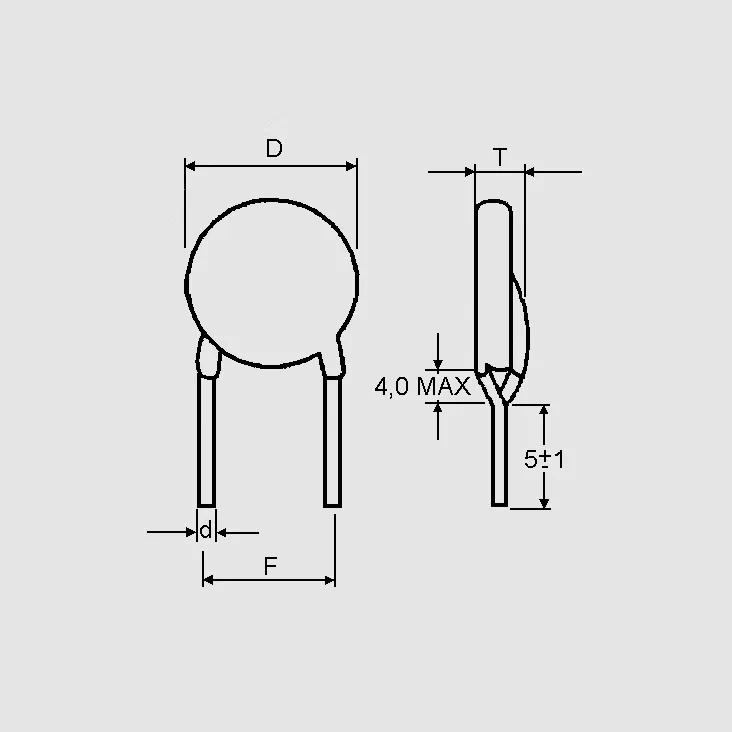

| Pitch (F): | 12,5mm |
| Body Thickness (T): | 8mm |
| Lead-Wire Diameter (d): | 0,65±0,05mm |
| |

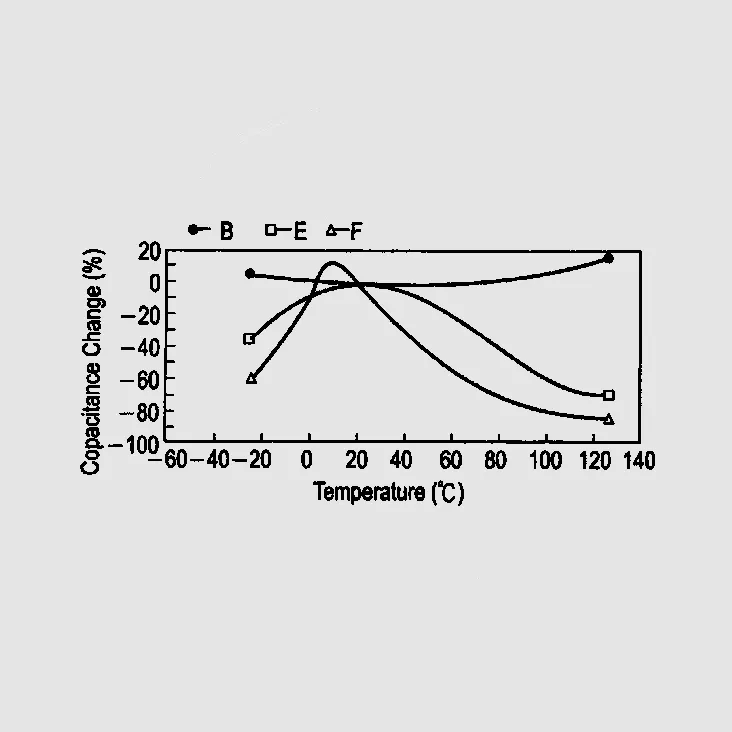

| Part Nr. | CN | Temp. | Material | Tol. | DMax. | P |
| [pF] | Char. | [%] | [mm] | [mm] | ||
| JN09PF220F | 220 | B | Y5P | ±10 | 9,0 | 12,5 |
| JN10PF470F | 470 | B | Y5P | ±10 | 9,0 | 12,5 |
| JN09NF001F | 1000 | E | Y5U | +20/-55 | 9,0 | 12,5 |
| JN12NF002.2F | 2200 | E | Y5U | +20/-55 | 12,0 | 12,5 |
| CN = Rated Capacitance, Temp. Char. = Temperature Characteristics, Mat. = Ceramic Material, Tol. = Capacitance Tolerance | ||||||
| ||||||
| Norms |
| EN132400:1994, IEC384-12 2nd Ed(1993), IEC60384-14 2nd Ed., UL1414, C22.2 No.1 |
|
| Approvals |
         10, CB |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces Form of delivery: Bulk |
|
| Manufacturer |
| Jya-Nay http://www.jyanay.com.tw |
|
Produktfiler
