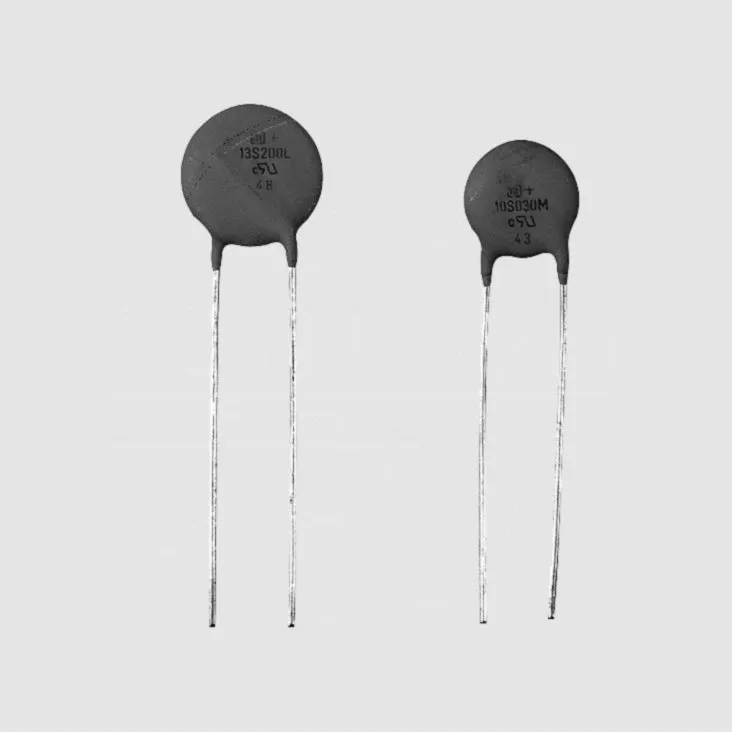

NTC Inrush Current Limiters 25R 2,0A
Varenummer:
102-596
Varekode: JNR10S250LYL
Vægt: 1 g
12 stk.
på lager
Gruppe:
C4017
JOYIN NTC Inrush Current Limiters
Series: JNR10S, JNR13S
Style: Bulk
Tolerance: 15%, 20%
Pitch: 7,5mm
JOYIN NTC Inrush Current Limiters
Series: JNR10S, JNR13S
Style: Bulk
Tolerance: 15%, 20%
Pitch: 7,5mm
| Features |
| High thermal and electrical stability Low dissipation in steady-state |
 |
| Application |
| To protect against damaging levels of inrush current at start up in switching power supplies, monitors and PCs. |
|
| Technical Specifications |
| |
| Resistance Tolerance, DRN/RN: | See Table |
| Rated Temperature: | 25C |
| Operating Temperature: | -30...+125C |
| |
| Part Nr. | R25 | DRN/RN | IMax. | RIMax. | hth | Tth | B±10% |
| JNR_ | [W] | ±[%] | [A] | [W] | [mW/C] | [s] | (K) |
| 10S2R5MYL | 2,5 | 20 | 5,0 | 0,100 | 10 | 41 | 2750 |
| 10S050MYL | 5,0 | 20 | 4,0 | 0,176 | 10 | 45 | 2750 |
| 10S100LYL | 10 | 15 | 3,0 | 0,270 | 11 | 45 | 3000 |
| 10S160LYL | 16 | 15 | 2,0 | 0,400 | 12 | 50 | 3000 |
| 10S250LYL | 25 | 15 | 2,0 | 0,635 | 12 | 53 | 3000 |
| 13S2R5MYL | 2,5 | 20 | 6,0 | 0,094 | 14 | 65 | 2750 |
| 13S050MYL | 5,0 | 15 | 5,0 | 0,115 | 13 | 63 | 3000 |
| 13S070LYL | 7,0 | 15 | 4,0 | 0,173 | 13 | 64 | 3000 |
| 13S100LYL | 10 | 15 | 4,0 | 0,210 | 15 | 65 | 3000 |
| 13S160LYL | 16 | 15 | 3,0 | 0,386 | 16 | 68 | 3000 |
| R25 = Resistance at 25C, DRN/RN = Resistance Tolerance, IMax. = Max. Current, RIMax. = Resistance at IN, hth= Thermal Conductance, Tth = Thermal Time Constant, B±10% = B Value | |||||||
| |||||||
| Dimensions |
| Part Nr. | Dmax. | d±0,05 | F±1,0 | Tmax. | Hmax. | H1 | Lmin. |
| JNR_ | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] |
| 10S2R5MYL | 12 | 0,8 | 7,5 | - | 18 | 5 | 24 |
| 10S050MYL | 12 | 0,8 | 7,5 | 5,5 | 18 | 5 | 24 |
| 10S100LYL | 12 | 0,8 | 7,5 | 6,0 | 18 | 5 | 24 |
| 10S160LYL | 12 | 0,8 | 7,5 | 5,0 | 18 | 5 | 24 |
| 10S250LYL | 12 | 0,8 | 7,5 | 5,5 | 18 | 5 | 24 |
| 13S2R5MYL | 15 | 0,8 | 7,5 | 5,5 | 21 | 5 | 24 |
| 13S050MYL | 15 | 0,8 | 7,5 | 5,0 | 21 | 5 | 24 |
| 13S070LYL | 15 | 0,8 | 7,5 | 6,0 | 21 | 5 | 24 |
| 13S100LYL | 15 | 0,8 | 7,5 | 7,5 | 21 | 5 | 24 |
| 13S160LYL | 15 | 0,8 | 7,5 | 5,5 | 21 | 5 | 24 |
| |||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces |
|
| Manufacturer |
 |
| http://www.joyin.com.tw |
|
