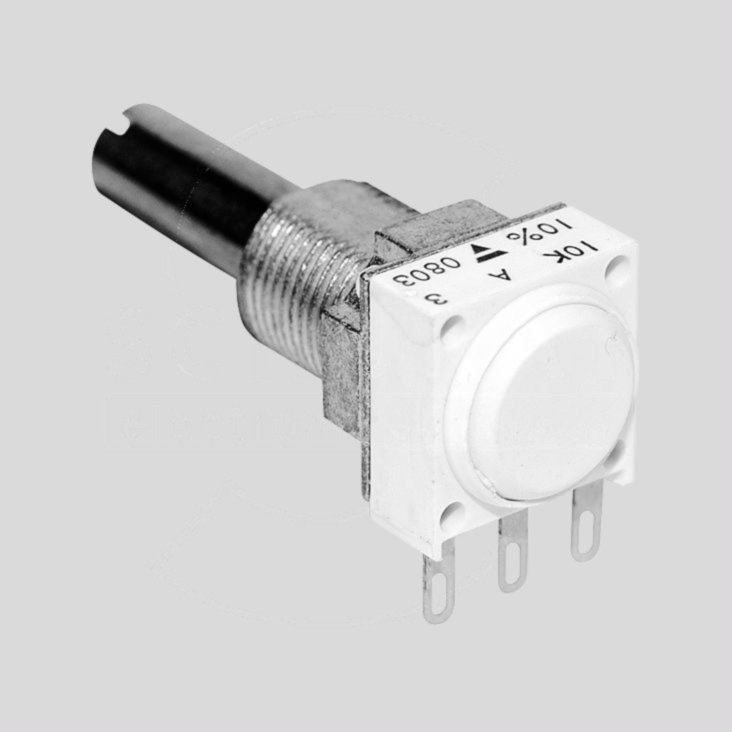

Cermet Potentiometer Mono Lin 10K P11S1V0FLSY00103KA
Varenummer:
102-575
Varekode:
P11VYN010K
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
C3211
VISHAY Cermet Precision Potentiometers
Series: P11S
Linear
Power: 1W
Shaft: Metal Ø6mm

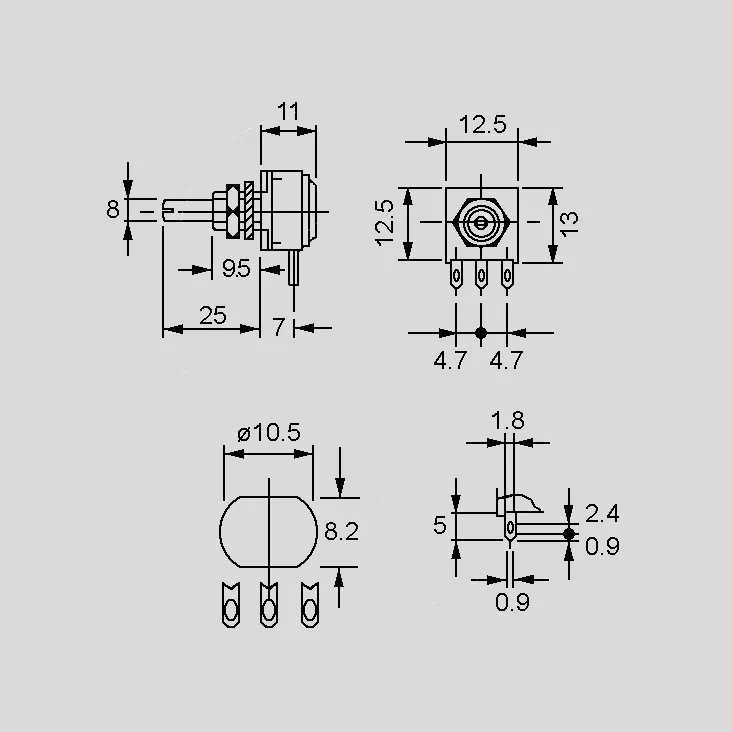

Housing: 12,5x12,5mm
C3211
VISHAY Cermet Precision Potentiometers
Series: P11S
Linear
Power: 1W
Shaft: Metal Ø6mm
Housing: 12,5x12,5mm
| Technical Specifications |
 | |
| Power Rating (TU = 70°C): | 1W |
| Hold-off Voltage: | 350V |
| Dielectric Strength (RMS): | 1500V |
| Insulation Resistance: | 106MW |
| Standard Tolerance: | ±10% |
| Resistive Element: | Cermet |
| End Resistance (Typ.): | 2W |
| Electrical Travel: | 270° ±10° |
| Mechanical Travel: | 300° ±5° |
| Operating Torque, Max.: | 0,4...1,8Ncm |
| Stop End Torque, Max.: | 80Ncm |
| Temperature Range: | -55...+125°C |
| Temperature Coefficient (Typ.): | ±150ppm/°C |
| Climatic Category: | 55/125/56 |
| Sealing: | IP64 |
| |
| Part Nr. | R | PMax. | UMax. | IMax. |
| [W] | [W] | [V] | [mA] | |
| P11VYN100U | 100 | 1 | 10 | 100 |
| P11VYN500U | 500 | 1 | 22,4 | 44,7 |
| P11VYN001K | 1K | 1 | 31,6 | 31,6 |
| P11VYN005K | 5K | 1 | 70,7 | 14,1 |
| P11VYN010K | 10K | 1 | 100 | 10,0 |
| P11VYN050K | 50K | 1 | 224 | 4,47 |
| P11VYN100K | 100K | 1 | 316 | 3,16 |
| P11VYN500K | 500K | 0,25 | 350 | 0,7 |
| P11VYN001M | 1M | 0,12 | 350 | 0,35 |
| R = Resistance, PMax. = Power, Max. (+70°C), UMax. = Operating Voltage, Max., IMax. = Transmission Current, Max. | ||||
| ||||
| Norms |
| CECC41000 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
Vishay/Sfernice |
| http://www.vishay.com |
|
Stregkode:
102575
Intern reference:
102575
Varekode:
P11VYN010K
