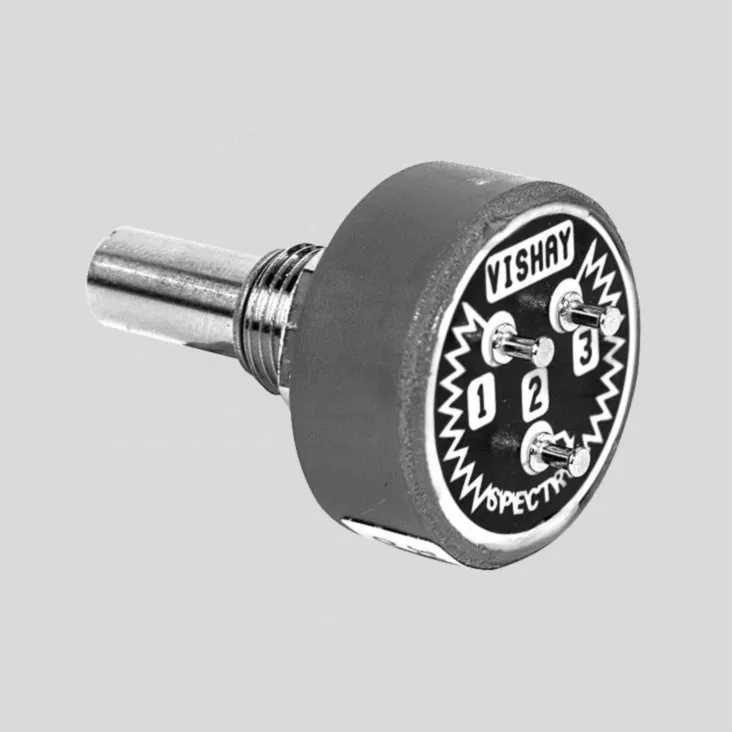

Potentiometer 20%/2% Mono Lin 10K 357B0103MAB251S22
Varenummer:
102-570
Varekode:
P357K010
Vægt:
20 g
Lagerstatus:
Ikke på lager
Gruppe: C3210
VISHAY Conductive Plastic Precision Potentiometers
Series: 357
Linear
Power: 1W
Shaft: Metal, Ø6,35mm
Housing: Ø22,2mm
VISHAY Conductive Plastic Precision Potentiometers
Series: 357
Linear
Power: 1W
Shaft: Metal, Ø6,35mm
Housing: Ø22,2mm
| Technical Specifications |
 | |
| Power Rating (TU = 70°C): | 1W |
| Dielectric Strength (RMS): | 1000V |
| Insulation Resistance: (500V DC): | 1000MW |
| Standard Tolerance: | ±20% |
| Resistive Element: | Conductive Plastic |
| End Resistance (Typ.): | 0,5% from Final Value |
| Rotation Angle | |
| Mechanical: | 360° continuous |
| Electrical: | 340° ±3° |
| Operating Torque, Max.: | 3,68mNm |
| Temperature Range: | -55...+125°C |
| Weight: | 17,5g |
| |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.vishay.com |
|
Stregkode:
460-7447
Intern reference:
102570
Varekode:
P357K010
