• Excellent high temperature, high voltage and current ratings
• For professional applications
|
 |
Electrical Specifications
|
|
|
|
Taper:
|
Linear
|
Power Rating (TU = 70°C):
|
0,5W
|
Operating Voltage, Max.:
|
200V DC
|
Resistance Tolerance:
|
±10%
|
End Resistance, Min.:
|
2W or 1%xRn
|
Contact Resistance, Min.:
|
3W or 2%xRn
|
Temperature Range:
|
-55...+125°C
|
|
Mechanical Specifications
|
|
|
|
Rotation
|
Mechanical:
|
260°
|
Electrical:
|
220°
|
Stop Strength:
|
50mNm
|
Operating Torque:
|
20mNm
|
|
|
|
|

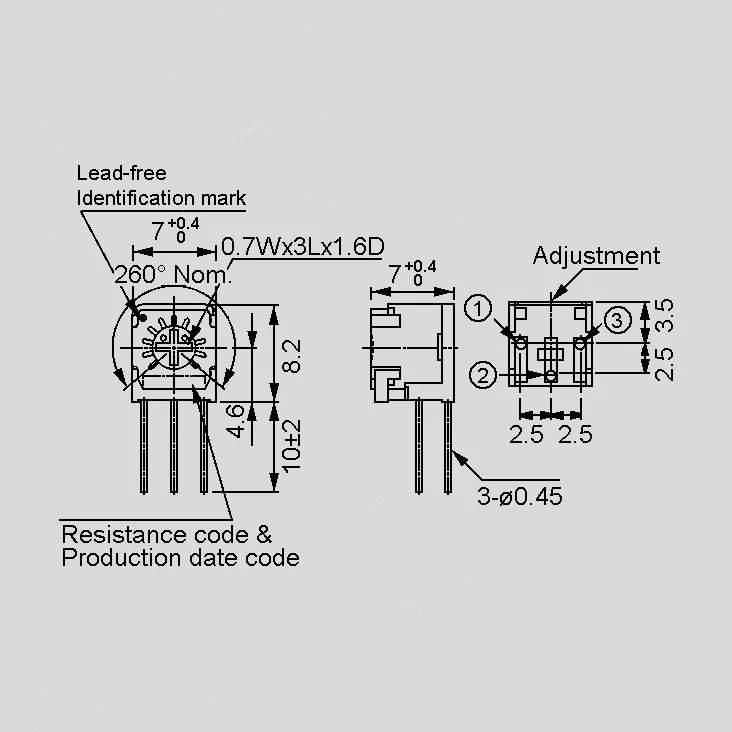

Length x Width x Height:
|
7,0x7,0x8,2mm
|
Pitch:
|
5x2,5mm
|
|
| Labelling |
Resistance and production date code
|
|
|
