Trimmer Top Adjust P5/2,5 500K
Varenummer:
102-557
Varekode: FT63EPK500
Vægt: 0 g
51 stk.
på lager
Gruppe:
C2316
COPAL Cermet Trimmers
Series: FT63EP
Top Adjustment
Power: 0,5W
Shaft: Crossed Slot
Pitch: 5,0/2,5mm
Housing: 7,0x5,8mm
COPAL Cermet Trimmers
Series: FT63EP
Top Adjustment
Power: 0,5W
Shaft: Crossed Slot
Pitch: 5,0/2,5mm
Housing: 7,0x5,8mm
| Features |
| Excellent high temperature, high voltage and current ratings For professional applications |
 |
| Electrical Specifications |
| |
| Taper: | Linear |
| Power Rating (TU = 70C): | 0,5W |
| Operating Voltage, Max.: | 200V DC |
| Resistance Tolerance: | ±10% |
| Residual Resistance, Min.: | 2W or 1%xRn |
| Contact Resistance, Min.: | 3W or 2%xRn |
| Temperature Range: | -55...+125C |
| |
| Mechanical Specifications |
| |
| Rotation | |
| Mechanical: | 260 |
| Electrical: | 220 |
| Stop Torque: | 50mNm |
| Operating Force: | 20mNm |
| |

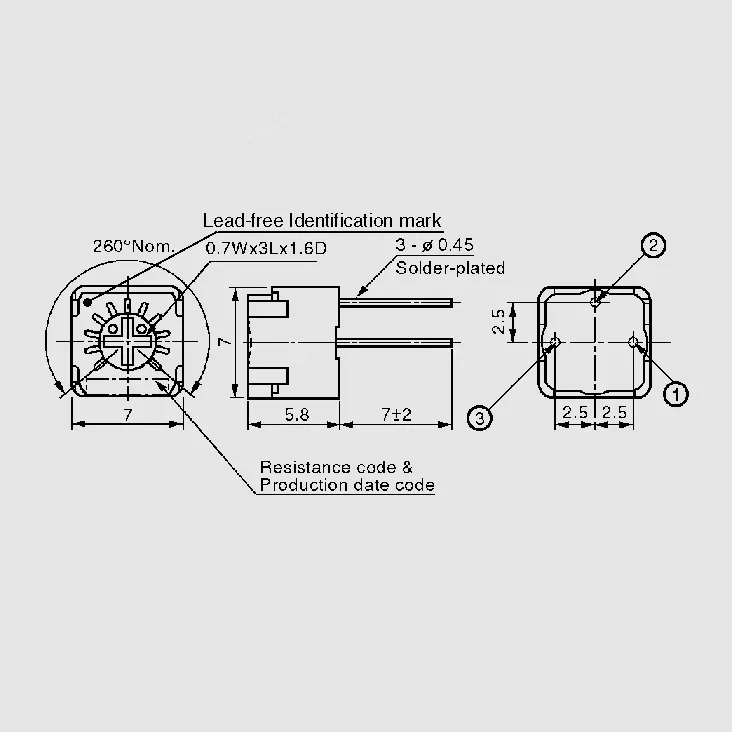

| Dimensions |
| |
| Length x Width x Height: | 7,0x7,0x5,8mm |
| Pitch: | 5x2,5mm |
| |
| Labelling |
| Resistance and production date code |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 25 pieces |
|
| Manufacturer |
| Copal http://www.nidec-copal-electronics.com |
|
