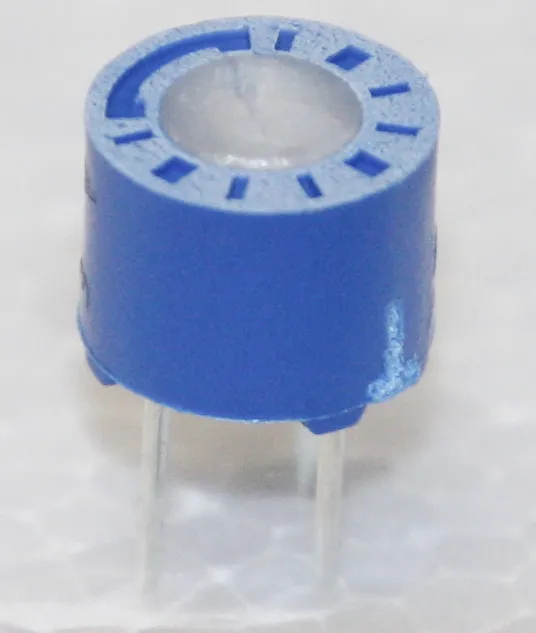

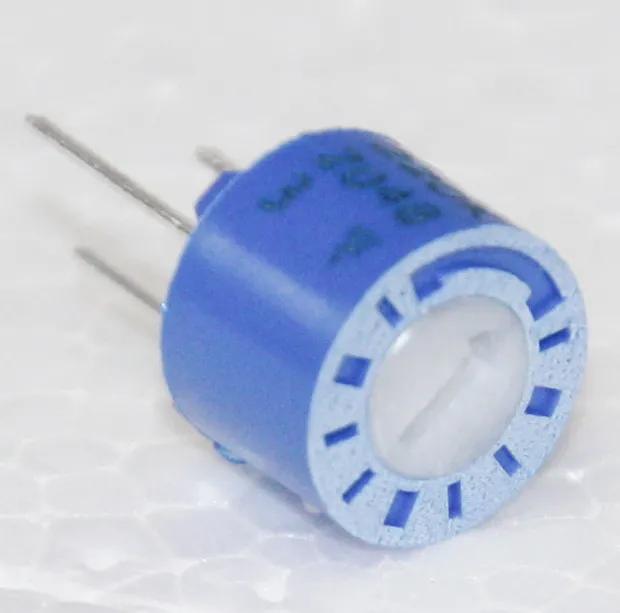

Trimmer Top Adjust P5/2,5 220K
Varenummer:
102-546
Varekode: T7YAK220
Vægt: 0 g
18 stk.
på lager
Gruppe:
C2313
VISHAY Cermet Trimmers
Series: T7YA
Top Adjustment
Power: 0,5W
Shaft: Arrow Slot
Pitch: 5,0/2,5mm
Housing: 7x6mm
VISHAY Cermet Trimmers
Series: T7YA
Top Adjustment
Power: 0,5W
Shaft: Arrow Slot
Pitch: 5,0/2,5mm
Housing: 7x6mm
| Features |
| High stability Low temperature coefficient Easy to read scale only 7mm (0.275) in diameter sealed plastic case |
 |
| Electrical Specifications |
| |
| Taper: | Linear |
| Power Rating (TU = 85C): | 0,5W |
| Operating Voltage, Max.: | 250V |
| Resistance Tolerance: | ±20% |
| Insulation Resistance: | 106MW |
| Contact Resistance, Min.: | 3W or 3% |
| Temperature Coefficient: | 100ppm/K |
| Temperature Range: | -55...+125C |
| Climatic Category: | 55/100/56 |
| Protection Class: | IP64 |
| |
| Mechanical Specifications |
| |
| Rotation | |
| Mechanical: | 300 ±5 |
| Electrical: | 270 ±15 |
| Stop Torque: | 4Ncm |
| Operating Force: | 2Ncm |
| Weight: | 0,5g |
| |
| Dimensions |
| |
| Width x Height: | 7,0x6,0mm |
| Pitch: | 5x2,5mm |
| |
| Norms |
| CECC 41100 |
|
| Labelling |
| Resistance value in accordance with EIA-Code, date code |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 25 pieces |
|
| Manufacturer |
Vishay/Sfernice |
| http://www.vishay.com |
|
