SMD Resistor 5% 4x1K
Varenummer:
102-519
Varekode: SNR06034K001-5
Vægt: 0 g
5000 stk.
på lager
Specifikationer
| Tolerance | ±5 % |
|---|---|
| Modstand | 1 kΩ |
| Effekt, max. | 0.063 W |
| Features |
| • for High-density mounting • Convex Terminations • 8 Terminal Package with 4 isolated Resistors |
 |
| Technical Specifications |
|
|||||||||||||||||
| Tolerance: | �5% | Power Rating (70°C): | 0,063W | Operating Voltage, Max.: | 50Vrms | Insulation Resistance: | >10MW | Insulation Voltage (1 Min): | 100V AC/DC | Temperature Coefficient: | �200ppm/K | Temperature Range: | - 55°C...+155°C | Derating: | Linear from 70°C to 125°C (0W) | ||
|
|||||||||||||||||
| Terms of Delivery |

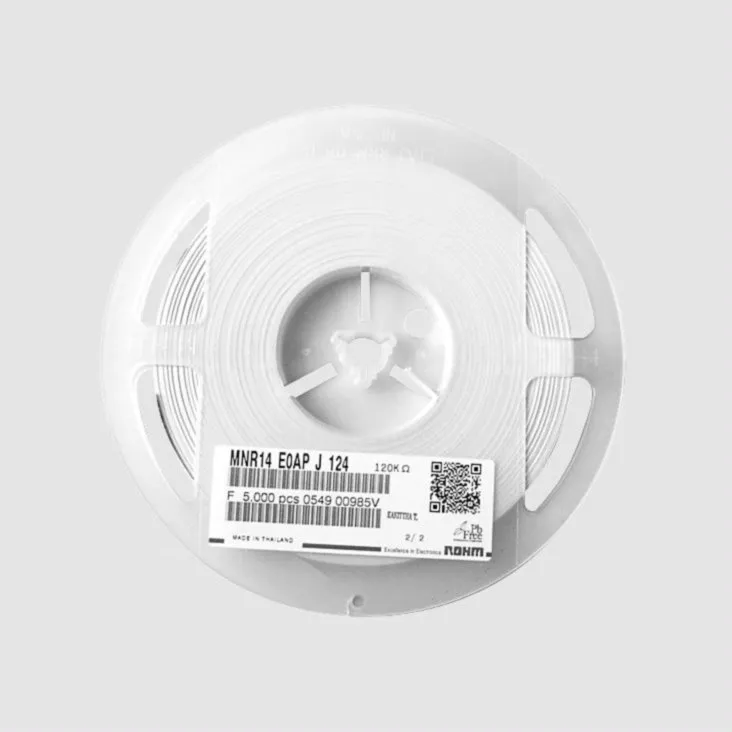

| Minimum order quantity: 1 PKU = 100 pieces Form of delivery: orders of less than 5000 pieces: 100 pieces on tape segment without leader tape and reel; orders of 5000 pieces: 5000 pieces on 180mm � reel on papertape. |
|
| Manufacturer |
  |
| http://www.rohm.com http://www.vishay.com |
|
TC164-JR-071K
Produktfiler
SMD Resistor 5% 4x1K
102-519
/ SNR06034K001-5
5000 stk.
på lager
Specifikationer
- Tolerance ±5 %
- Modstand 1 kΩ
- Effekt, max. 0.063 W
| Features |
| • for High-density mounting • Convex Terminations • 8 Terminal Package with 4 isolated Resistors |
|
| Technical Specifications |
|
|||||||||||||||||
| Tolerance: | �5% | Power Rating (70°C): | 0,063W | Operating Voltage, Max.: | 50Vrms | Insulation Resistance: | >10MW | Insulation Voltage (1 Min): | 100V AC/DC | Temperature Coefficient: | �200ppm/K | Temperature Range: | - 55°C...+155°C | Derating: | Linear from 70°C to 125°C (0W) | ||
|
|||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100 pieces Form of delivery: orders of less than 5000 pieces: 100 pieces on tape segment without leader tape and reel; orders of 5000 pieces: 5000 pieces on 180mm � reel on papertape. |
|
| Manufacturer |
| |
| http://www.rohm.com http://www.vishay.com |
|
TC164-JR-071K
