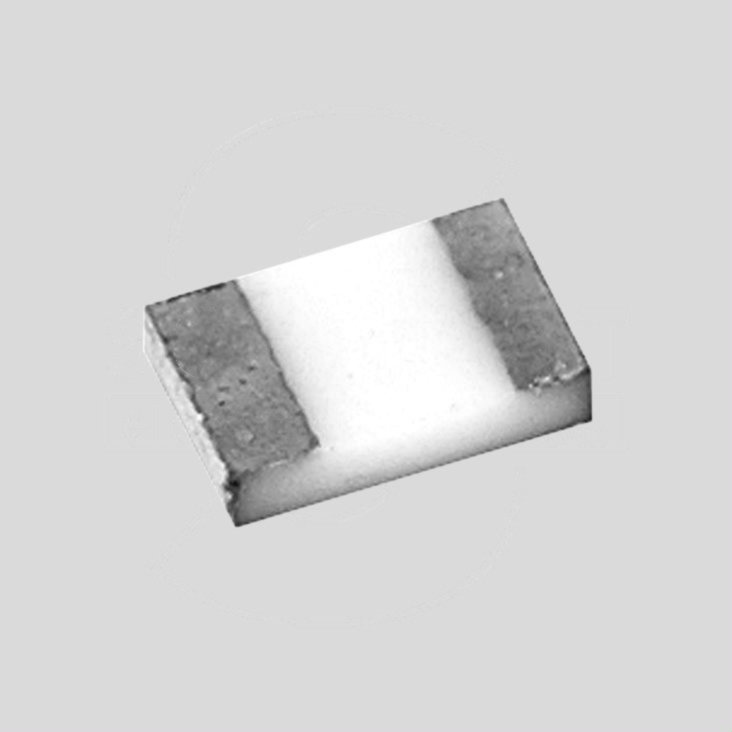

SMD Resistor 1206 0,1% 1M
Varenummer:
102-255
Varekode:
P1206E1004BN
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
C1881
VISHAY SMD Thin Film Chip Resistors
Series: P
Style: Bulk
Power: 0,125W, 0,2W, 0,33W
Tolerance: 0,1%
Housing: 0603, 0805, 1206
VISHAY SMD Thin Film Chip Resistors
Series: P
Style: Bulk
Power: 0,125W, 0,2W, 0,33W
Tolerance: 0,1%
Housing: 0603, 0805, 1206
| Features |
| • Low temperature coefficient (TC = 25ppm/°C) • Low Tolerances to 0,1% • Approved according to MIL-PRF-55342G • Excellent overall stability |
 |
| Technical Specifications |
| |
| Resistance Tolerance: | ±0,1% |
| Rated Dissipation (70°C) | |
| P0603_: | 0,125W |
| P0805_: | 0,2W |
| P1206_: | 0,33W |
| Operating Voltage, Max. | |
| P0603_: | 75V |
| P0805_: | 150V |
| P1206_: | 200V |
| Temperature Coefficient: | 25ppm/K |
| Temperature Range: | -55...+155°C |
| Derating: | Linear from 70°C to 155°C (0W) |
| |

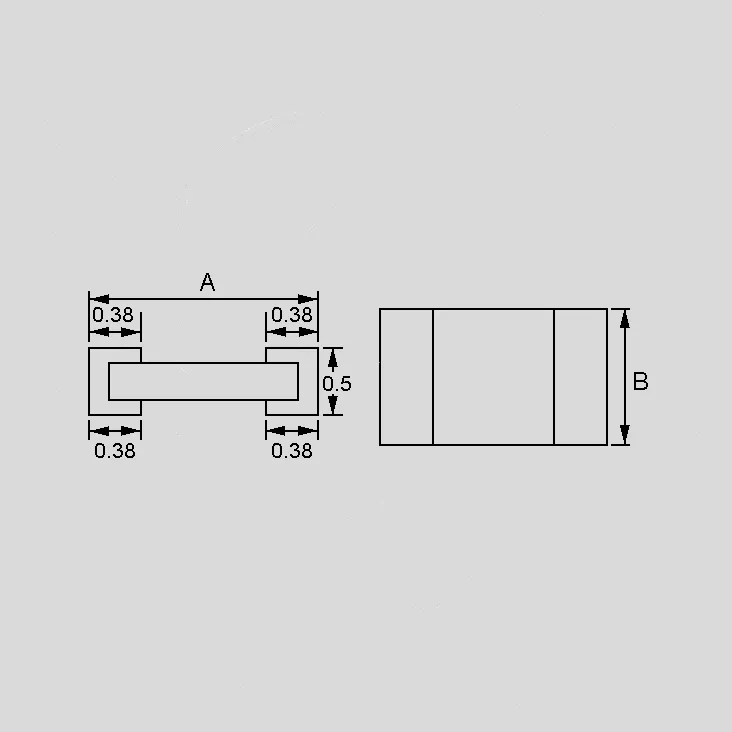

| Dimensions |
| Housing | A±0,152 | B±0,127 | |
| [mm] | [mm] | ||
| 0603 | 1,52 | 0,75 | |
| 0805 | 1,91 | 1,27 | |
| 1206 | 3,06 | 1,60 | |
| |||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece Form of delivery: bulk |
|
| Manufacturer |
Vishay/Sfernice |
| http://www.vishay.com |
|
Stregkode:
102255
Intern reference:
102255
Varekode:
P1206E1004BN
