SMD Resistor 1206 1% 11,0R Taped

Name: SMD Resistor 1206 1% 11,0R Taped
SKU: 102121
Price: 0.89 DKK
Availability: InStock

Varenummer: 102-121

Varekode: RL1206E011-1

Vægt: 0 g

3250 stk. på lager

Bestil inden kl. 14 i dag for afsendelse i dag

Yderligere 20000 stk. kan skaffes søndag d. 1/11

Vis lignende produkter i kategorien "SMD 1206 0.1% (3,20x1,60x0,60mm )"

Specifikationer

Komponent-pakning	Taped
Komponenthus	1206
Modstand	11 Ω
Tolerance	±1 %
Effekt, max.	0.25 W

VISHAY SMD Thick Film Resistors, LowCost
Series: CRCW1206...BC
Power: 0,25W
Tolerance: 1%
Housing: 1206

Resistance tolerance1 %
Rated power0.25 W
Housing1206
RoHS-Conform

Manufacturer

Vishay

Type

Thick film resistor

Series

CRCW1206BC

Product group

C1865

Housing

1206

Assembly Type

Features

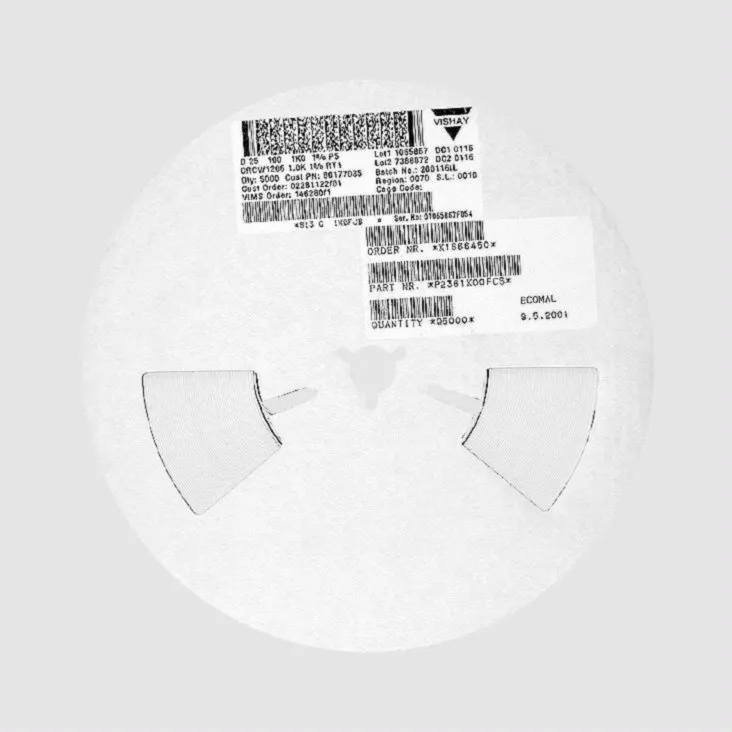

• SMD thick film resistor• Resistive film on high quality ceramic• Protective overglaze• Excellent stability in different environmental conditions• Original manufacturer packaging- CRCW1206_TABC: 5,000 pieces on 7-inch reel, Ø 180mm- CRCW1206_TBBC: 10,000 pieces on 10-inch reel, Ø 254mm

Form of Delivery

strapped

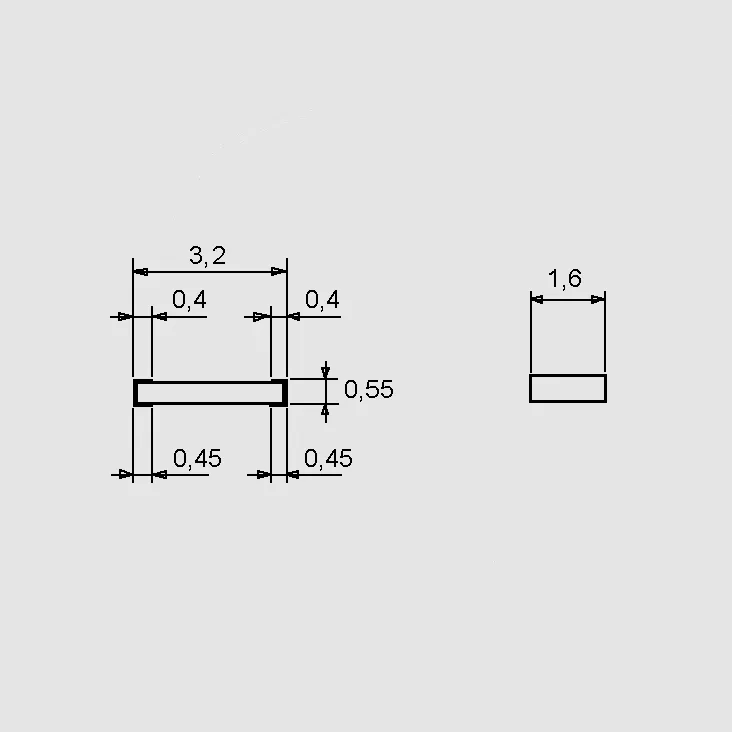

Dimensions and Weights

Dimension: Length

3.2 mm

Dimension: Width

1.6 mm

Dimension: Height

0.55 mm

Operating conditions

Operating Temperature Min.

-55 °C

Operating Temperature Max.

125 °C

Resistance tolerance

Thermal resistance

220 °C/W

Rated power

0.25 W

Max. Operating voltage (DC)

200 V DC

Max. Operating voltage (AC)

200 V AC

Temperature coefficient

100 ppm/°

Failure rate

3 x 10^-9/h

Climate category

55/125/56

Safety/Certifications

Standards

EN60115-1, EN140400, EN140401-802, IEC 60068-2-X, IEC 60286-3

Inkl. moms

v/10 Kr. 0,89

v/100 – Kr. 0,19
v/1000 – Kr. 0,06
v/5000 – Kr. 0,04

Produktfiler

Datasheet
