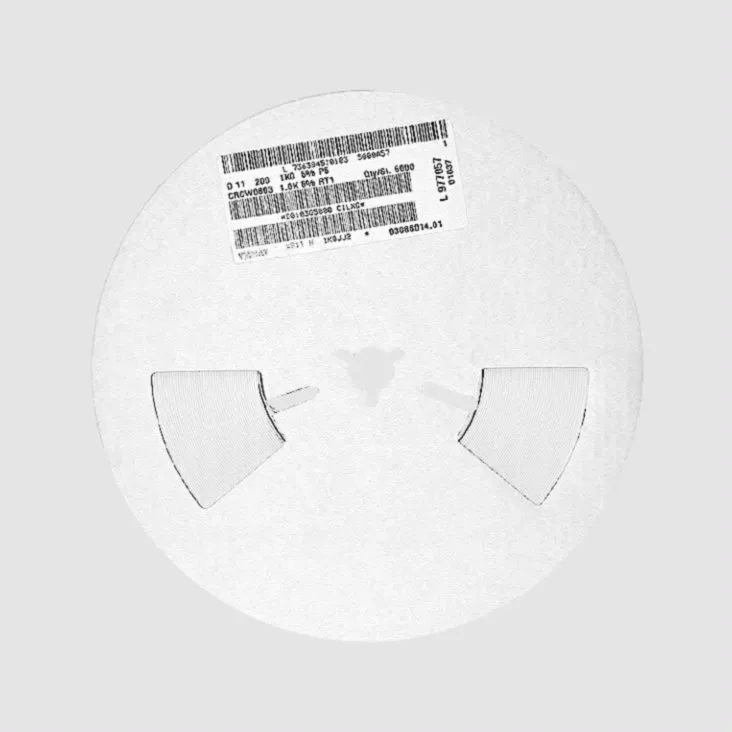

SMD Resistor 0805 1% 16K Taped

Name: SMD Resistor 0805 1% 16K Taped
SKU: 102075
Price: 0.89 DKK
Availability: OutOfStock

Varenummer: 102-075

Varekode: RL0805K016-1

Vægt: 0 g

0 stk. på lager

Vis lignende produkter i kategorien "SMD 0805 1% (2,00x1,25x0,50 mmmm)"

Specifikationer

Komponent-pakning	Taped
Modstand	16 kΩ
Tolerance	±1 %
Komponenthus	0805
Effekt, max.	0.125 W

VISHAY SMD Thick Film Resistors
Series: CRCW0805...BC
Power: 0,125W
Tolerance: 1%
Housing: 0805

Resistance tolerance1 %
Rated power0.125 W
Housing0805
RoHS-Conform

Manufacturer

Vishay

Type

Thick film resistor

Series

CRCW0805BC

Product group

C1845

Application

for commercial applications

Housing

0805

Assembly Type

Features

• SMD thick film resistor• Resistive film on high quality ceramic• Protective overglaze• Excellent stability in different environmental conditions• Original manufacturer packaging- CRCW0805_TABC: 5,000 pieces on 7-inch reel, Ø 180mm- CRCW0805_TBBC: 10,000 pieces on 10-inch reel, Ø 254mm

Form of Delivery

strapped

Dimensions and Weights

Dimension: Length

2 mm

Dimension: Width

1.25 mm

Dimension: Height

0.45 mm

Operating conditions

Operating Temperature Min.

-55 °C

Operating Temperature Max.

125 °C

Technical Features

Resistance tolerance

Thermal resistance

440 °C/W

Rated power

0.125 W

Max. Operating voltage (DC)

150 V DC

Max. Operating voltage (AC)

150 V AC

Temperature coefficient

100 ppm/°

Failure rate

3 x 10^-9/h

Climate category

55/125/56

Inkl. moms

v/10 Kr. 0,89

v/100 – Kr. 0,19
v/1000 – Kr. 0,06
v/5000 – Kr. 0,02

Produktfiler

Datasheet
