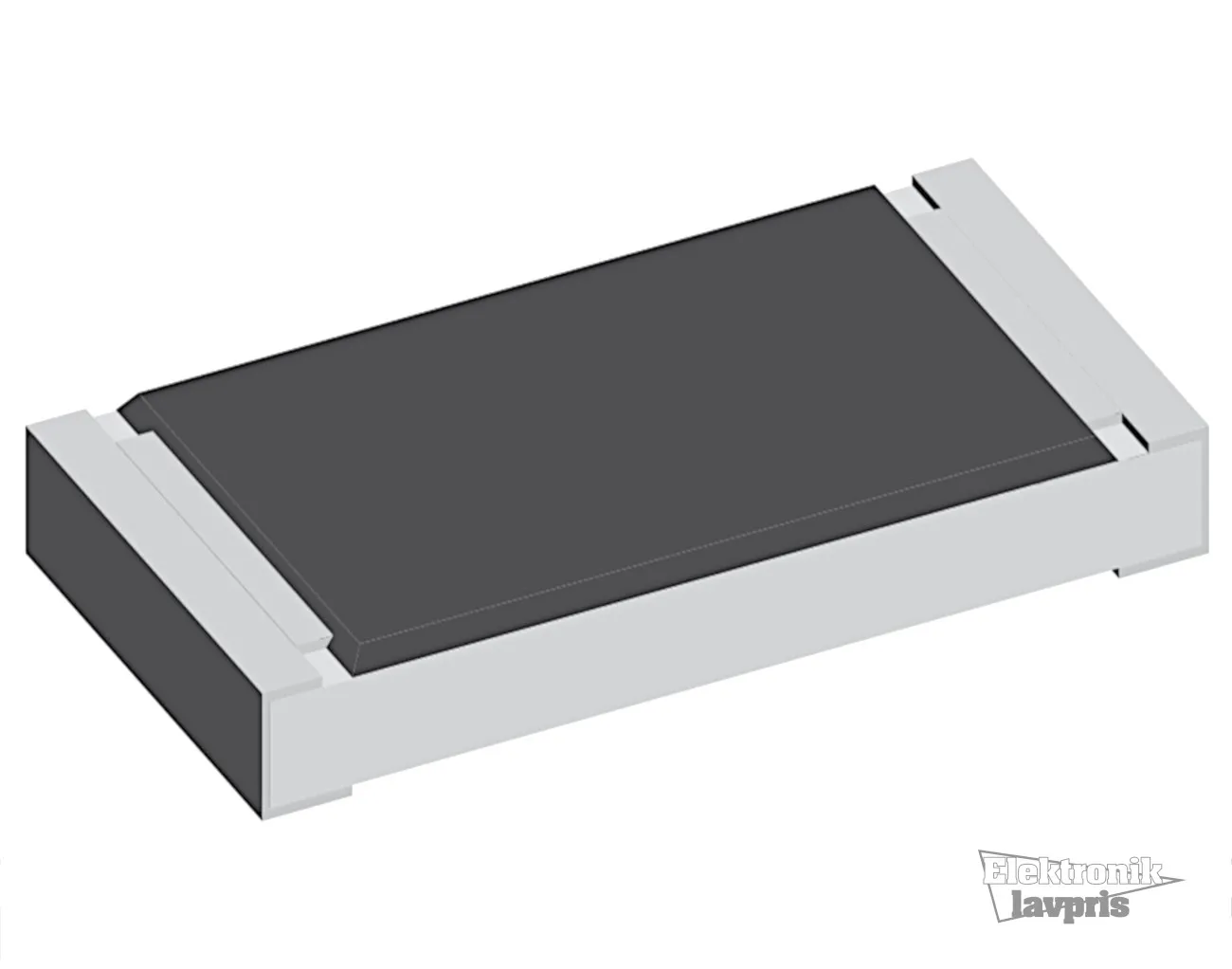

SMD Resistor 0603 1% 4,7K Taped

Name: SMD Resistor 0603 1% 4,7K Taped
SKU: 101909
Price: 0.10 DKK
Availability: InStock

Varenummer: 101-909

Varekode: RL0603K004,7-1

Vægt: 0 g

8500 stk. på lager

Vis lignende produkter i kategorien "SMD 0603 1% (1,60x0,80x0,50mm)"

Specifikationer

Komponent-pakning	Taped
Modstand	4.7 kΩ
Tolerance	±1 %
Komponenthus	0603
Effekt, max.	0.1 W

Features

• Resistive film on high quality ceramic
• Protective overglaze
• Excellent stability in different environmental conditions
• Suitable for commercial applications

Technical Speifications



Resistance Value:	Row E24
Tolerance:	±1%
Power Rating (70°C):	0,1W
Operating Voltage, Max.:	75V_rms
Insulation Resistance:	>10⁹W
Thermal Resistance:	£550K/W
Temperature Coefficient:	±100x10^-6/K
Temperature Range:	- 55°C...+125°C
Climatic Category:	55/125/56
Failure Rate:	3x10^-9/h
Derating:	Linear from 70°C to 125°C (0W)

Manufacturer

http://www.vishay.com

Inkl. moms

v/100 Kr. 0,10

v/1000 – Kr. 0,04
v/5000 – Kr. 0,02

Produktfiler

SMD Resistor 0603 1% 4,7K Taped

101-909

/ RL0603K004,7-1

8500 stk. på lager

Specifikationer

Komponent-pakning Taped
Modstand 4.7 kΩ
Tolerance ±1 %
Komponenthus 0603
Effekt, max. 0.1 W

Features

• Resistive film on high quality ceramic
• Protective overglaze
• Excellent stability in different environmental conditions
• Suitable for commercial applications

Technical Speifications



Resistance Value:	Row E24
Tolerance:	±1%
Power Rating (70°C):	0,1W
Operating Voltage, Max.:	75V_rms
Insulation Resistance:	>10⁹W
Thermal Resistance:	£550K/W
Temperature Coefficient:	±100x10^-6/K
Temperature Range:	- 55°C...+125°C
Climatic Category:	55/125/56
Failure Rate:	3x10^-9/h
Derating:	Linear from 70°C to 125°C (0W)

Manufacturer

http://www.vishay.com
