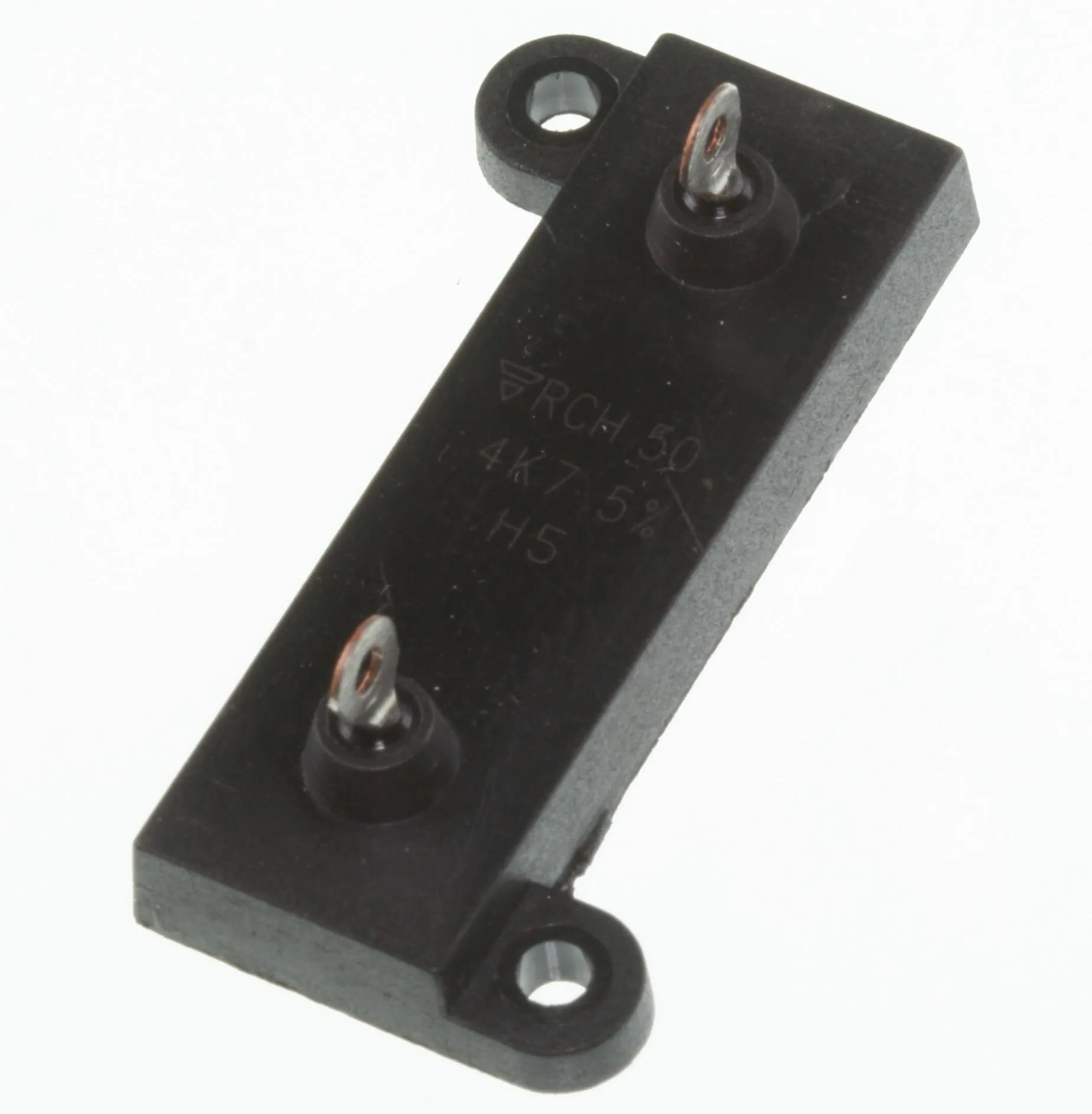

Resistor 50W 5% 4,7K
Varenummer:
101-581
Varekode: RCH50K004,7
Vægt: 9 g
7 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 96 stk. kan skaffes tirsdag d. 20/10
Vis lignende produkter i kategorien "Effekt 50W"
Specifikationer
| Produkt |
modstand
|
| Effekt, max. |
50
W
|
| Tolerance |
±5
%
|
| Modstand |
4.7
kΩ
|
• 50W at 25°C heatsink mounted (optional)
• Compact size
• Easy mounting
• High insulation: 106MW
|
 |
|
|
|
Resistance Value:
|
Row E12, Reduced
|
Tolerance:
|
±5%
|
Power Rating
|
Without Heatsink:
|
5,5W
|
With Heatsink1):
|
50W
|
Operating Voltage, Max.:
|
1285V
|
Dielectric Strength:
|
3500V
|
Temperature Coefficient
|
:
|
±250ppm/°C
|
>1W:
|
±150ppm/°C
|
Thermal Resistance:
|
0,8K/W
|
Temperature Range:
|
-55...+125°C
|
Climatic Category:
|
55/125/56
|
Derating:
|
See Curve
|
1) For calculation of heatsink please see values below Note
|
|
P = DT / [RTH(j-c) + RTH(c-a)]
P = Expressed in W
DT = Difference between maximum working temperature (125°C) and room temperature
RTH(j-c) = Thermal resistance of the component
RTH(c-a) = Thermal resistance of the heatsink and quality of fastening device
Example:
Ambient Temperature 30°C, Power Rating: 70W
1) P = DT / [RTH(j-c) + RTH (c-a)]
2) DT = 125°C - 30°C = 95 K
3) [RTH(j-c) + RTH (c-a)] = DT / P = 95K / 70W = 1,36K/W4) RTH (c-a) = 1,36K/W - 1K/W = 0,36K/W
|
|
|
