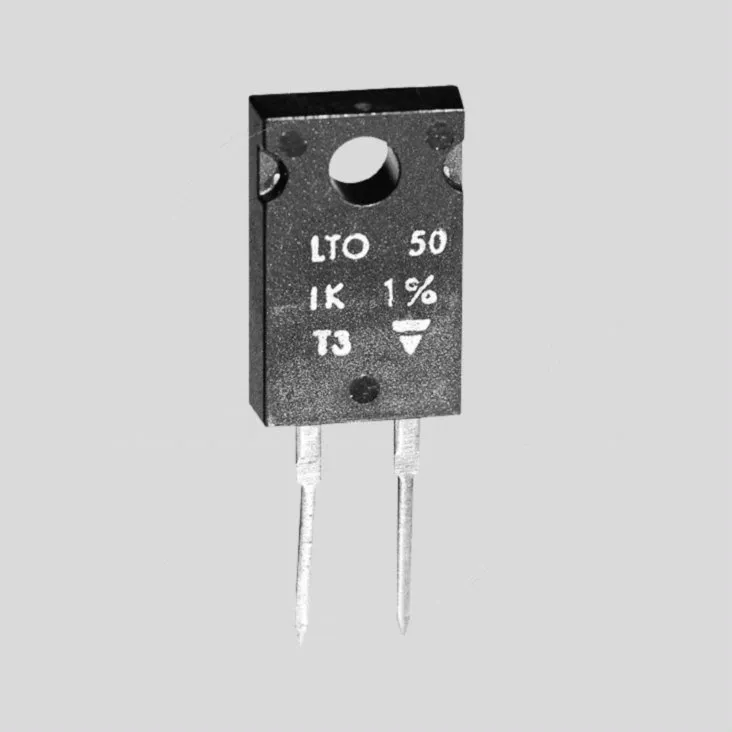

Resistor TO220 50W 1% 0,47R
Varenummer:
101-543
Varekode: LTO050FR4700FTE3
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Specifikationer
| Komponenthus | TO220 |
|---|---|
| Produkt | modstand |
| Effekt, max. | 50 W |
| Tolerance | ±1 % |
| Modstand | 0.47 Ω |
Produktoplysninger
- RESISTOR, 50W 0R47 1%
- Product Range: VISHAY - LTO 50 Series
- Resistance: 0.47ohm
- Power Rating: 50W
- Resistance Tolerance: ± 1%
- Resistor Case Style: Radial Leaded
- Resistor Element Material: Thick Film
- Temperature Coefficient: ± 150ppm/°C
- Voltage Rating: 250V
- Dielectric Strength VAC: 1500V

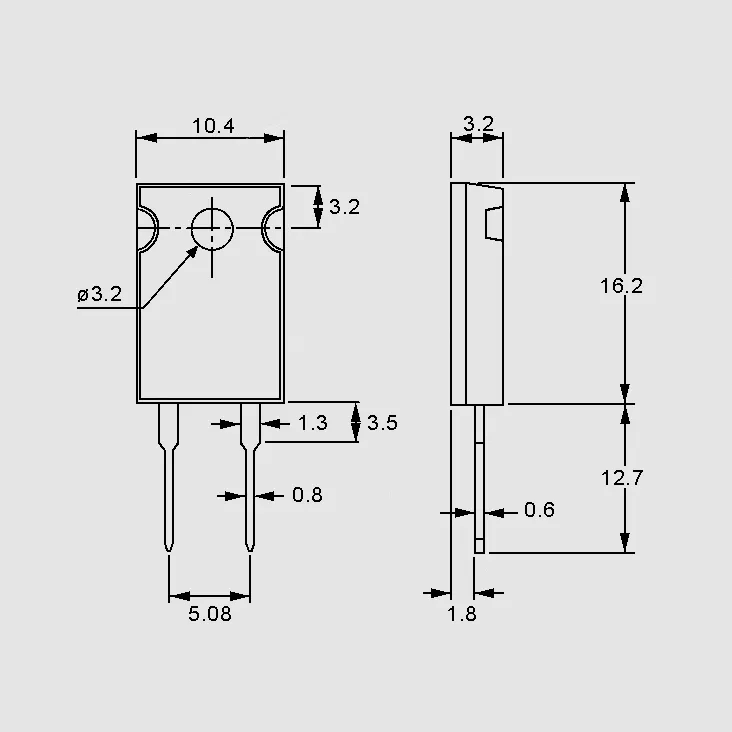

- External Depth: 3.2mm
- External Length / Height: 16.2mm
- External Width: 10.4mm
- Operating Temperature Max: 150°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Resistor Mounting: Through Hole
- Series: LTO
- Temperature Coeff. +: 150ppm/°C
- Temperature Coeff. -: 150ppm/°C
- Tolerance +: 1%
- Tolerance -: 1%
