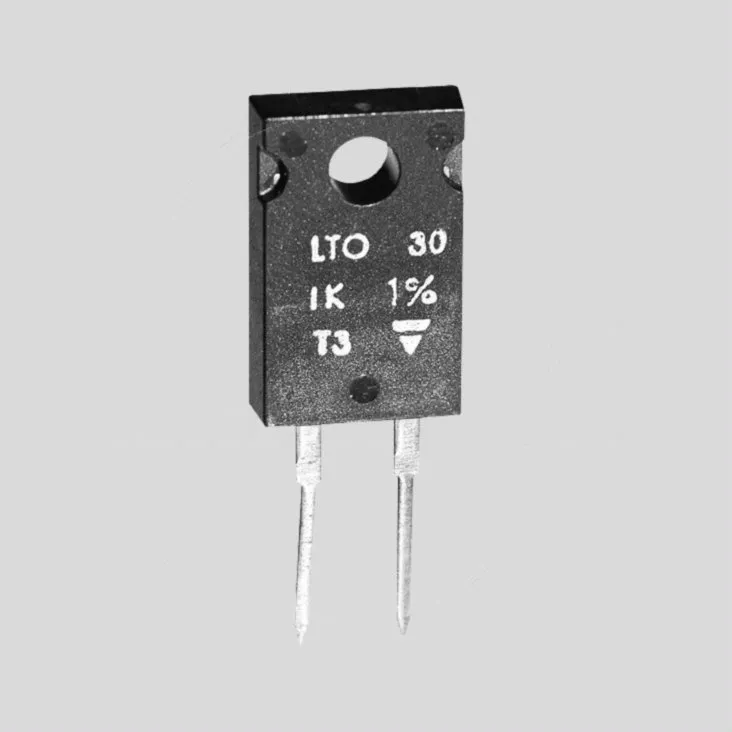

• 30W at 25°C and heatsink mounted (optional)
• Low inductance
• Compact size
• Easy to mount due to TO220-package
• direct ceramic mounting design (no metal tab)
|
 |
|
|
|
Resistance Value:
|
Row E12
|
Tolerance:
|
±1%
|
Power Rating
|
Without Heatsink (25°C):
|
2,25W
|
With Heatsink1) (25°C):
|
30W
|
Operating Voltage, Max.:
|
250V
|
Dielectric Strength:
|
1500Vrms
|
Temperature Coefficient
|
³0,1W:
|
±250ppm/°C
|
³0,5W:
|
±150ppm/°C
|
Thermal Resistance:
|
4,2K/W
|
Temperature Range:
|
-55...+150°C
|
Climatic Category:
|
55/155/156
|
Derating:
|
See Curve
|
1) For calculation of heatsink please see values below Note.
|
|
P = DT / [RTH(j-c) + RTH(c-a)]
P = Expressed in W
DT = Difference between maximum working temperature (155°C) and room temperature
RTH(j-c) = Thermal resistance of the component
RTH(c-a) = Thermal resistance of the heatsink and quality of fastening device
Example:
Ambient temperature 30°C, Power Rating: 10W
1) P = DT / [RTH(j-c) + RTH (c-a)]
2) DT = 155°C - 30°C = 125K
3) [RTH(j-c) + RTH (c-a)] = DT / P = 125K / 10W = 12,5K/W4) RTH (c-a) = 12,5K/W - 4,2K/W = 8,3K/W
|
|
|
