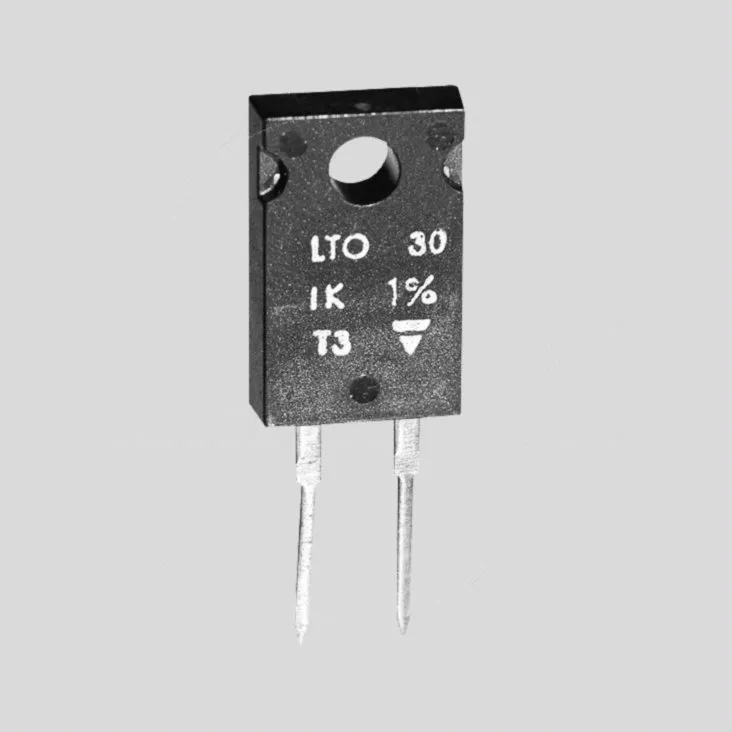

Resistor TO220 30W 1% 2,2R
Varenummer:
101-534
Varekode: LTO030F2R200FTE3
Vægt: 2 g
Vis lignende produkter i kategorien "Effekt 30W"
Specifikationer
| Komponenthus |
TO220
|
| Produkt |
modstand
|
| Effekt, max. |
30
W
|
| Modstand |
2.2
Ω
|
| Tolerance |
±1
%
|
• 30W at 25°C and heatsink mounted (optional)
• Low inductance
• Compact size
• Easy to mount due to TO220-package
• direct ceramic mounting design (no metal tab) |
 |
|
| |
|
Resistance Value: |
Row E12 |
Tolerance: |
±1% |
Power Rating |
Without Heatsink (25°C): |
2,25W |
With Heatsink1) (25°C): |
30W |
Operating Voltage, Max.: |
250V |
Dielectric Strength: |
1500Vrms |
Temperature Coefficient |
³0,1W: |
±250ppm/°C |
³0,5W: |
±150ppm/°C |
Thermal Resistance: |
4,2K/W |
Temperature Range: |
-55...+150°C |
Climatic Category: |
55/155/156 |
Derating: |
See Curve |
| 1) For calculation of heatsink please see values below Note. |
|
P = DT / [RTH(j-c) + RTH(c-a)]
P = Expressed in W
DT = Difference between maximum working temperature (155°C) and room temperature
RTH(j-c) = Thermal resistance of the component
RTH(c-a) = Thermal resistance of the heatsink and quality of fastening device
Example:
Ambient temperature 30°C, Power Rating: 10W
1) P = DT / [RTH(j-c) + RTH (c-a)]
2) DT = 155°C - 30°C = 125K
3) [RTH(j-c) + RTH (c-a)] = DT / P = 125K / 10W = 12,5K/W4) RTH (c-a) = 12,5K/W - 4,2K/W = 8,3K/W |
|
|
