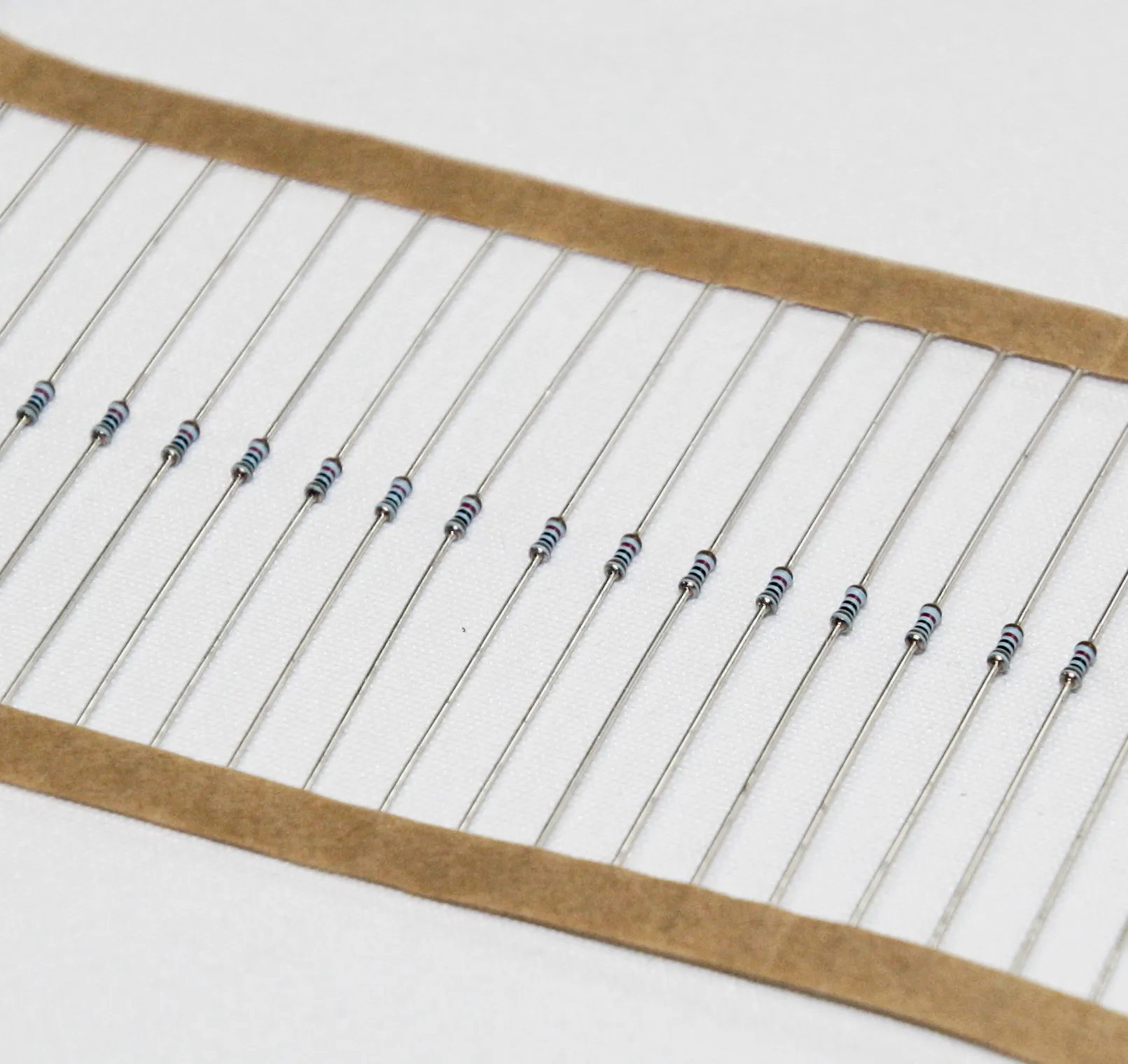

Resistor 0204 0,4W 1% 2,7K Taped

Varenummer: 101-417
Varekode: RMBA204K002,7
Vægt: 0 g
4600 stk. på lager
Vis lignende produkter i kategorien "Metalfilm 1% 0,4W HALF-SIZE 0204"
Specifikationer
Komponent-pakning Taped
Modstand 2.7  kΩ
Tolerance ±1  %
Komponenthus 0204
Effekt, max. 0.4  W
Features
• Approved according to CECC 40101-806
• Excellent overall stability
Technical Specifications
Resistance Value:
 Row E12
Resistance Tolerance:
 ±1%
Rated Dissipation (70°C):
 0,4W
Operating Voltage, Max.:
 200V AC/DC
Insulation Resistance:
 1W ... 10MW
Insulation Voltage (1 Min):
 300V
Temperature Coefficient:
 50ppm/K
Temperature Range:
 -55...+155°C
Failure Rate:
 £0,7x10-9/h
Terminal Strength, Axial:
 >30N
Derating:
 Linear from 70°C to 155°C (0W)
Weight:
 0,125g
Norms
CECC 40101-806
EN 60115-1 / 140100
Manufacturer

http://www.vishay.com
Inkl. moms
v/100 Kr. 0,19
  • v/1000 – Kr. 0,15
  • v/10000 – Kr. 0,10
