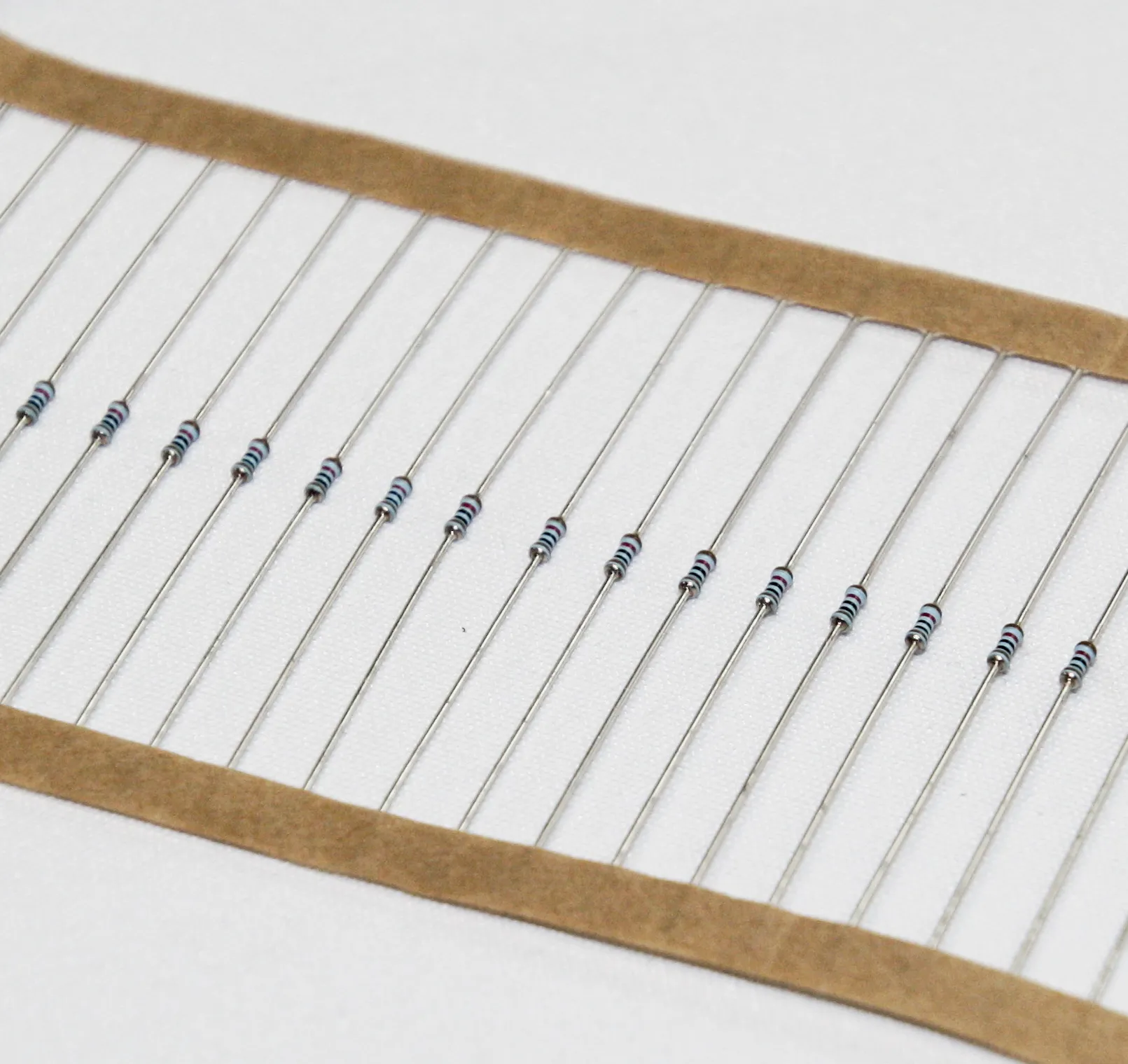

Resistor 0204 0,4W 1% 270R Taped
Varenummer:
101-405
Varekode: RMBA204E270
Vægt: 0 g
6300 stk.
på lager
Specifikationer
| Komponent-pakning | Taped |
|---|---|
| Modstand | 270 Ω |
| Tolerance | ±1 % |
| Komponenthus | 0204 |
| Effekt, max. | 0.4 W |
Gruppe:
C1214
VISHAY Metal Film Resistors
Series: MBA/SMA
Style: Taped
Power: 0,4W
Tolerance: 1%
Housing: 0204
VISHAY Metal Film Resistors
Series: MBA/SMA
Style: Taped
Power: 0,4W
Tolerance: 1%
Housing: 0204
| Features |
| Approved according to CECC 40101-806 Excellent overall stability |
 |
| Technical Specifications |
| |
| Resistance Tolerance: | ±1% |
| Rated Dissipation (70C): | 0,4W |
| Operating Voltage, Max.: | 200V AC/DC |
| Insulation Resistance: | 1W ... 10MW |
| Insulation Voltage (1 Min): | 300V |
| Temperature Coefficient: | 50ppm/K |
| Temperature Range: | -55...+155C |
| Failure Rate: | £0,1x10-9/h |
| Terminal Strength, Axial: | >30N |
| Derating: | Linear from 70C to 155C (0W) |
| Weight: | 0,125g |
| |
| Note |
| Please see product group C1110 for taped jumper wires and zero-ohm resistors. |
|
| Norms |
| CECC 40101-806 EN 60115-1 / 140100 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 500 pieces Form of delivery: Ammopack |
|
| Manufacturer |
 |
| http://www.vishay.com |
|
