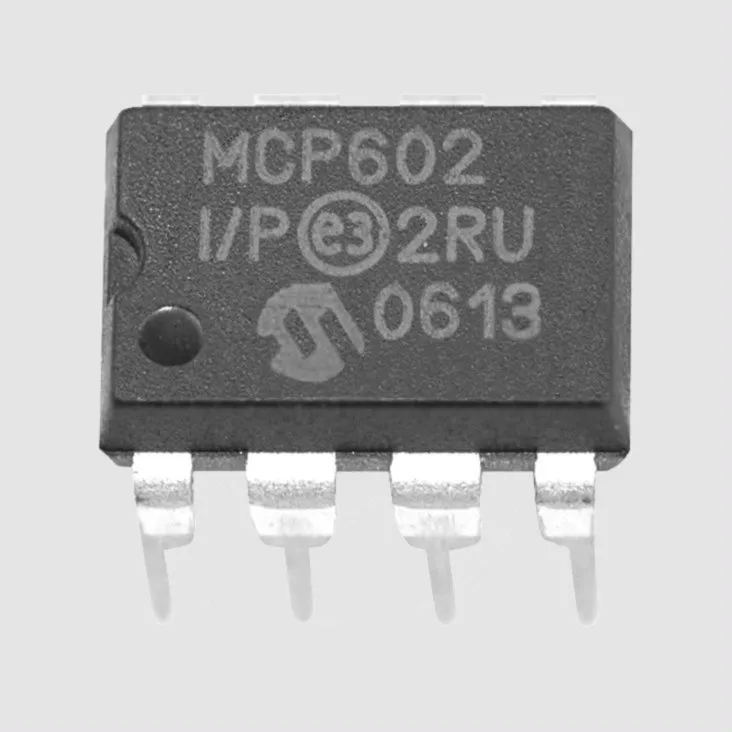

2xOp-Amp RtoR 300kHz 0,15V/us DIP8

Name: 2xOp-Amp RtoR 300kHz 0,15V/us DIP8
SKU: 100821
Price: 18.75 DKK
Availability: InStock

Varenummer: 100-821

Varekode: MCP6232-E/P

Vægt: 2 g

3 stk. på lager

Technical Specifications


Part Nr.	U_CC+	U_CC-	U_io	GBWP	SR	CMR
	[V]	[V]	[mV]	[MHz]	[V/μs]	[dB]
MCP601_	2,7...6,0	0	+-2,0	2,8	2,3	75
MCP602_	2,7...6,0	0	+-2,0	2,8	2,3	75
MCP603_	2,7...6,0	0	+-2,0	2,8	2,3	75
MCP604_	2,7...6,0	0	+-2,0	2,8	2,3	75
MCP619_	2,3...5,5	0	+-0,15	0,19	0,08	80
MCP6021_	2,5...5,5	0	+-0,5	10,0	7,0	70
MCP6022_	2,5...5,5	0	+-0,5	10,0	7,0	70
MCP6024_	2,5...5,5	0	+-0,5	10,0	7,0	70
MCP6041_	1,4...5,5	0	+-3,0	0,014	0,003	60
MCP6042_	1,4...5,5	0	+-3,0	0,014	0,003	60
MCP6044_	1,4...5,5	0	+-3,0	0,014	0,003	60
MCP6141_	1,4...5,5	0	+-3,0	0,1	0,024	60
MCP6142_	1,4...5,5	0	+-3,0	0,1	0,024	60
MCP6144_	1,4...5,5	0	+-3,0	0,1	0,024	60
MCP6231_	1,8...5,5	0	+-5,0	0,3	0,15	61
MCP6232_	1,8...5,5	0	+-5,0	0,3	0,15	61
MCP6234_	1,8...5,5	0	+-5,0	0,3	0,15	61
MCP6271_	2,0...5,5	0	+-3,0	2,0	0,9	65
MCP6272_	2,0...5,5	0	+-3,0	2,0	0,9	65
MCP6274_	2,0...5,5	0	+-3,0	2,0	0,9	65
MCP6281_	2,2...5,5	0	+-3,0	5,0	2,5	65
MCP6282_	2,2...5,5	0	+-3,0	5,0	2,5	65
MCP6284_	2,2...5,5	0	+-3,0	5,0	2,5	65
MCP6291_	2,4...5,5	0	+-3,0	10,0	7,0	65
MCP6292_	2,4...5,5	0	+-3,0	10,0	7,0	65
MCP6294_	2,4...5,5	0	+-3,0	10,0	7,0	65
TC913B_	+8	-8	+-0,03	1,5	2,5	100
TC7650_	4,5...16	0	+-0,005	2,0	2,5	120
TC7652_	5...16	0	+-0,005	0,4	1,0	120
U_CC+ = Positive Supply Voltage, U_CC- = Negative Supply Voltage, U_io = Max. Input Offset Voltage, GBWP = Typ. Gain Bandwidth Product, SR = Typ. Slew Rate, CMR = Min. Common-Mode Rejection Ratio

Manufacturer

http://www.microchip.com
