12bit Ser. ADC 8Ch SPI SO16
Varenummer:
100-474
Varekode: MCP3208-CI/SL
Vægt: 0 g
11 stk.
på lager
Gruppe:
A4275
MICROCHIP A/D Converters
Series: MCP_, TC_
Case: DIP/DIL, SO
MICROCHIP A/D Converters
Series: MCP_, TC_
Case: DIP/DIL, SO
| Technical Specifications |
| Part Nr. | Res | Ch | INL | fSamp | Interface | US |
| [Bit] | [LSB] | [ksps] | [V] | |||
| MCP3001_ | 10 | 1 | +-1 | 200 | SPI | 2,7...5,5 |
| MCP3004_ | 10 | 4 | +-1 | 200 | SPI | 2,7...5,5 |
| MCP3008_ | 10 | 8 | +-1 | 200 | SPI | 2,7...5,5 |

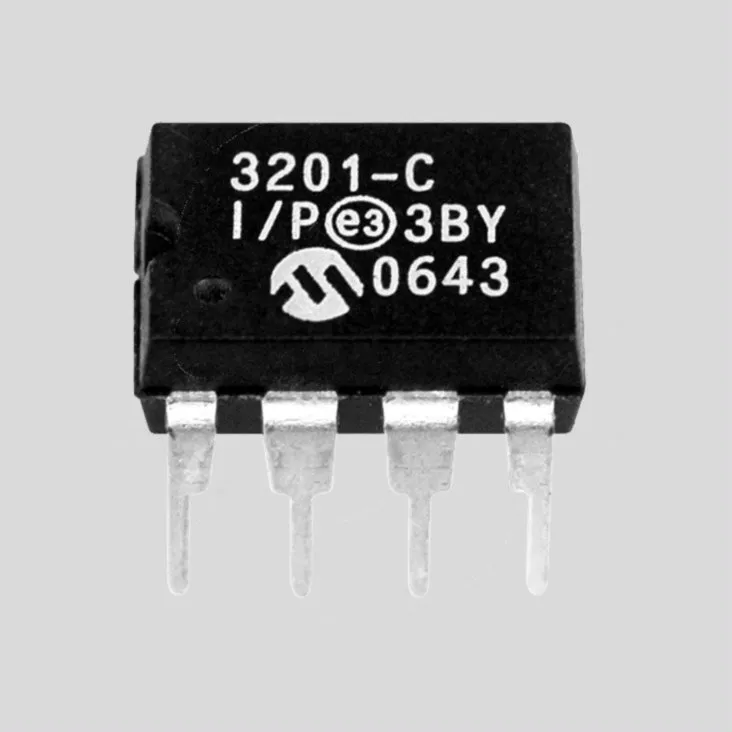

| MCP3201-B_ | 12 | 1 | +-1 | 100 | SPI | 2,7...5,5 |
| MCP3201-C_ | 12 | 1 | +-2 | 100 | SPI | 2,7...5,5 |
| MCP3202-C_ | 12 | 2 | +-2 | 100 | SPI | 2,7...5,5 |
| MCP3204-C_ | 12 | 4 | +-2 | 100 | SPI | 2,7...5,5 |
| MCP3208-C_ | 12 | 8 | +-2 | 100 | SPI | 2,7...5,5 |
| MCP3301-C_ | 13 | 1 | +-2 | 100 | SPI | 2,7...5,5 |
| MCP3302-C_ | 13 | 2 | +-2 | 100 | SPI | 2,7...5,5 |
| MCP3304-B_ | 13 | 4 | +-1 | 100 | SPI | 2,7...5,5 |
| MCP3304-C_ | 13 | 4 | +-2 | 100 | SPI | 2,7...5,5 |
| TC500A_ | 17+Sign | 1 | - | - | 3-Wire | +/-4,5...+/-7,5 |
| TC7109_ | 12+Sign | 1 | - | - | Par./UART | +/-4,5...+/-5,5 |
| TC7116_ | 3,5 Dig | 1 | - | - | LCD | 9 |
| TC7117_ | 3,5 Dig | 1 | - | - | LED | 5 |
| TC14433A_ | 3,5 Dig | 1 | - | - | MUX BCD | +/-4,5...+/-8 |
| Res = Resolution, Ch = Number of Channels, INL = Max. Integral Nonlinearity, fSamp = Max. Sampling Rate at US = 5V, US = Supply Voltage | ||||||
 | ||||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". Articles in bold print in stock, other articles available on request. |
|
| Manufacturer |
 |
| http://www.microchip.com |
|
