Tamiya stiksæt 4,5mm 12-POL/3 Rækker
Varenummer:
99-980
Varekode: EL4.5-12P MULTISTIK
Vægt: 17 g
453 stk.
på lager

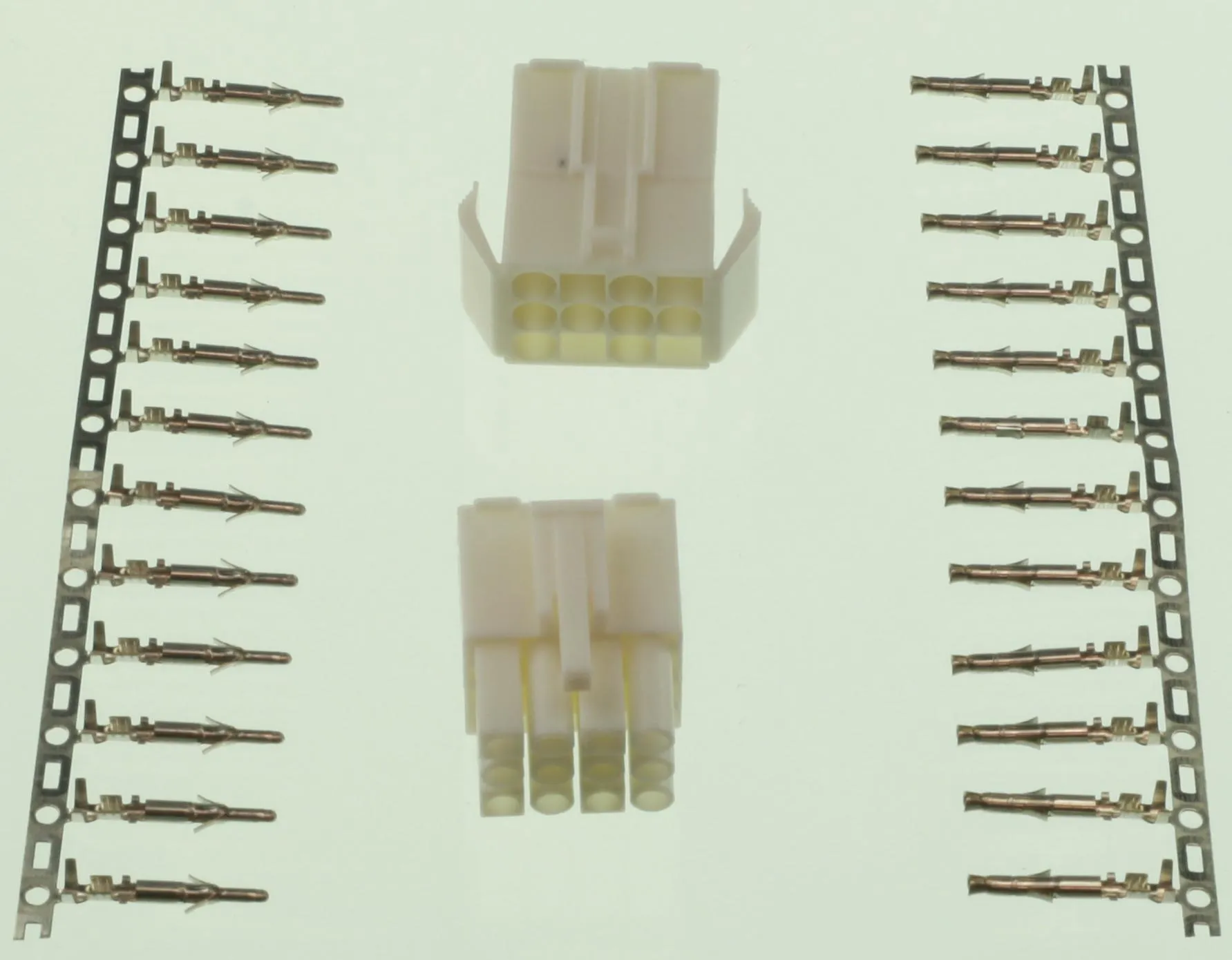

Posen indeholder 1 x han hus, 1 x hun hus, 12 x han indsatser og 12 x hun indsatser til 1 stk. komplet 12-pol stikforbindelse.
Technical parameters:
Spacing: 4.5
Applicable wire: AWG # 26 ~ # 16
Rated voltage: 300V DC / AC (RMS)
Rated current: 6.0 ~ 10.0A
Withstand voltage: 1500V AC (rms)
Working temperature: -25 ~ + 85
Insulation resistance: ≥1500MΩ
Contact resistance: ≤0.015Ω
Spacing: 4.5
Applicable wire: AWG # 26 ~ # 16
Rated voltage: 300V DC / AC (RMS)
Rated current: 6.0 ~ 10.0A
Withstand voltage: 1500V AC (rms)
Working temperature: -25 ~ + 85
Insulation resistance: ≥1500MΩ
Contact resistance: ≤0.015Ω
