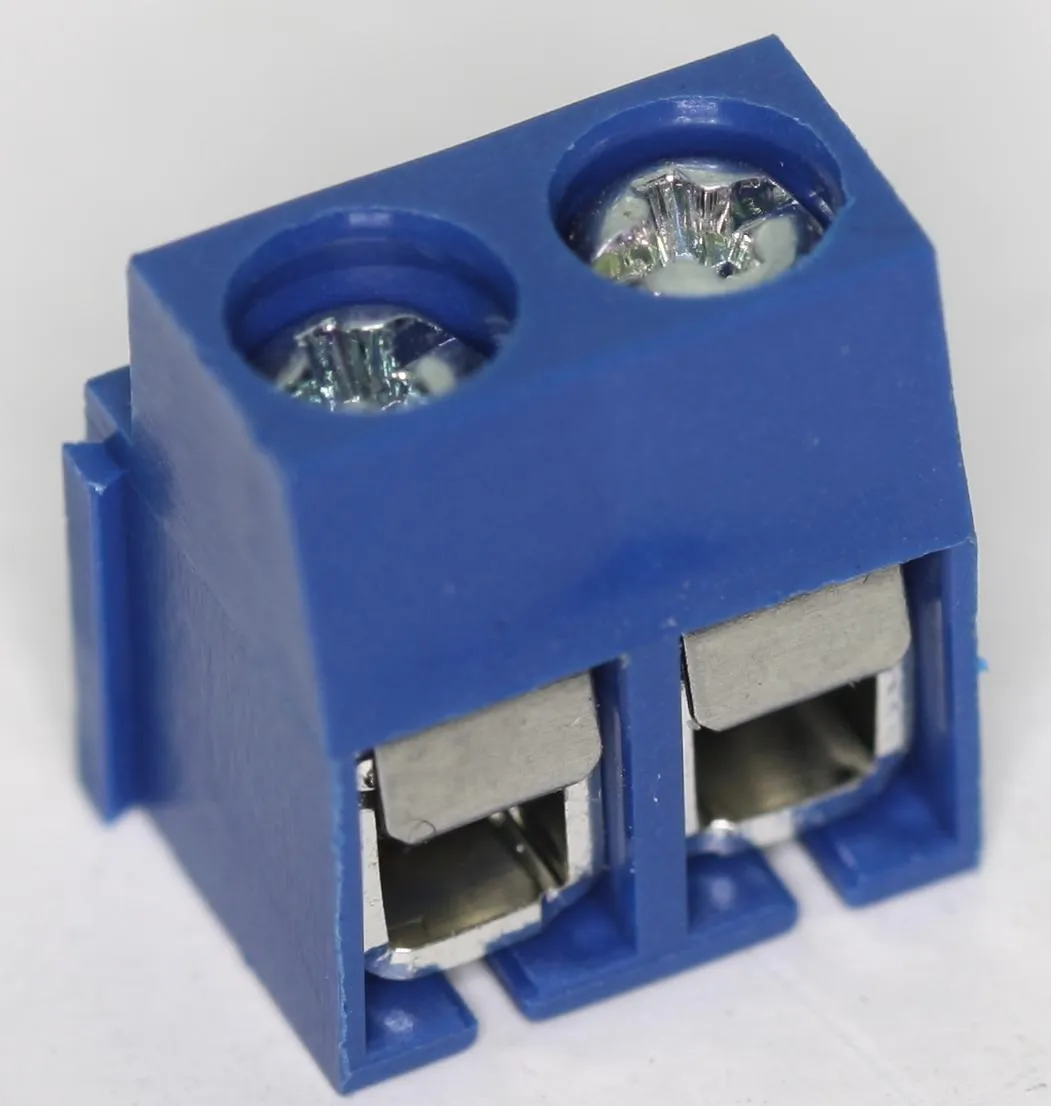

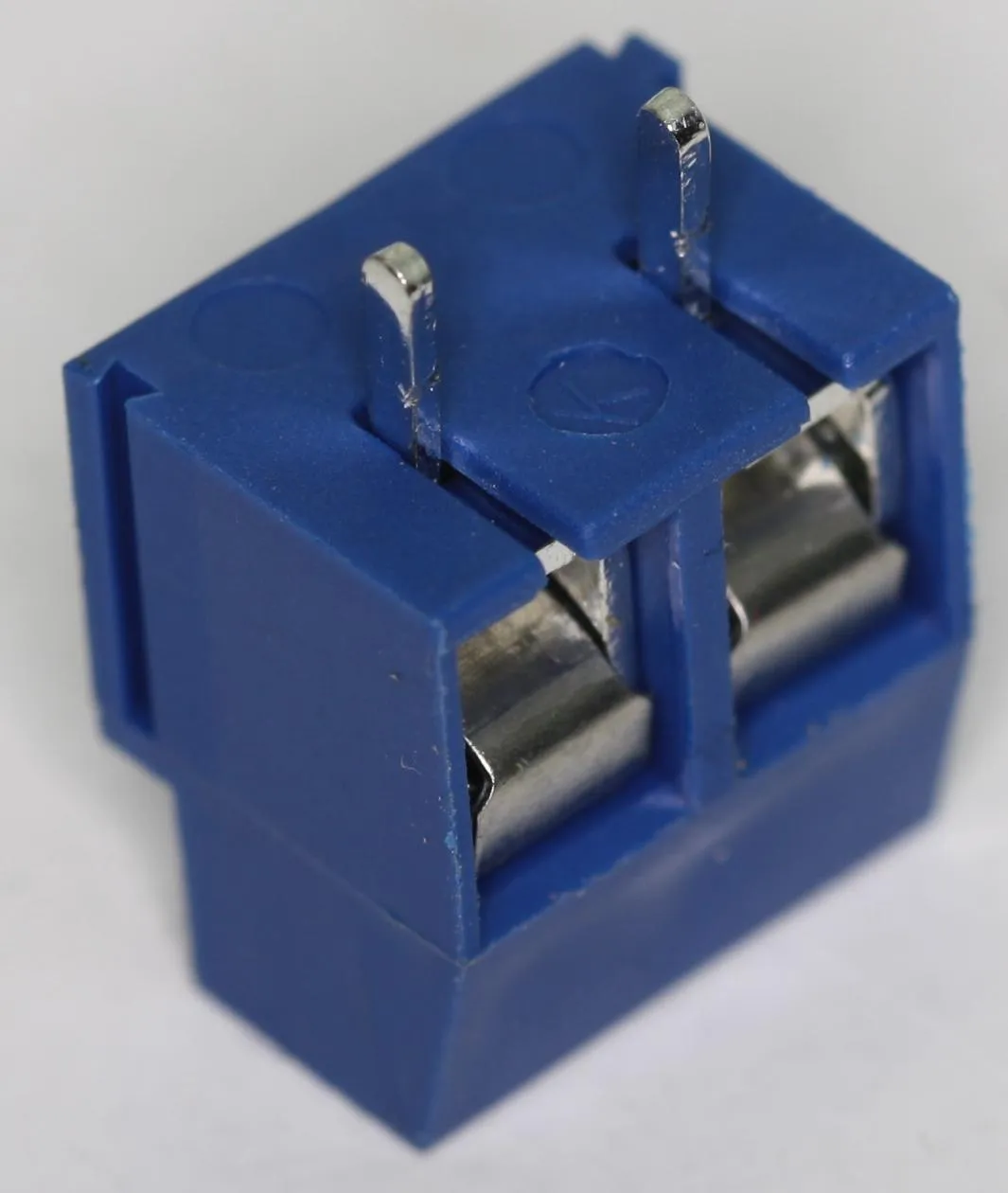

Term.Block 300V 2-Pole Blå
Varenummer:
93-016
Varekode: ARK1102Z
Vægt: 1 g
328 stk.
på lager
Gruppe: F9375
ECE Terminal Blocks
Series: ETB11
Screw Principle with Wire Guard
Conductor: Horizontal
Pitch: 5mm
| Technical Specifications |
 |
|
| Rated Voltage: | 300V |
| Rated Current: | 8A |
| Rated Cross Section: | 0,3...2mm2 |
| Insulation Resistance: | 500MOhm/500V DC |
| Dielectric Strength, Min.: | 2000V AC, 1Min. |
| Insulating Material: | Polyamide 66 |
| Temperature Range: | - 55°C...+125°C |
| Colour: | Blue |
|
|
| Dimensions |
| Part Nr. | L | H | T |
| [mm] | |||
| ARK1102Z | 10,0 | 11,0 | 8,0 |
| ARK1103Z | 15,0 | 11,0 | 8,0 |
|
|||
| Approvals |
  |
