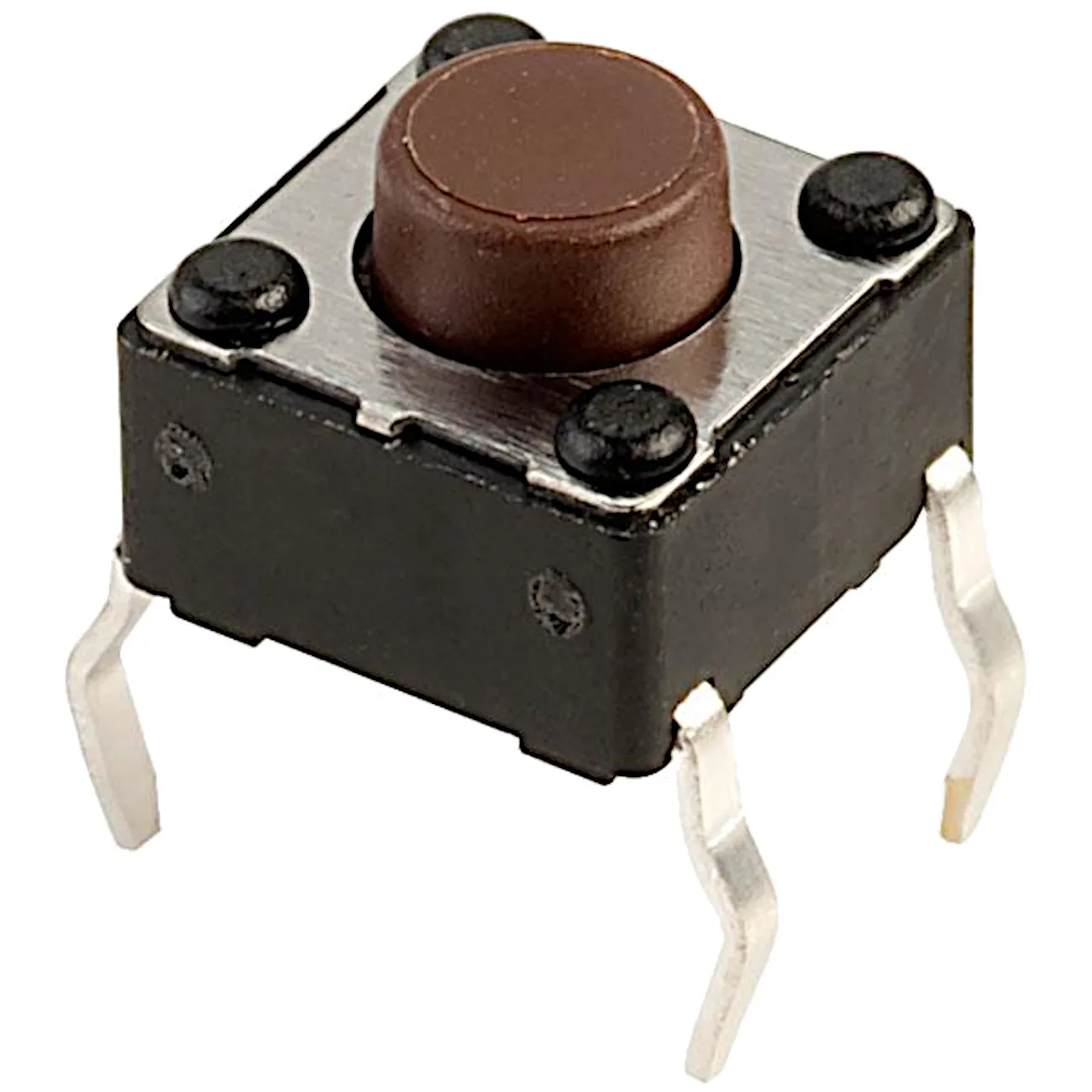

Tact Switch PC Horizontal 5,0mm 1,6N
Varenummer:
88-563
Varekode: DTS62N
Vægt: 0 g
168 stk.
på lager
- TACTILE SWITCH, 5MM, 160G
- Contact Configuration: SPST-NO
- Operating Force: 160gf
- Contact Voltage DC Nom: 12V
- Contact Current Max: 50mA
- Actuation Type: Top
- Switch Terminals: Solder
- Actuator / Cap Colour: Brown
- Bezel Height: 3.5mm
- Contact Current DC Max: 50mA
- Contact Current Rating: 50mA
- Contact Material: Phosphor Bronze
- Contact Resistance: 100mohm
- Contact Voltage DC Max: 12V
- Dielectric Strength VDC: 250V
- External Length / Height: 5mm
- External Width: 6mm
- Height: 5mm
- Insulation Resistance: 10Mohm
- Length: 6mm
- No. of Electrical Operations: 100000
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Pin Diameter: 1.0mm
- Series: MCDTS6
- Switch Operation: SPNO
- Terminal Type: Through Hole
- Travel: 0.25mm
- Voltage Rating V DC: 12V
Inkl. moms
Kr. 5,00
- v/10 – Kr. 3,75
- v/25 – Kr. 2,50
- v/100 – Kr. 1,25
- v/1000 – Kr. 0,75
