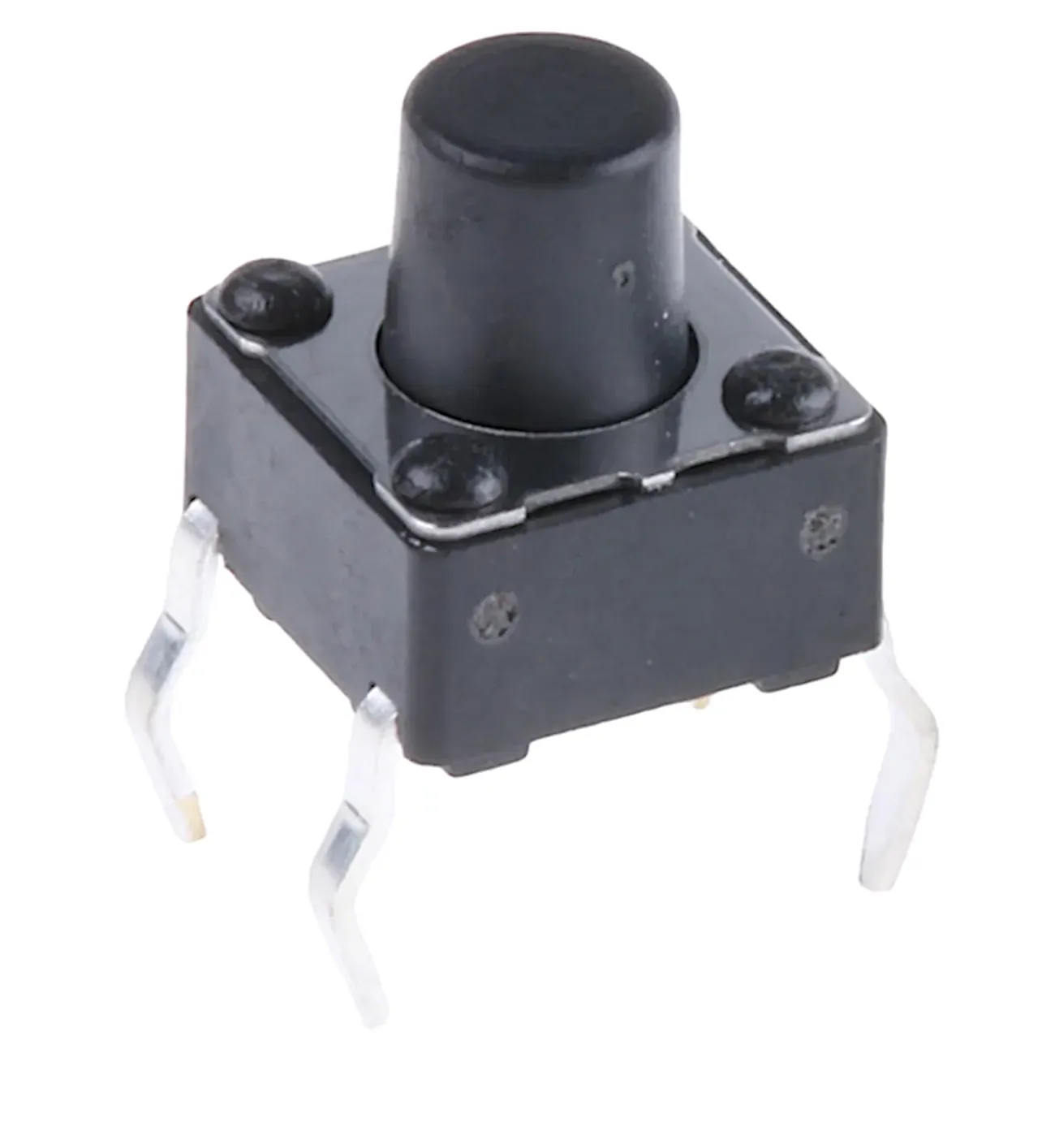

Tact Switch PC Horizontal 7,0mm 1N
Switching Voltage, Max.: 12V DC
Switching Current, Max.: 50mA
Test Voltage, 1min.: 250V AC
Operating Life with Switching Capacity: 200.000 Operations
Contact Resistance, Max.: 100mW
Insulation Resistance, Min.: 100MW/500V DC
Type of Switching: 1 NO Contact
Operating Force: 1N
Operating Path: 0,25mm +0,2, -0,1
Insulation Material: Thermoplastic Nylon, UL94V-0
Contact Surface: Phosphor Bronze, Silver-plated
Solder Temperature and Duration, Max.: 260°C for 5s
Operating Temperature: -25...+70°C
Height: 7mm
- v/10 – Kr. 4,18
- v/25 – Kr. 2,79
- v/100 – Kr. 1,44
- v/1000 – Kr. 0,85
