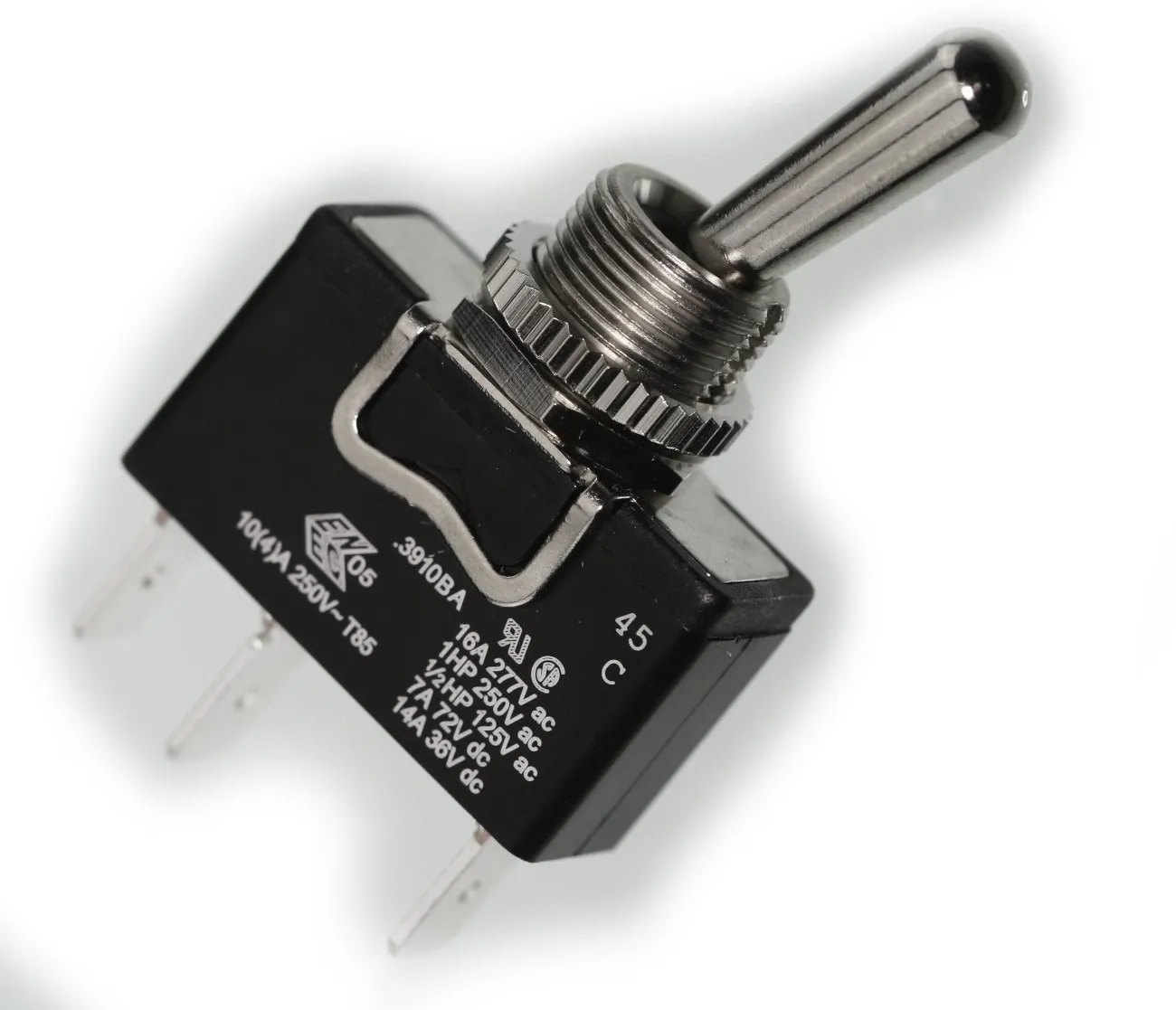

Switch 1-pol 10A ON/ON
Varenummer:
88-417
Varekode: C3910BAAAA
Vægt: 23 g
9 stk.
på lager
- TOGGLE SWITCH
- Contact Configuration: SPDT
- Switch Operation: On-On
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 72V
- Contact Current Max: 10A
- Switch Terminals: Quick Connect
- Actuator Style: Lever
- Switch Mounting: Panel
- SVHC: No SVHC (18-Jun-2010)
- Actuation Type: Lever
- Approval Bodies: ENEC, CSA, UL
- Behind Panel Depth: 31.1mm
- Bush Thread Length: 10mm
- Contact Configuration: SPDT
- Contact Current @ Contact Voltage AC Max: 10A
- Contact Current @ Contact Voltage DC Max: 7A
- Contact Current AC Max: 10A
- Contact Current DC Max: 14A
- Contact Resistance: 100mohm
- Contact Resistance Max: 100mohm
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 72V
- External Depth: 28mm
- External Length / Height: 29.5mm
- External Width: 14mm
- Fixing Hole Diameter: 12.7mm
- Height: 29.5mm
- Insulation Resistance: 20Mohm
- Lever Length: 17.5mm
- Mounting Type: Panel
- No. of Electrical Operations: 10000
- No. of Mechanical Operations: 50000
- Operating Temperature Max: 85°C
- Operating Temperature Min: 0°C
Inkl. moms
Kr. 69,00
- v/10 – Kr. 59,00
- v/100 – Kr. 53,75
