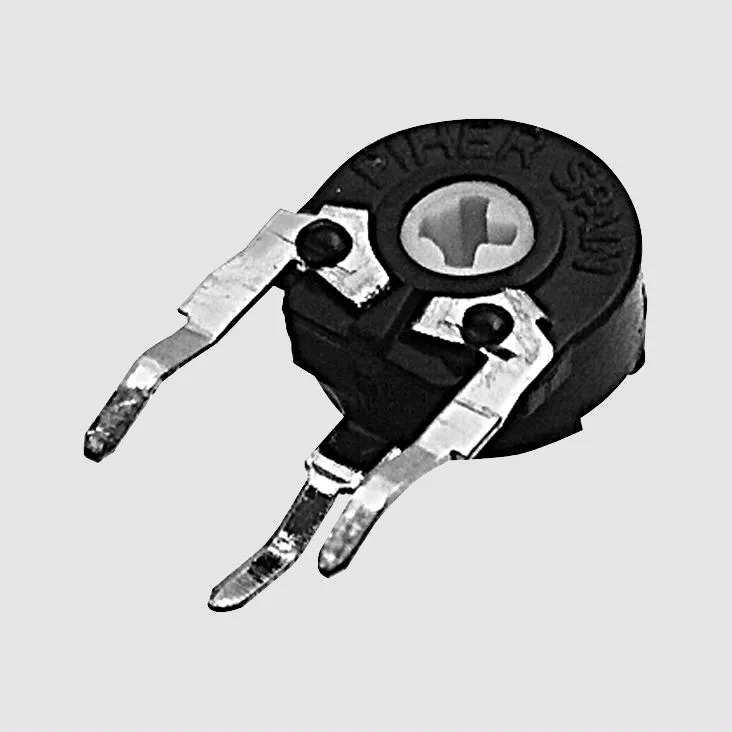

Trimmer Side Adjust P2,5/5 250R
Varenummer:
84-600
Varekode: PT6HE250
18 stk.
på lager
Features
| • Polyester substrate • Sealed enclosure, dust and colophony proof, protected against harmful influences • Double wiper, dual support • Excellent stability, multipurpose applications as variable film potentiometer • Wiper positioned at 50% or fully clockwise • Resistant against cleaning agents, ultrasonic cleaning possible |
 |
| Electrical Specifications |
|
|
| Taper: | Linear |
| Power Rating (TU = 40°C): | 0,1W |
| Operating Voltage, Max.: | 100V DC |
| Resistance Tolerance | |
| to incl. 1MOhm: | ±20% |
| from 1MOhm: | ±30% |
| Temperature Range: | -25...+70°C |
|
|
| Mechanical Specifications |
|
|
| Rotation | |
| Mechanical: | 235 ±5° |
| Electrical: | 220 ±20° |
| Torque: | 0,2...2Ncm |
| Stop Torque: | 4Ncm |
|
|
| Dimensions |
|
|
| Diameter: | 6,3mm |
| Depth: | 3,3mm |
|
|
Inkl. moms
Kr. 5,00
- v/10 – Kr. 3,75
