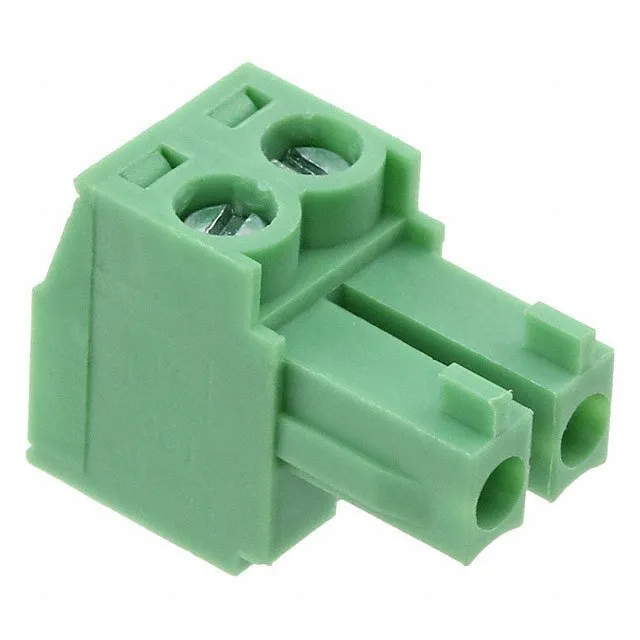

TBL/361 Pitch 3.81mm 2P
Varenummer:
145-187
Varekode: 15EDGK3.81-02P
Vægt: 8 g
48 stk.
på lager
|
Manufacturer
|
DEGSON ELECTRONICS |
|
Type of connector
|
pluggable terminal block | |
|
Connector
|
plug | |
|
Kind of connector
|
female | |
|
Current rating
|
7A | |
|
Rated voltage
For products in the Cables and Wires category, a digit/digit number indicates:
Rated volage U0/U where: U0 = cable nominal voltage between the conductor and the metal covering or earth U = cable nominal voltage between the phase conductors |
250V | |
|
Spatial orientation
Information about relative position of each cable, terminals or PCB entry
|
straight | |
|
Mechanical mounting
|
for cable | |
|
Electrical mounting
|
cage clamp, screw terminal | |
|
Contact material
|
phosphor bronze | |
|
Colour
|
green | |
|
Flammability rating
ECE R-118:
This regulation applies to fire testing of materials used in the interiors of motor vehicles, such as upholstery, floor coverings, etc. UL94: This standard is used to assess the flammability of plastic materials used in various industries, including the electronics, automotive and construction sectors. |
UL94V-0 | |
|
Body material
|
polyamide 66 | |
|
Wire size
|
28AWG...16AWG | |
|
Connector pinout layout
|
1x2 | |
|
Wire cross-section
|
0.5...1.5mm2 | |
|
Contacts pitch
|
3.81mm | |
|
Number of ways
|
2 | |
|
Locking system
|
friction lock | |
|
Conform to the norm
|
CE UL VDE | |
|
Number of terminals
|
2 | |
|
Operating temperature
|
-40...105°C |
691361300002
Inkl. moms
Kr. 20,00
- v/10 – Kr. 17,50
- v/50 – Kr. 16,25
- v/100 – Kr. 15,77
