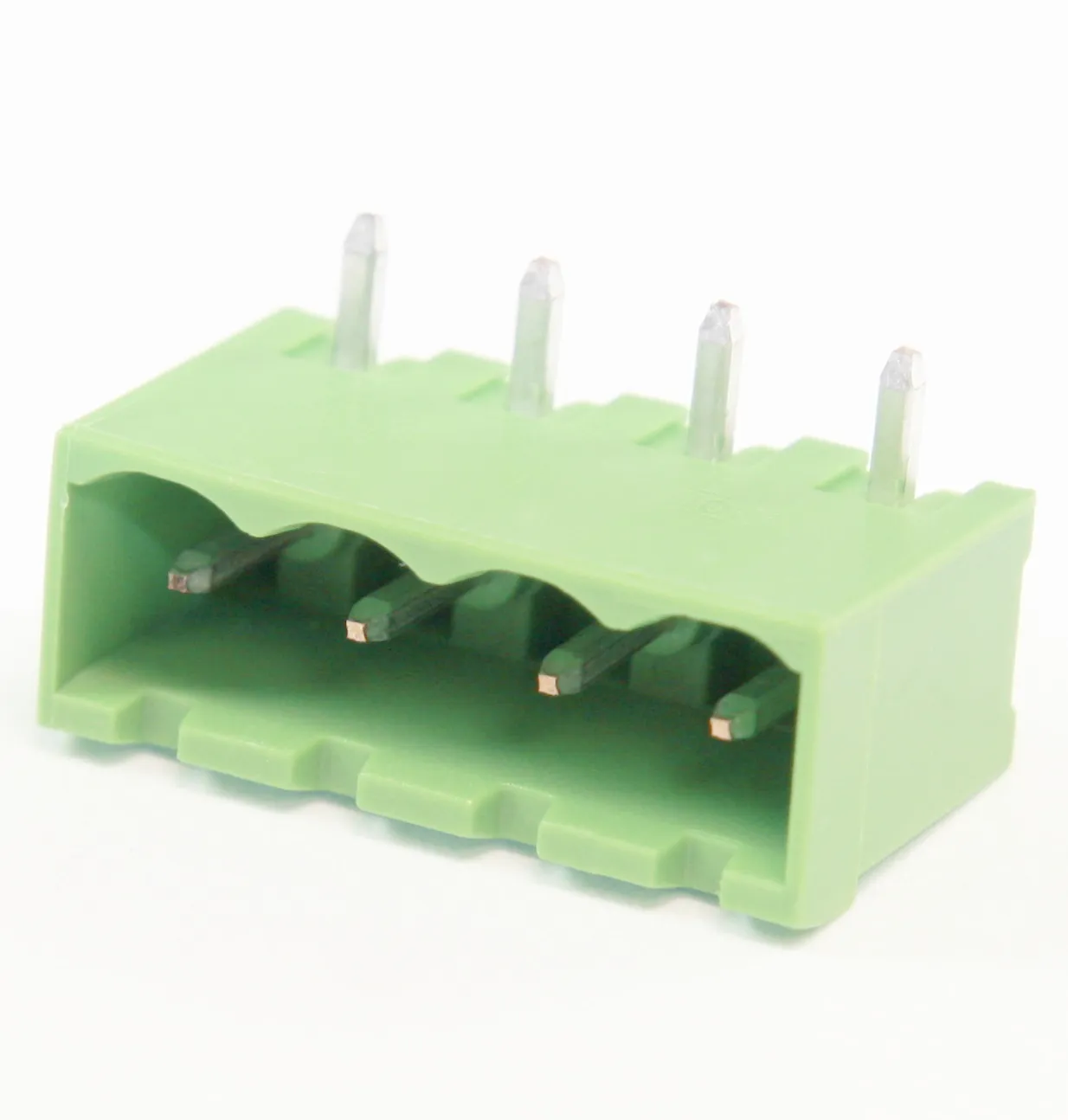

Terminal Block 320V 4-Pole Green

Varenummer: 104-453
Varekode: CPM5,08-4SQ
Vægt: 1 g
0 stk. på lager
Vis lignende produkter i kategorien "4-POLET"
Technical Specifications
Rated Voltage:
 320V
Rated Current:
 12A
Insulating Material:
 PA
Temperature Range:
 -30...+105°C
Flammability Class:
 UL94V-0
Colour:
 Green

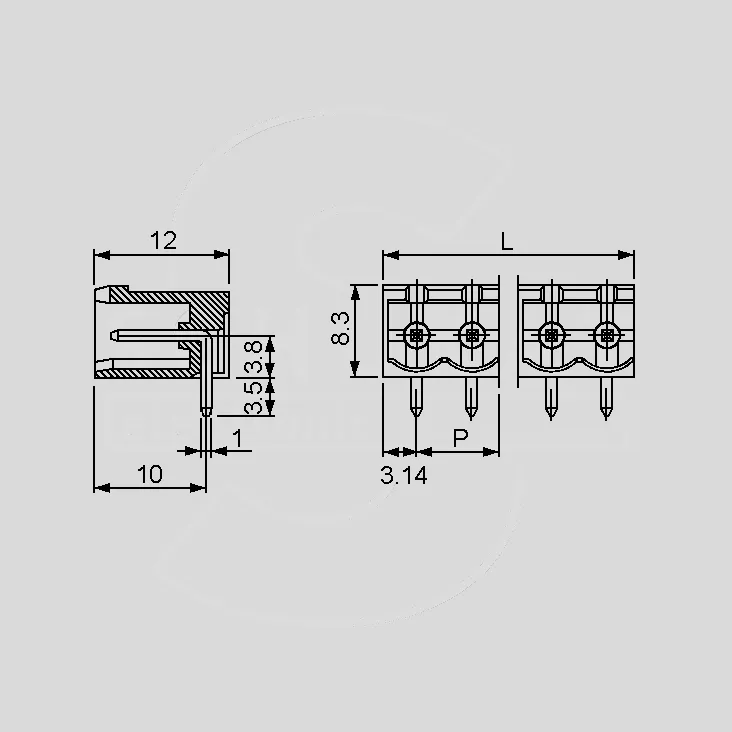

Dimensions
Part Nr.
 L
 P

  [mm]
 [mm]

CPM5,08-2SQ 11,36
 5,08

CPM5,08-3SQ 16,44
 5,08

CPM5,08-4SQ 21,52
 5,08

CPM5,08-5SQ 26,60
 5,08

CPM5,08-6SQ 31,68
 5,08

Approvals
UL1059, C22.2 no. 158
Manufacturer

http://www.stelvio.it
Inkl. moms
v/10 Kr. 5,06
  • v/25 – Kr. 4,30
  • v/100 – Kr. 3,80
  • v/1000 – Kr. 3,54
