Terminal Block 320V 5-Pole Green

Varenummer: 104-439
Varekode: MRT3P5,08-5VE
Vægt: 10 g
0 stk. på lager
Vis lignende produkter i kategorien ">=5-POLET"
Technical Specifications
Rated Voltage:
 320V
Rated Current:
 12A
Rated Cross Section Single Stranded Wire:
 0,5...2,5mm2
Rated Cross Section Fine Stranded Wire:
 0,5...2,5mm2
Stripped Length:
 7mm
Insulating Material:
 PA
Temperature Range:
 -30°C...+120°C
Flammability Class:
 UL94V-0
Colour:
 Green

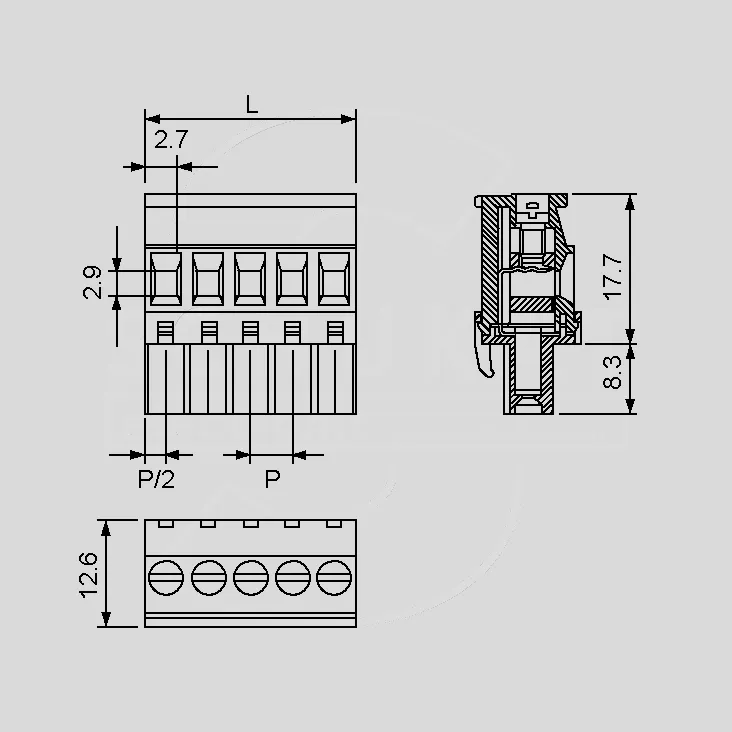

Dimensions
Part Nr.
 L
 P

  [mm]
 [mm]

MRT3P5,08-2VE 10,16
 5,08

MRT3P5,08-3VE 15,24
 5,08

MRT3P5,08-4VE 20,32
 5,08

MRT3P5,08-5VE 25,40
 5,08

MRT3P5,08-6VE 30,40
 5,08

Approvals
UL1059, C22.2 no. 158
Manufacturer

http://www.stelvio.it
Inkl. moms
v/10 Kr. 10,60
  • v/25 – Kr. 9,01
  • v/100 – Kr. 7,95
