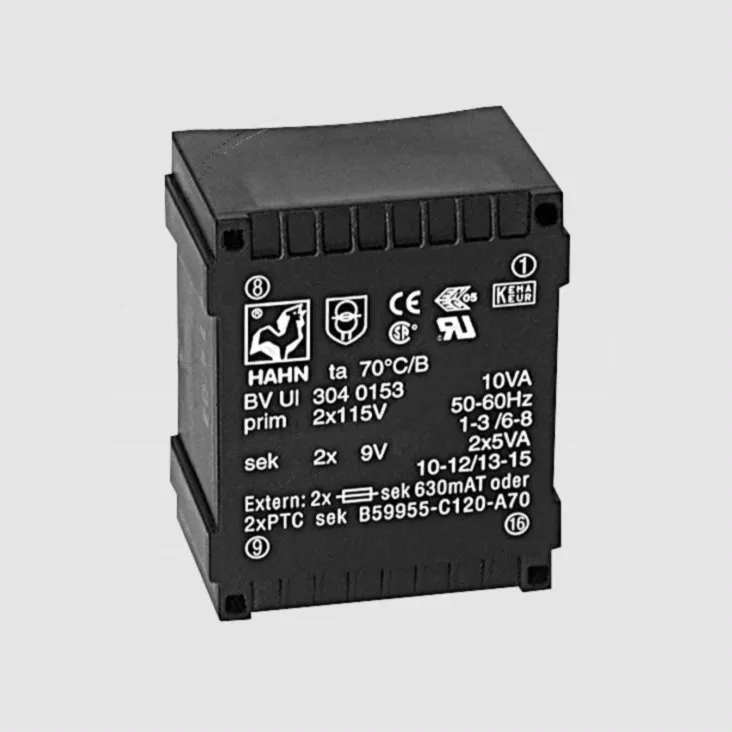

Transformer 16VA 2x115V 2x21V 2x380mA
Varenummer:
103-253
Varekode: BVUI3050152
Vægt: 386 g
0 stk.
på lager
Specifikationer
| Produkt | transformator |
|---|---|
| Strøm, max. (sekundærvikling) | 2x380mA |
| Sekundær | 2x21V |
| Primær | 2x115V |
| AC Effekt, max. | 16 VA |
Gruppe:
D7713
HAHN Flat Transformers
Core: UI30
Non Short-Circuit Proof
Output: 6...16VA
Input Voltage: 2x115V
HAHN Flat Transformers
Core: UI30
Non Short-Circuit Proof
Output: 6...16VA
Input Voltage: 2x115V
| Construction |
| Vacuum encapsulated, bobbin with two chambers Leads through soldering pins to accommodate PCB mounting Designed to match VDE 0570 and EN61558 regulations Fully tested at primary and secondary voltage of 6000V, leakage and sparking distance in air is at least 10mm Types with double primary and secondary windings (2x115V) suitable for application in 115V as well as 230V power supplies |
 |
| Electrical Specifications |
| Part Nr. | P1) | Secondary | Secondary | No-Load |
| Voltage | Current2) | Voltage | ||
| [VA] | [V] | [mA] | [V] | |
| BVUI3030158 | 6 | 2x9 | 2x334 | 12,8 |
| BVUI3030145 | 6 | 2x12 | 2x250 | 17,2 |
| BVUI3030163 | 6 | 2x15 | 2x200 | 21,8 |
| BVUI3030143 | 6 | 2x18 | 2x166 | 26,0 |
| BVUI3030170 | 6 | 2x21 | 2x143 | 29,7 |
| BVUI3040155 | 10 | 2x6 | 2x833 | 8,7 |
| BVUI3040129 | 10 | 2x7,5 | 2x667 | 10,0 |
| BVUI3040153 | 10 | 2x9 | 2x555 | 12,4 |
| BVUI3040154 | 10 | 2x12 | 2x416 | 16,0 |
| BVUI3040136 | 10 | 2x15 | 2x333 | 19,7 |
| BVUI3040159 | 10 | 2x18 | 2x277 | 23,3 |
| BVUI3040173 | 10 | 2x21 | 2x238 | 27,2 |
| BVUI3050147 | 16 | 2x6 | 2x1330 | 7,5 |
| BVUI3050148 | 16 | 2x9 | 2x888 | 10,9 |
| BVUI3050149 | 16 | 2x12 | 2x666 | 14,63 |
| BVUI3050150 | 16 | 2x15 | 2x533 | 18,0 |
| BVUI3050151 | 16 | 2x18 | 2x444 | 21,5 |
| BVUI3050152 | 16 | 2x21 | 2x380 | 25,0 |
| P = Power, 1) Primary Voltage at 230V, 2) Secondary Voltage per Winding ±5% | ||||
| ||||

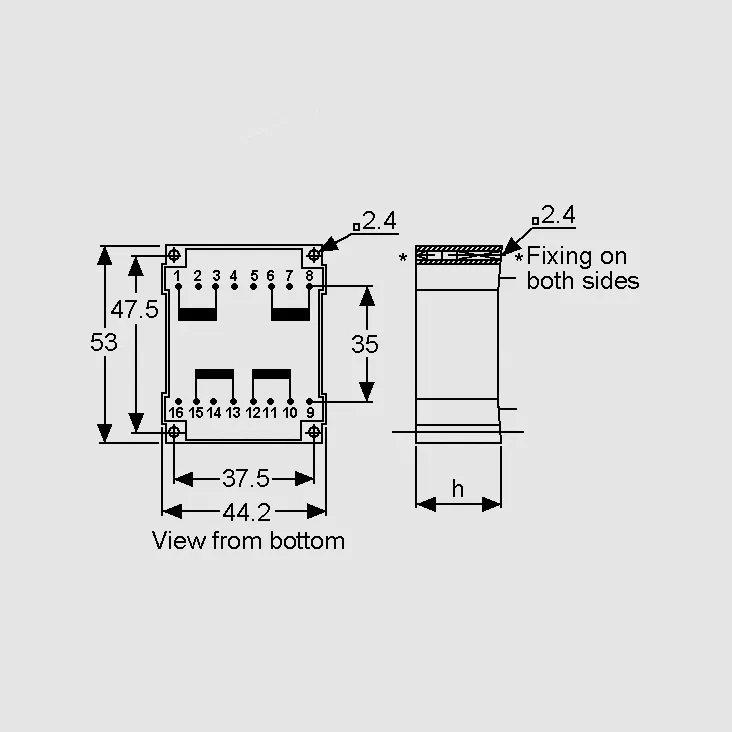

| Size |
| Performance | Height h | Weight | |
| [mm] | [g] | ||
| 6VA | 22,8 | 180 | |
| 10VA | 28,8 | 260 | |
| 16VA | 37,6 | 370 | |
| |||
| Approvals |
    05 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece Articles in bold print in stock, other articles of 100 pieces upwards available on request, delivery time approx. 5 weeks. |
|
| Manufacturer |
HAHN GmbH & Co. KG |
| http://www.hahn-trafo.com |
|
